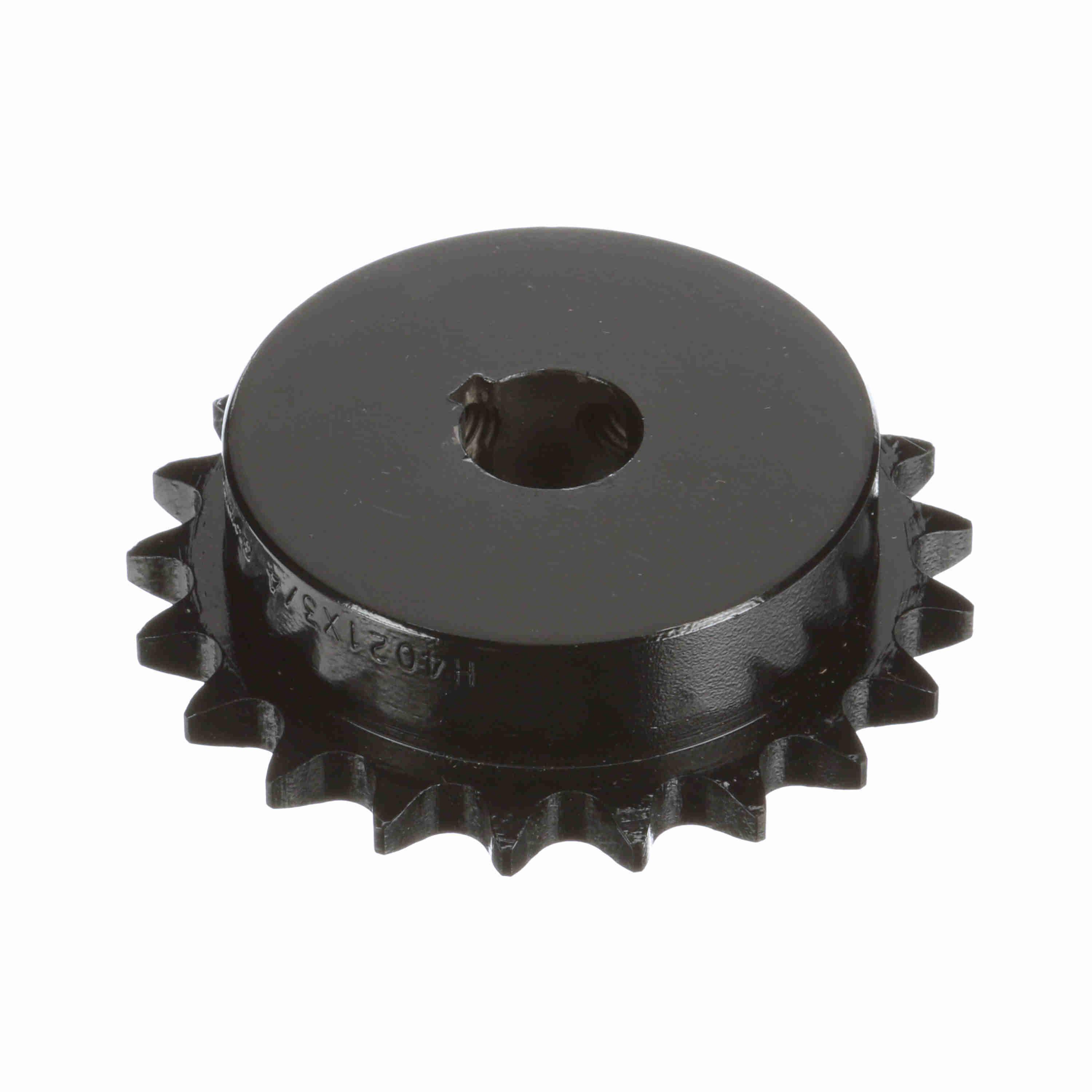

Browning® 1128388 Single Strand Finished Bore Type 1 Roller Chain Sprocket With Hardened Teeth and Keyway, 3/4 in Dia Bore, 3.62 in OD, #40 Chain, 21 Teeth, 1/2 in Pitch, Steel
Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289293315
-
Manufacturer Part Number1128388
-
CountryUSA
-
Pitch Diameter3.355 in
-
MaterialSteel
-
Chain Size#40
-
TypeSingle Strand Finished Bore Type 1
-
Hub Diameter2.766 in
-
Number of Teeth21
-
Keyway Size3/16 x 3/32 in
-
Outside Diameter3.62 in
-
Length Through Bore1 in
-
Bore Diameter3/4 in
- In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
- For use with 1/2 in pitch ANSI chain
- Additional setscrew at 90 deg to keyway
- This Product has the Browning Exclusive Twice the Life Guarantee
- Finished bored sprockets are furnished with Standard Keyway on Centerline of Tooth and Hollow Head Setscrew over Keyway
-
Alternative Part NumberH4021X3/4
-
UNSPSC31171901
-
Package DescriptionEACH
-
Warranty1 Year
-
