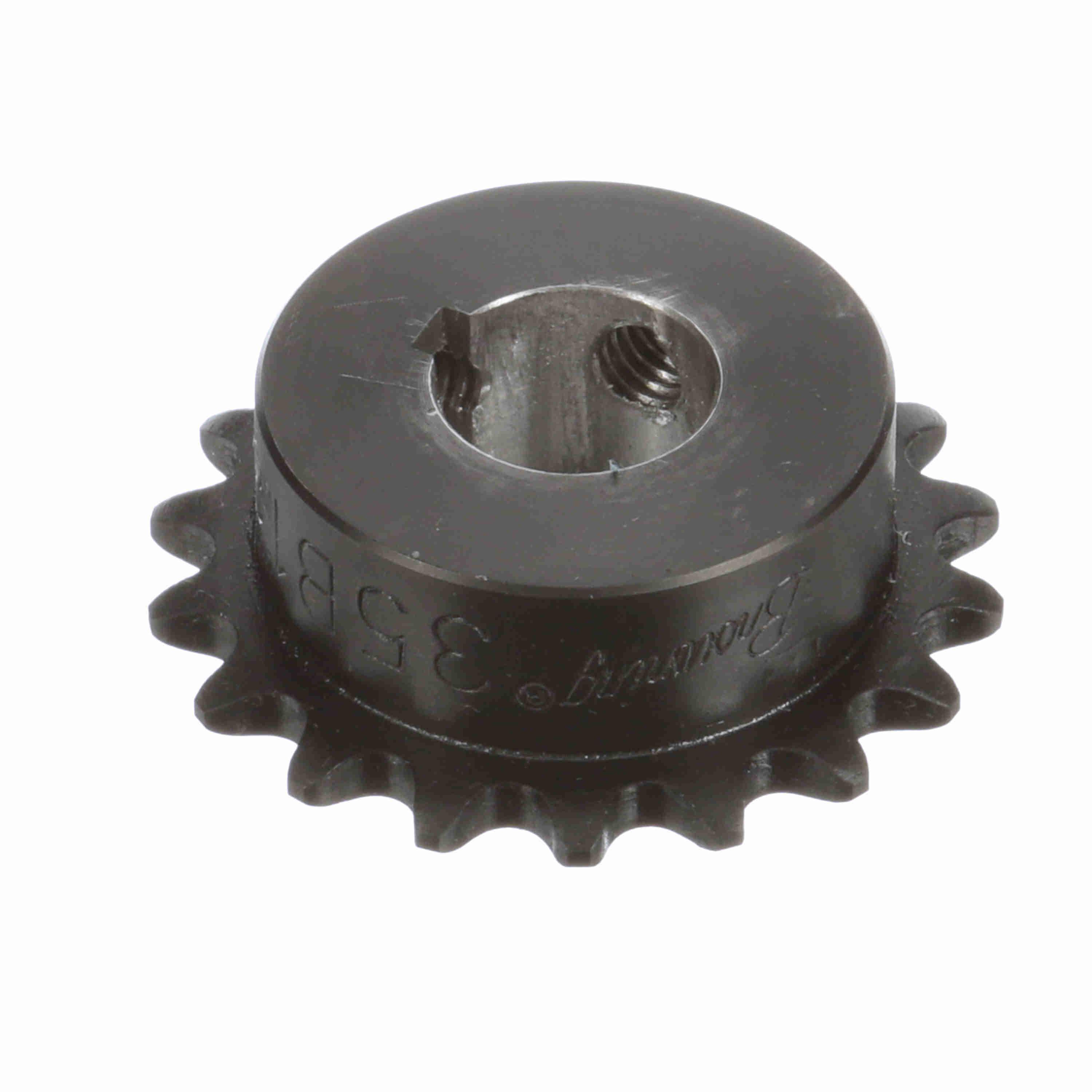

Browning® 1127802 Single Strand Finished Bore Type 1 Roller Chain Sprocket With Hardened Teeth and Keyway, 3/4 in Dia Bore, 2.35 in OD, #35 Chain, 18 Teeth, 3/8 in Pitch, Steel
Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289252602
-
Manufacturer Part Number1127802
-
CountryUSA
-
Pitch Diameter2.16 in
-
MaterialSteel
-
Chain Size#35
-
TypeSingle Strand Finished Bore Type 1
-
Hub Diameter1.766 in
-
Number of Teeth18
-
Keyway Size3/16 x 3/32 in
-
Outside Diameter2.35 in
-
Length Through Bore0.766 in
-
Bore Diameter3/4 in
- This Product has the Browning Exclusive Twice the Life Guarantee
-
Alternative Part NumberH3518X3/4
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
