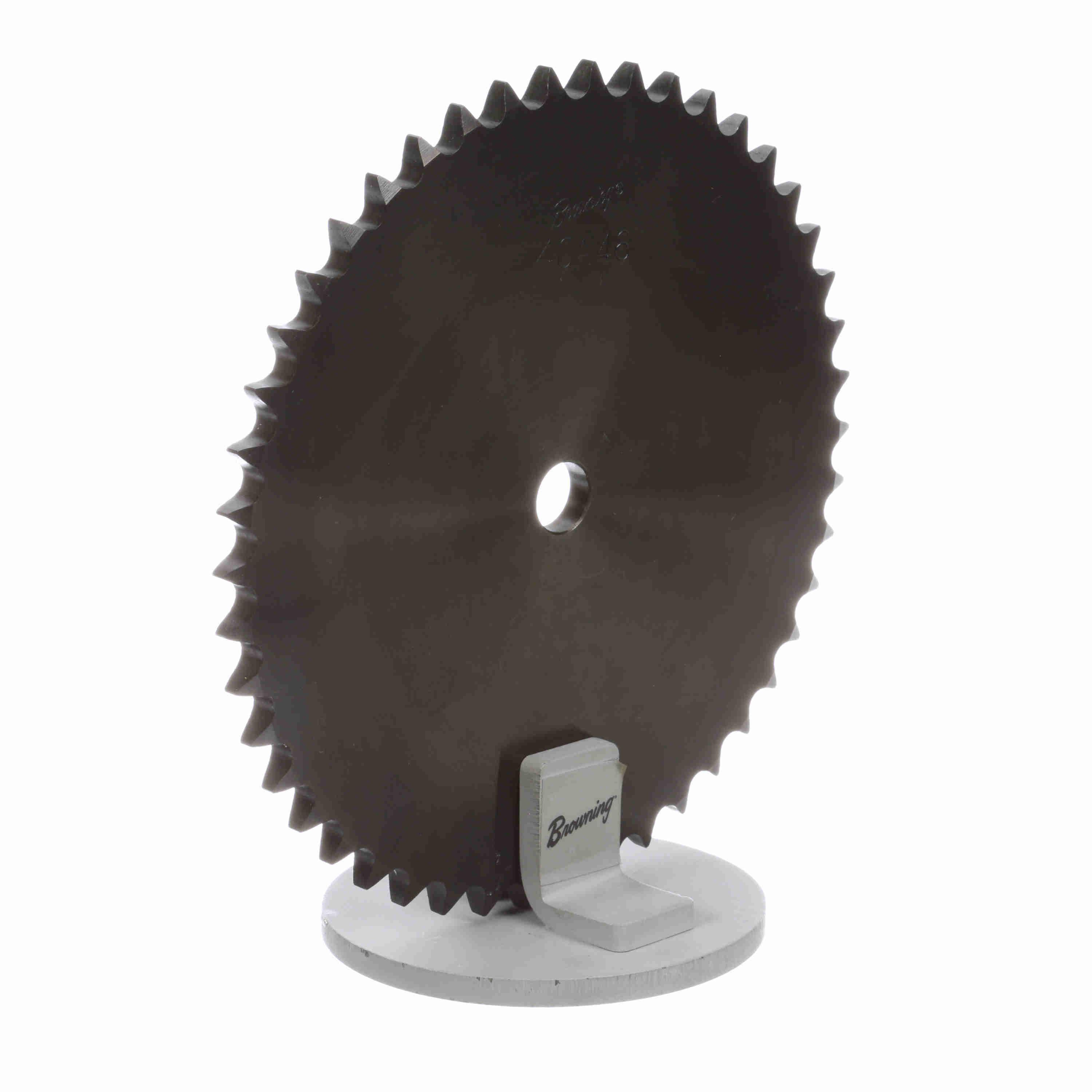

Browning® 1108497 Single Strand Plate Type A Roller Chain Sprocket With Hardened Teeth, 23/32 in Dia Bore, 7.61 in OD, #40 Chain, 46 Teeth, 1/2 in Pitch, Steel
Browning® 1108497 Single Strand Plate Type A Roller Chain Sprocket With Hardened Teeth, 23/32 in Dia Bore, 7.61 in OD, #40 Chain, 46 Teeth, 1/2 in Pitch, Steel
-
BrandBrowning®
-
UPC662289317837
-
Manufacturer Part Number1108497
-
CountryUSA
-
Pitch1/2 in
-
Pitch Diameter7.327 in
-
MaterialSteel
-
Chain Size#40
-
TypeSingle Strand Plate Type A
-
Number of Teeth46
-
Outside Diameter7.61 in
-
Length Through Bore0.284 in
-
Bore Diameter23/32 in
- Solid plate
- No hub projection
- High quality, high carbon steel
- Browning® offers type A plate steel sprockets in single strands
- Lasts longer than sprockets made from low carbon steel
- For use with 1/2 in pitch ANSI chain
-
Alternative Part Number40A46
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
Specification Sheet
-
Warranty Information
