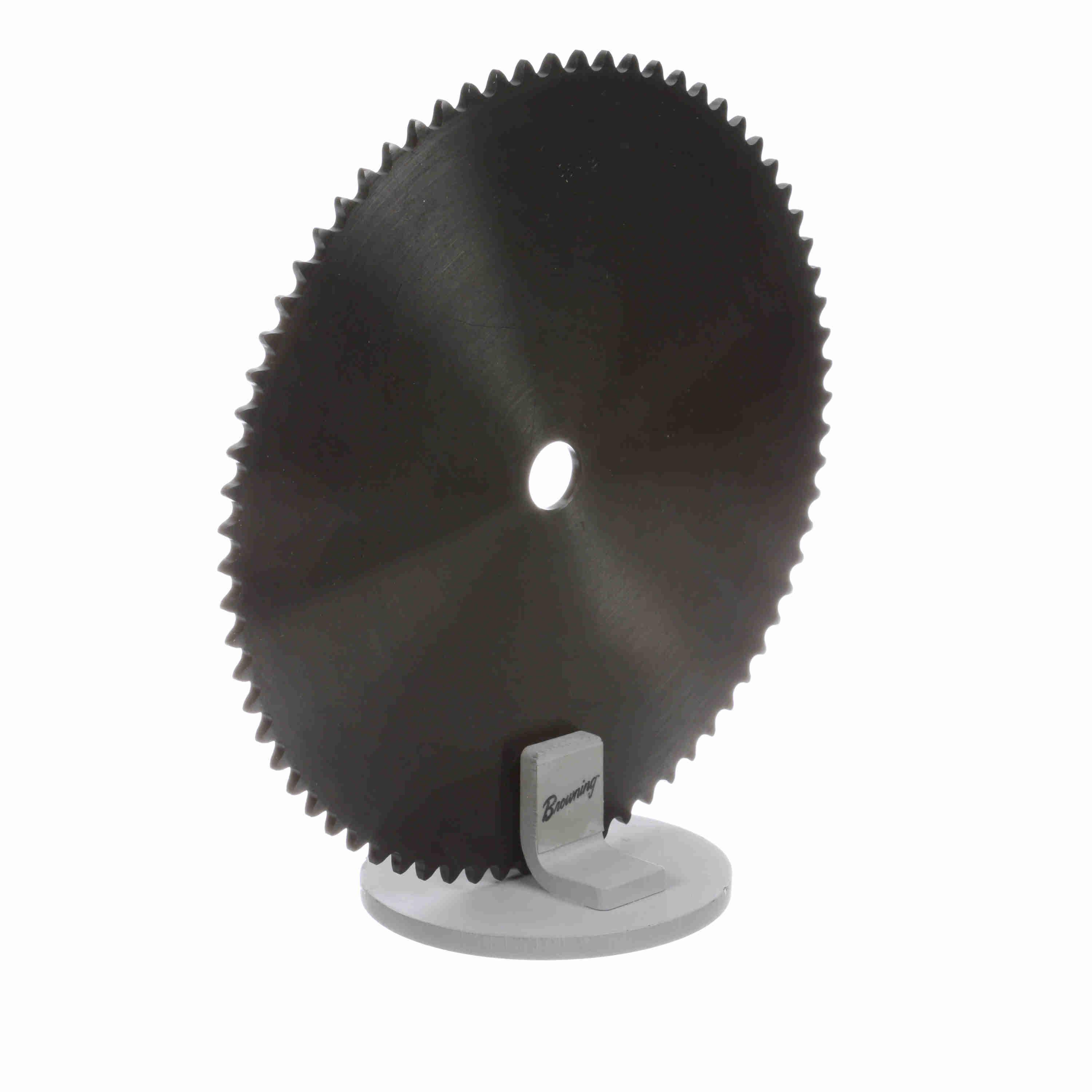

Browning® 1107879 Single Strand Plate Type A Roller Chain Sprocket, 23/32 in Dia Bore, 8.81 in OD, #35 Chain, 72 Teeth, 3/8 in Pitch, Steel
Browning® 1107879 Single Strand Plate Type A Roller Chain Sprocket, 23/32 in Dia Bore, 8.81 in OD, #35 Chain, 72 Teeth, 3/8 in Pitch, Steel
-
BrandBrowning®
-
UPC662289230617
-
Manufacturer Part Number1107879
-
CountryUSA
-
Pitch3/8 in
-
Pitch Diameter8.597 in
-
MaterialSteel
-
Chain Size#35
-
TypeSingle Strand Plate Type A
-
Number of Teeth72
-
Outside Diameter8.81 in
-
Length Through Bore0.169 in
-
Bore Diameter23/32 in
- Solid plate
- No hub projection
- High quality, high carbon steel
- Browning® offers type A plate steel sprockets in single strands
- Lasts longer than sprockets made from low carbon steel
- For use with 3/8 in pitch ANSI chain
-
Alternative Part Number35A72
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
Specification Sheet
-
Warranty Information
