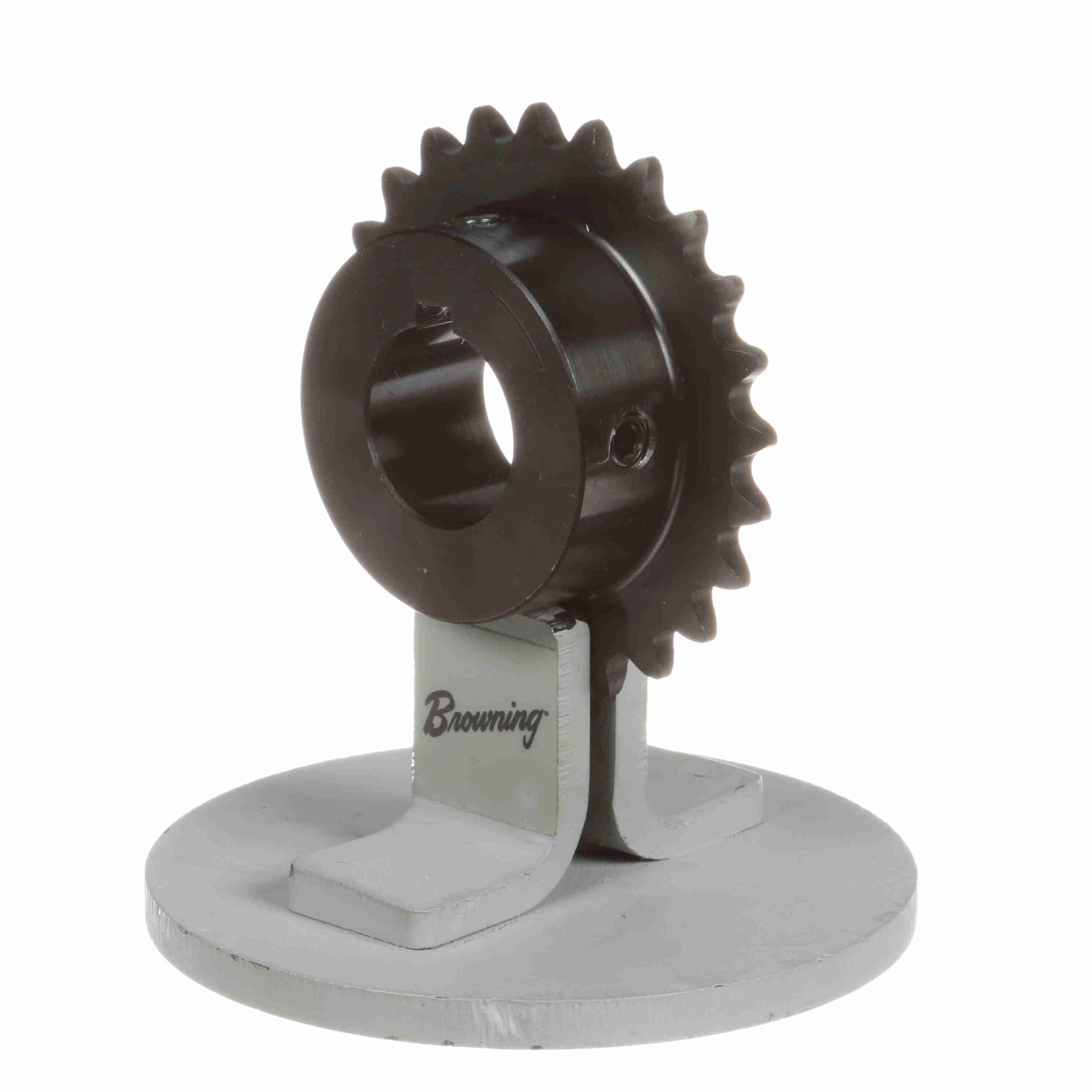

Browning® 1127869 Single Strand Finished Bore Type 1 Roller Chain Sprocket With Hardened Teeth and Keyway, 1 in Dia Bore, 3.07 in OD, #35 Chain, 24 Teeth, 3/8 in Pitch, Steel
Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289152773
-
Manufacturer Part Number1127869
-
CountryUSA
-
Pitch Diameter2.873 in
-
MaterialSteel
-
Chain Size#35
-
TypeSingle Strand Finished Bore Type 1
-
Hub Diameter2.453 in
-
Number of Teeth24
-
Outside Diameter3.07 in
-
Length Through Bore7/8 in
-
Bore Diameter1 in
- This Product has the Browning Exclusive Twice the Life Guarantee
-
Alternative Part NumberH3524X1
-
UNSPSC31171901
-
Package DescriptionEACH
-
Warranty1 Year
-
