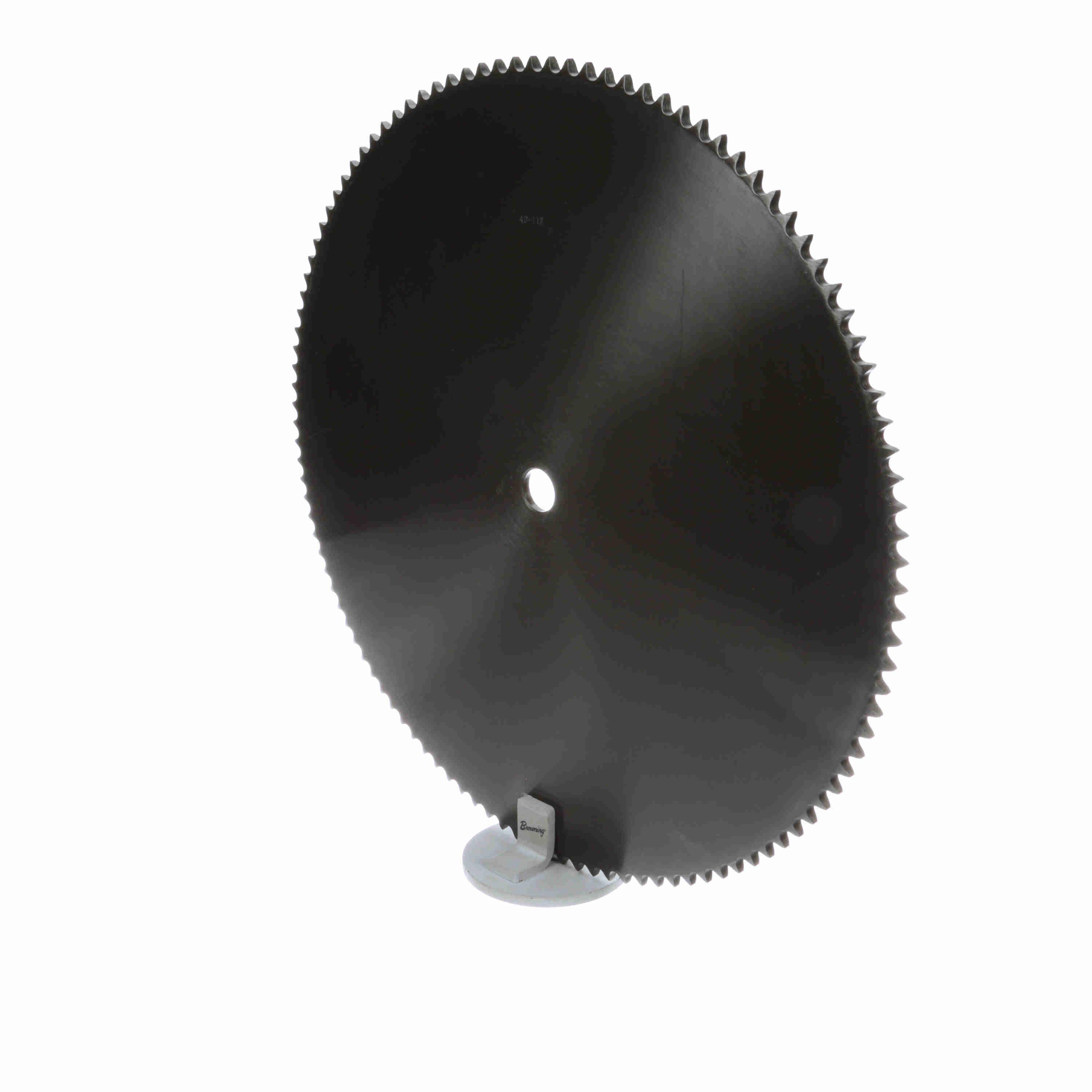

Browning® 1108695 Single Strand Plate Type A Roller Chain Sprocket, 15/16 in Dia Bore, 18.12 in OD, #40 Chain, 112 Teeth, 1/2 in Pitch, Steel
Browning® 1108695 Single Strand Plate Type A Roller Chain Sprocket, 15/16 in Dia Bore, 18.12 in OD, #40 Chain, 112 Teeth, 1/2 in Pitch, Steel
-
BrandBrowning®
-
UPC662289151318
-
Manufacturer Part Number1108695
-
CountryUSA
-
Pitch1/2 in
-
Pitch Diameter17.828 in
-
MaterialSteel
-
Chain Size#40
-
TypeSingle Strand Plate Type A
-
Number of Teeth112
-
Outside Diameter18.12 in
-
Length Through Bore0.284 in
-
Bore Diameter15/16 in
- Solid plate
- No hub projection
- High quality, high carbon steel
- Browning® offers type A plate steel sprockets in single strands
- Lasts longer than sprockets made from low carbon steel
- For use with 1/2 in pitch ANSI chain
-
Alternative Part Number40A112
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
