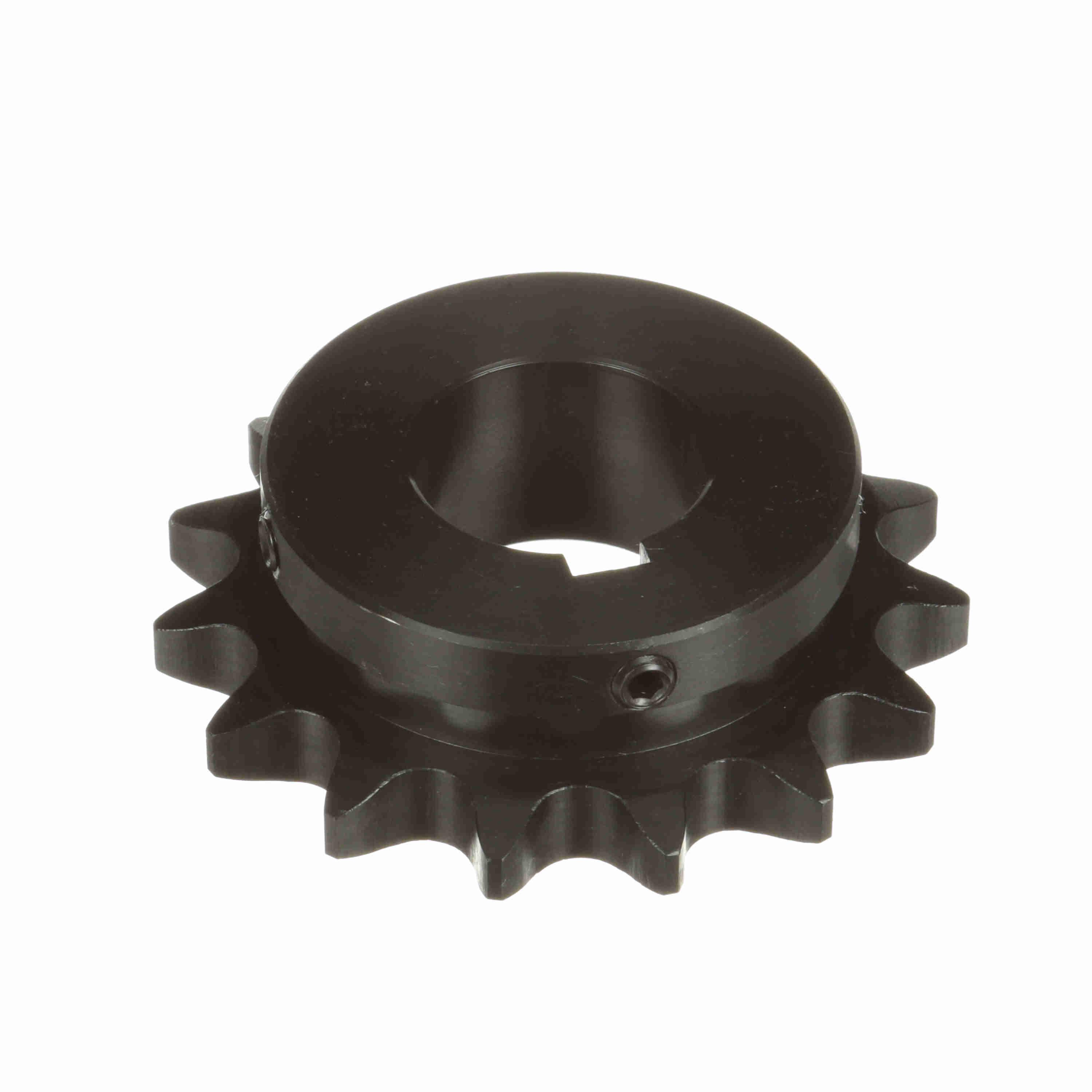

Browning® 1129303 Single Strand Finished Bore Type 1 Roller Chain Sprocket With Hardened Teeth and Keyway, 1-7/16 in Dia Bore, 3.98 in OD, #60 Chain, 15 Teeth, 3/4 in Pitch, Steel
Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289244232
-
Manufacturer Part Number1129303
-
CountryUSA
-
Pitch Diameter3.607 in
-
MaterialSteel
-
Chain Size#60
-
TypeSingle Strand Finished Bore Type 1
-
Hub Diameter2.891 in
-
Number of Teeth15
-
Keyway Size3/16 x 3/32 in
-
Outside Diameter3.98 in
-
Length Through Bore1-1/4 in
-
Bore Diameter1-7/16 in
- In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
- For use with 3/4 in pitch ANSI chain
- Additional setscrew at 90 deg to keyway
- This Product has the Browning Exclusive Twice the Life Guarantee
- Finished bored sprockets are furnished with Standard Keyway on Centerline of Tooth and Hollow Head Setscrew over Keyway
-
Alternative Part NumberH6015X 1 7/16
-
UNSPSC31171901
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Warranty Information
