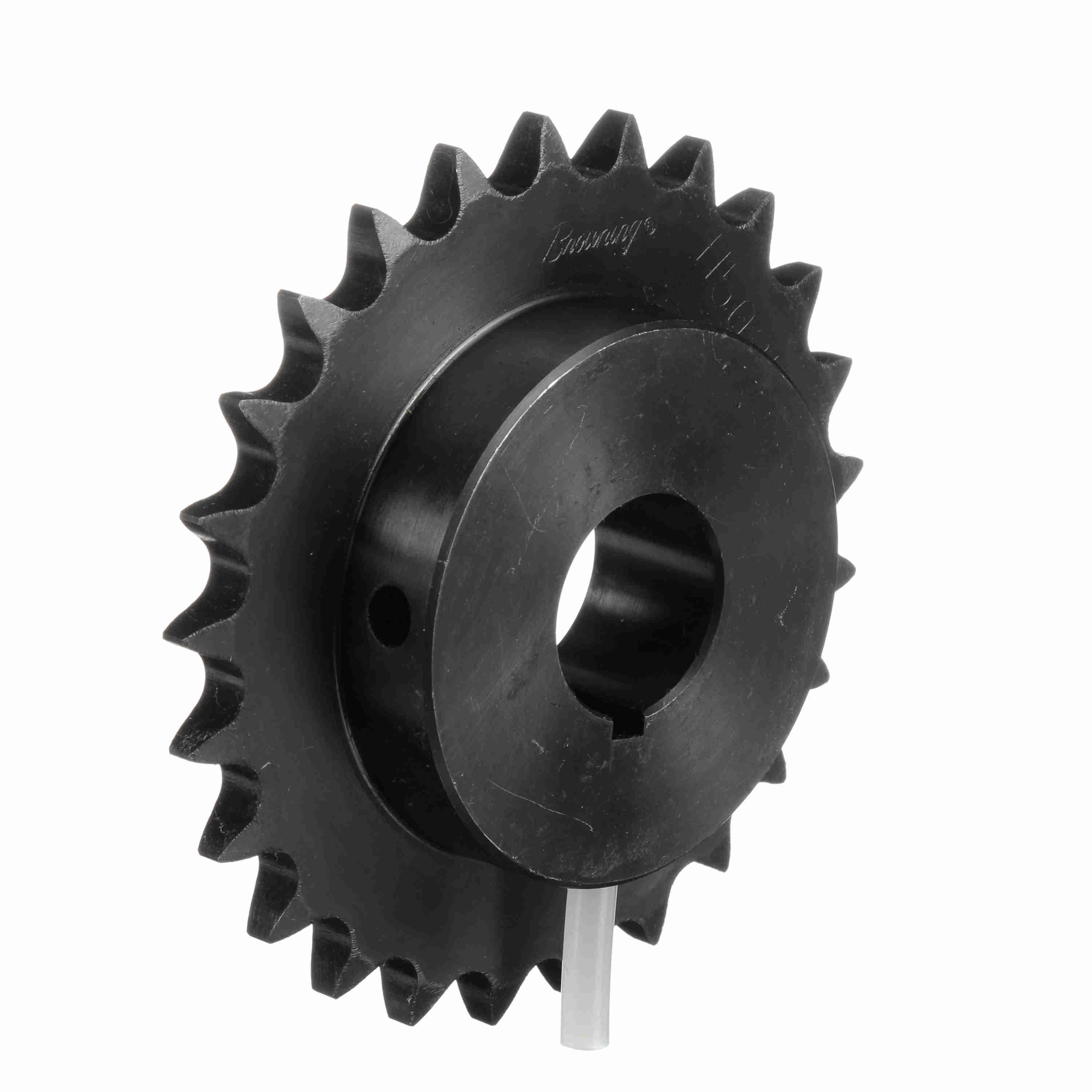

Browning® 3924750 Single Strand Finished Bore Type 1 Roller Chain Sprocket With Keyway, 1-7/16 in Dia Bore, 8.07 in OD, #60 Chain, 32 Teeth, 3/4 in Pitch, Steel
Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289701407
-
Manufacturer Part Number3924750
-
CountryUSA
-
Pitch Diameter7.652 in
-
MaterialSteel
-
Chain Size#60
-
TypeSingle Strand Finished Bore Type 1
-
Hub Diameter4.016 in
-
Number of Teeth32
-
Outside Diameter8.07 in
-
Length Through Bore1-1/4 in
-
Bore Diameter1-7/16 in
- Furnished with standard keyway on centerline of tooth and hollow head setscrew over keyway
- In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
- For use with 3/4 in pitch ANSI chain
-
Alternative Part Number6032X 1 7/16
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
