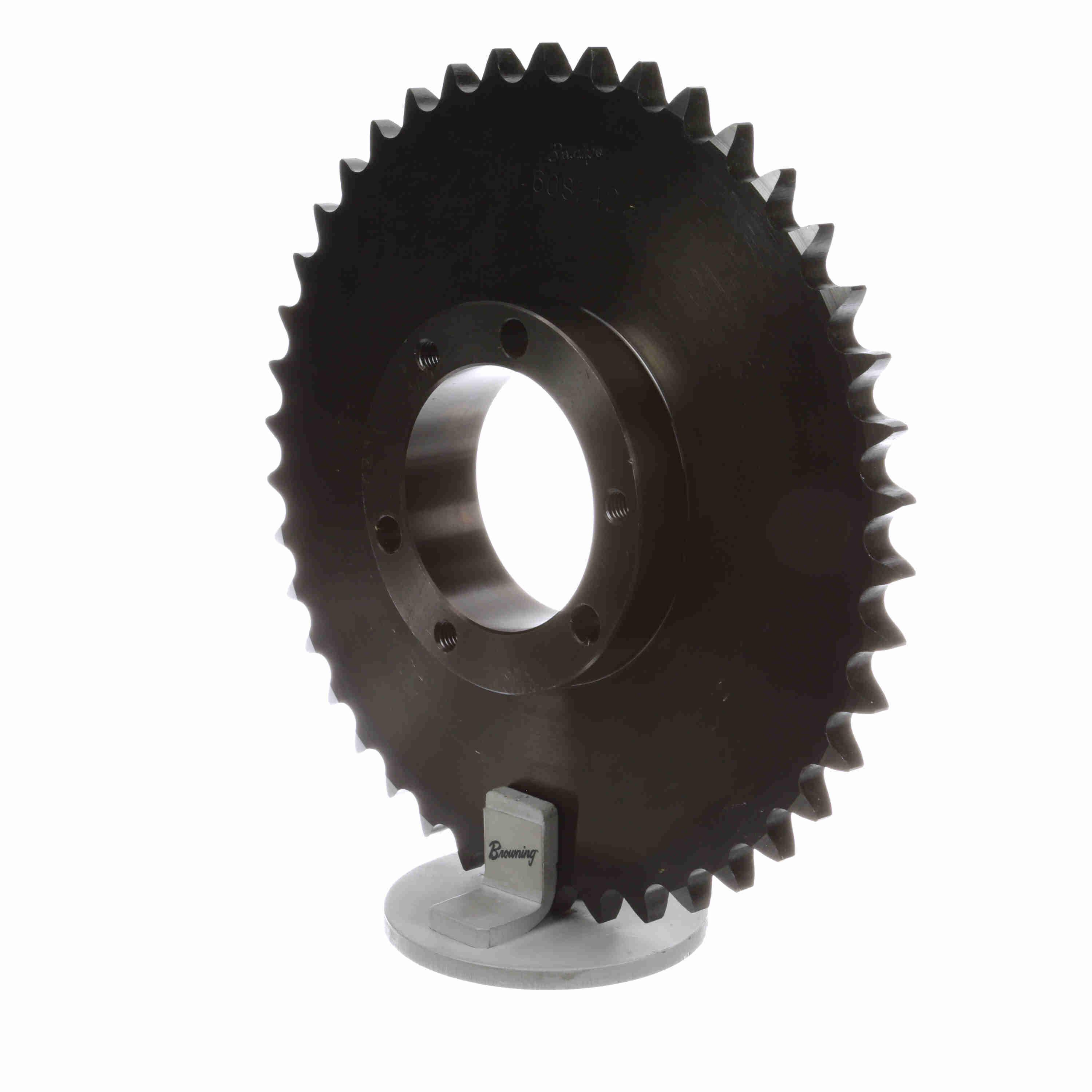

Browning® 3331428 Single Strand QD Bushed Type QD-1 Roller Chain Sprocket, 1/2 in Dia Bore, 10.458 in OD, #60 Chain, 42 Teeth, Steel
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289254729
-
Manufacturer Part Number3331428
-
CountryUSA
-
Pitch Diameter10.036 in
-
MaterialSteel
-
Chain Size#60
-
TypeSingle Strand QD Bushed Type QD-1
-
Hub Diameter4-5/8 in
-
Number of Teeth42
-
Outside Diameter10.458 in
-
Length Through Bore2.3906 in
-
Bore Diameter1/2 in
- This product has the Browning® exclusive twice the life guarantee
- Easy installation and removal
- Hardened teeth at no extra cost, drives sizes up to 30 teeth on 40 through 160 chain
- Reverse mounting possible
- For use with 3/4 in pitch ANSI chain
-
Alternative Part Number60SF42
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
