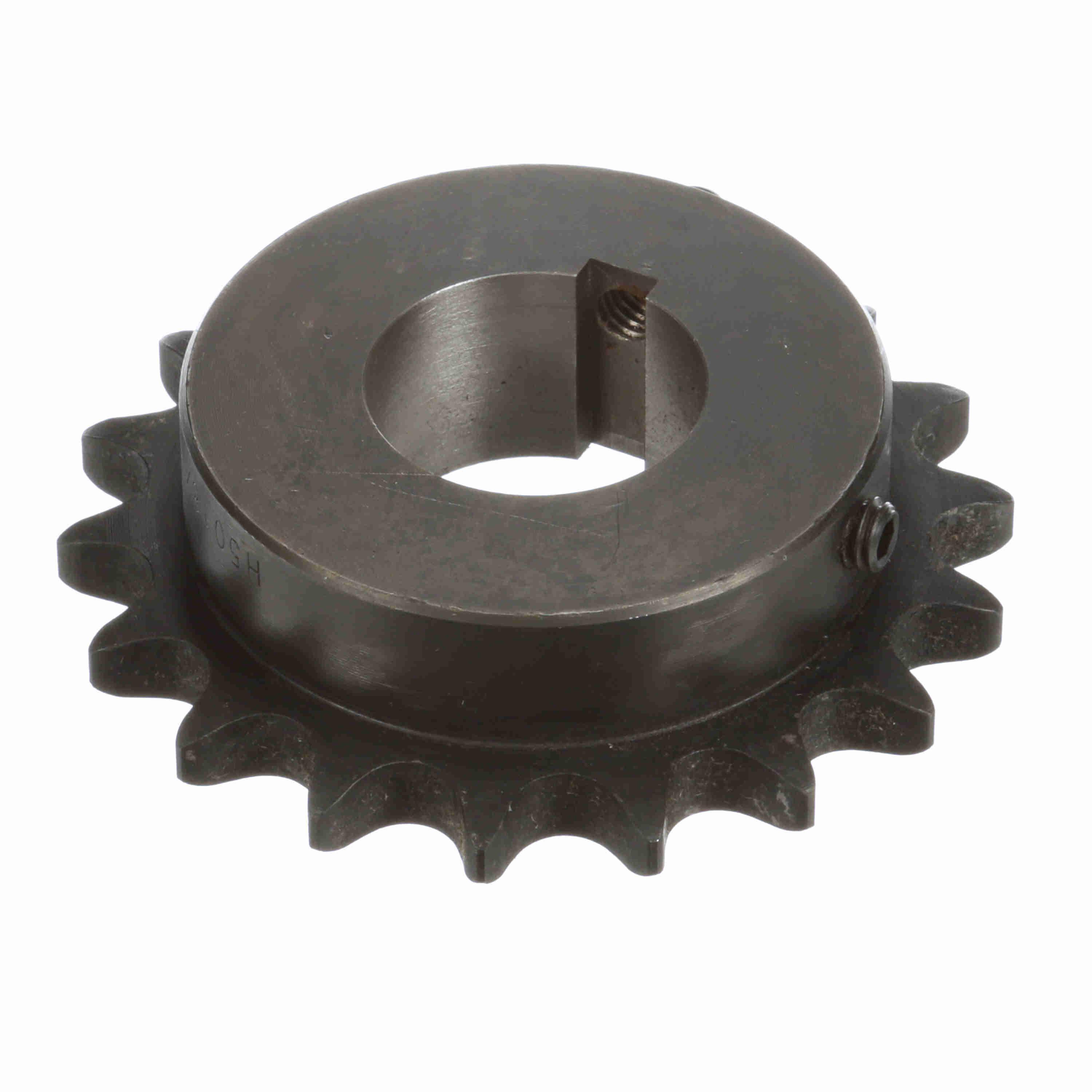

Browning 18-TOOTH #50-1 CHAIN SPROCKETS BRW H-5018 X 1-1/8
Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289163977
-
Manufacturer Part Number1128974
-
CountryUSA
-
Pitch Diameter3.599 in
-
MaterialSteel
-
Chain Size#50
-
TypeSingle Strand Finished Bore Type 1
-
Hub Diameter2.891 in
-
Number of Teeth18
-
Keyway Size1/4 x 1/8 in
-
Outside Diameter3.92 in
-
Length Through Bore1.016 in
-
Bore Diameter1-1/8 in
- Furnished with standard keyway on centerline of tooth and hollow head setscrew over keyway
- In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
- For use with 5/8 in pitch ANSI chain
- Additional setscrew at 90 and 180 deg to keyway
-
Alternative Part NumberH5018X 1 1/8
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
Specification Sheet
-
Warranty Information
