Tsubaki® DS50A17 Type A Double Single Roller Chain Sprocket, 5/8 in Dia Bore, 3.72 in OD, 50 Chain, 17 Teeth, 5/8 in Pitch, Carbon Steel

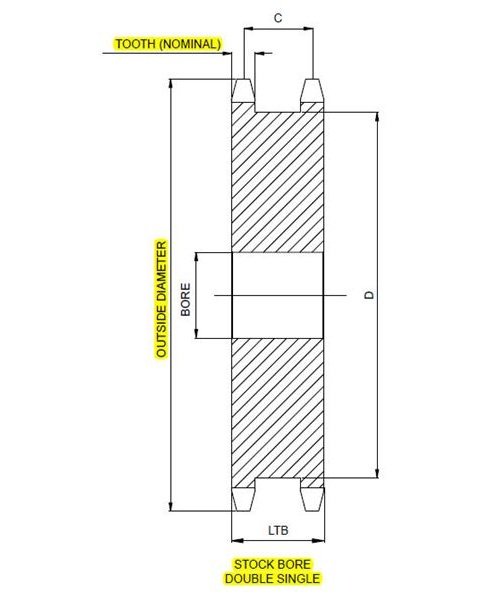

This type of sprocket is commonly used in applications where two or more items are powered by a common drive shaft. The space between the sprocket plates is wider than a multi-strand sprocket and allows two separate strands of chain to engage without contacting each other. With this type of sprocket, one strand of chain may exit in a different direction than the other. For example, one strand exiting towards the ceiling and the other running parallel to the floor.
-
BrandTsubaki®
-
UPC097039369819
-
Manufacturer Part NumberDS50A17
-
CountryUSA
-
Pitch5/8 in
-
Pitch Diameter3.401 in
-
MaterialCarbon Steel
-
Chain Size50
-
TypeType A
-
Screw Size1/4 in
-
Number of Teeth17
-
Keyway Size3/16 x 3/32 in
-
Outside Diameter3.72 in
-
Length Through Bore1.656 in
-
Bore Diameter5/8 in
-
UNSPSC31171901
-
Standards/ApprovalsISO 9001:2000|ISO 14001 Certified
-
WarrantyLimited
-
Catalog
-
Specification Sheet
