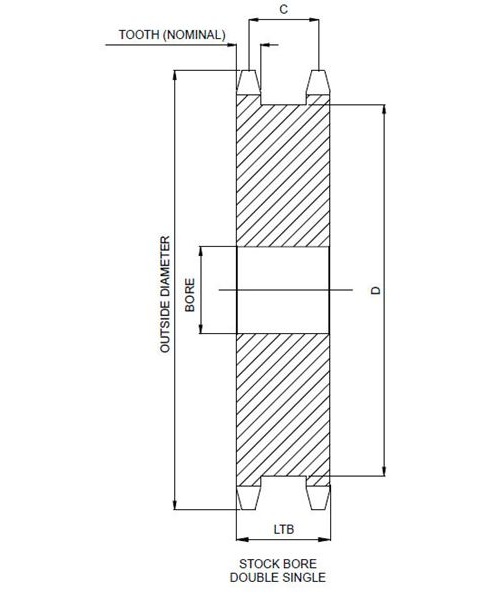

Tsubaki® DS80A14 Type A Double Single Roller Chain Sprocket, 1 in Dia Bore, 4.98 in OD, 80 Chain, 14 Teeth, 1 in Pitch, Carbon Steel
This type of sprocket is commonly used in applications where two or more items are powered by a common drive shaft. The space between the sprocket plates is wider than a multi-strand sprocket and allows two separate strands of chain to engage without contacting each other. With this type of sprocket, one strand of chain may exit in a different direction than the other. For example, one strand exiting towards the ceiling and the other running parallel to the floor.
-
BrandTsubaki®
-
UPC097039369994
-
Manufacturer Part NumberDS80A14
-
CountryUSA
-
Pitch1 in
-
Pitch Diameter4.494 in
-
MaterialCarbon Steel
-
Chain Size80
-
TypeType A
-
Screw Size5/16 in
-
Number of Teeth14
-
Keyway Size1/4 x 1/8 in
-
Outside Diameter4.98 in
-
Length Through Bore2.188 in
-
Bore Diameter1 in
-
UNSPSC31171901
-
Standards/ApprovalsISO 9001:2000|ISO 14001 Certified
-
WarrantyLimited
-
Catalog
-
Specification Sheet
