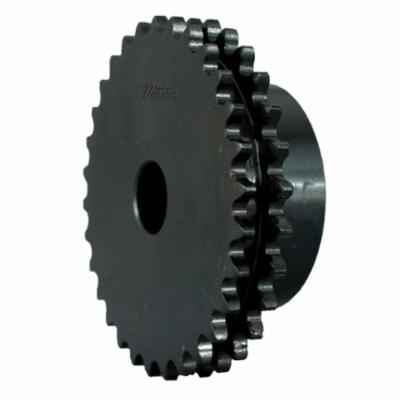

Martin D50B24H Double Strand Solid Stock Bore Type B Single Roller Chain Sprocket, 1 in Dia Bore, 5.122 in OD, 50-2 Chain, 24 Teeth, 5/8 in Pitch, Steel
Martin double strand solid construction sprockets have proper spacing between chain rows. The sprockets are manufactured from high carbon steel. Martin does not stack "A" plates on multiples, but instead Martin machines teeth after the chain rows are already in place. These plain bore sprockets can easily be bored to a metric or standard size to fit your application. Keyways, set screws and hardened teeth are quick alterations that can be made.
-
BrandMartin
-
UPC697950013770
-
Manufacturer Part NumberD50B24H
-
CountryUSA|Canada
-
Pitch5/8 in
-
Pitch Diameter4.788 in
-
MaterialSteel
-
Chain Size50-2
-
TypeDouble Strand Solid Stock Bore Type B
-
Hub Diameter3-7/8 in
-
Number of Teeth24
-
Outside Diameter5.122 in
-
Length Through Bore1-7/8 in
-
Bore Diameter1 in
- Manufactured of high carbon steel
- Precise machining and processes ensure consistent finish and high quality
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
-
UNSPSC31171901
-
