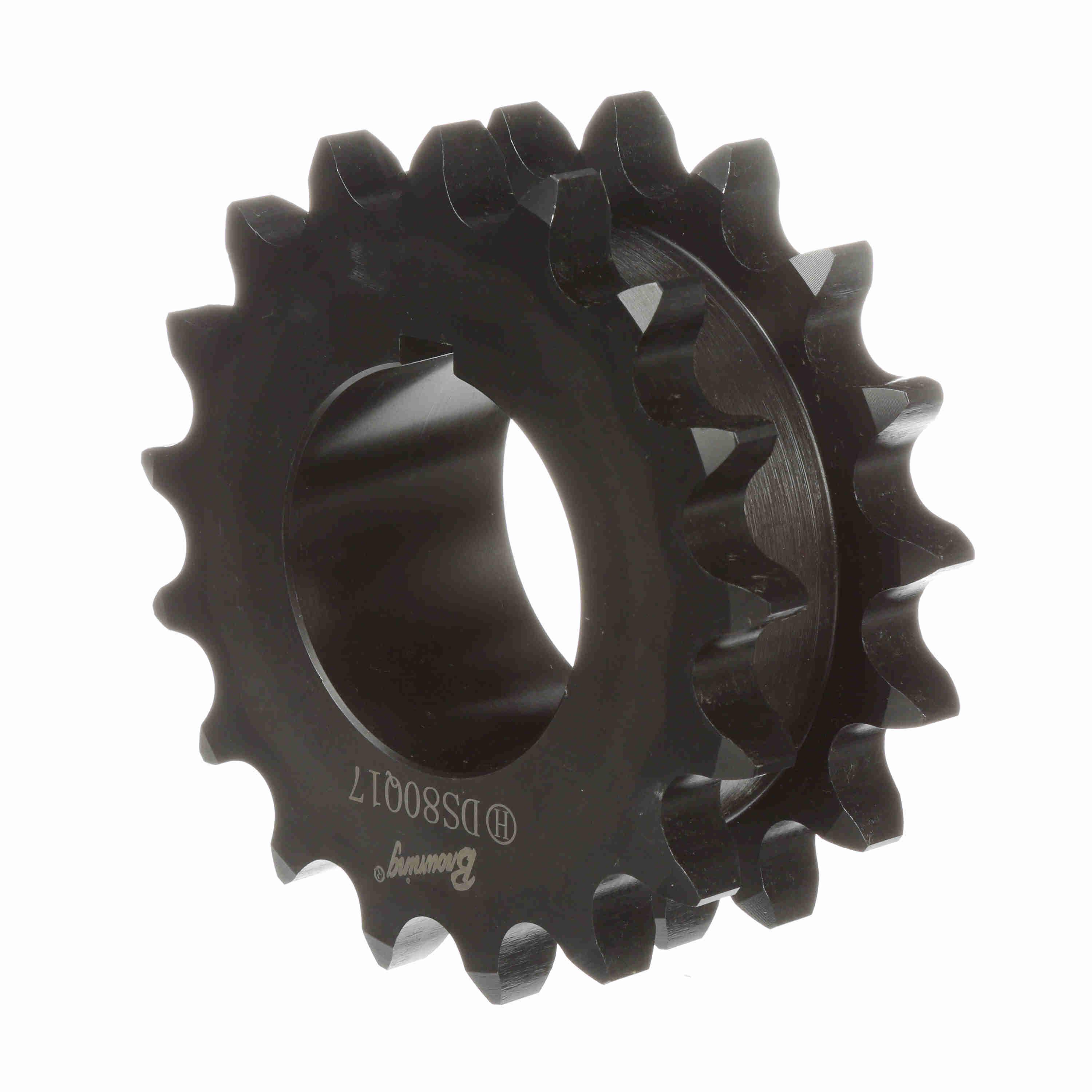

Browning® 1176817 Double Single Strand Type DS-2 Roller Chain Sprocket With Hardened Teeth, 3/4 to 2-11/16 in Dia Bore, 5.95 in OD, 80 Chain, 17 Teeth, 1 in Pitch, Steel
Browning® stock double single sprockets with Split-Taper® bushings are for use with two single strand chains, normally one drive chain and one driven chain as on roll case drives or live roller conveyor drives. They are made of steel, have hardened teeth and are ready to use right off the shelf. No reworking is necessary since they use Browning® Split-Taper® bushings.
-
BrandBrowning®
-
UPC662289108510
-
Manufacturer Part Number1176817
-
CountryUSA
-
Pitch Diameter5.442 in
-
MaterialSteel
-
Chain Size80
-
TypeDouble Single Strand Type DS-2
-
Number of Teeth17
-
Outside Diameter5.95 in
-
Length Through Bore3.2813 in
-
Bore Diameter3/4 to 2-11/16 in
- This product has the Browning® exclusive twice the life guarantee
- External key, higher torque capacity, aligns bolt holes
- Provides key to key drive
- Double split barrel, improved clamping
- Solid flange, true concentricity, easy installation
- Longer barrel, better support on the shaft
- For use with 1 in pitch ANSI chain
- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost - Drive Sizes up to 30 teeth on 35 through 160 Chain
-
Alternative Part NumberDS80Q17
-
UNSPSC31171901
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Warranty Information
