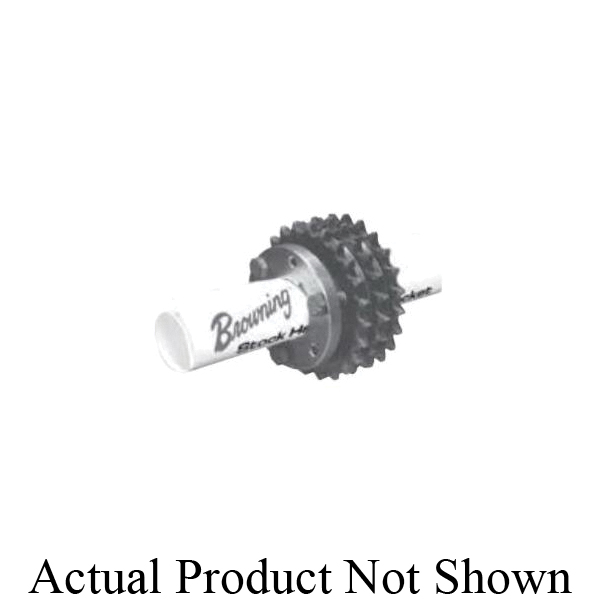

Morse® 1125343 Double Strand Type DB Roller Chain Sprocket With Hardened Teeth, 1-3/4 in Dia Bore, 5.23 in OD, 35 Chain, 42 Teeth, 3/8 in Pitch, Steel
Browning®Type B minimum bore sprockets are offered in single, double and triple strands. Offerings include 25 to 200 pitch range. Minimum bore sprockets are available in bore ranges from 1/4 to 8-3/8 in.
-
BrandMorse®
-
UPC662289319886
-
Manufacturer Part Number1125343
-
CountryUSA
-
Pitch3/8 in
-
Pitch Diameter5.018 in
-
MaterialSteel
-
Chain Size35
-
TypeDouble Strand Type DB
-
Hub Diameter2-1/2 in
-
Number of Teeth42
-
Outside Diameter5.23 in
-
Length Through Bore1-3/8 in
-
Bore Diameter1-3/4 in
- Larger hub diameter allows larger bore capacity
- Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway
- For 3/8 in pitch roller chain
-
Alternative Part NumberD35B42
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
Catalog
-
Specification Sheet
