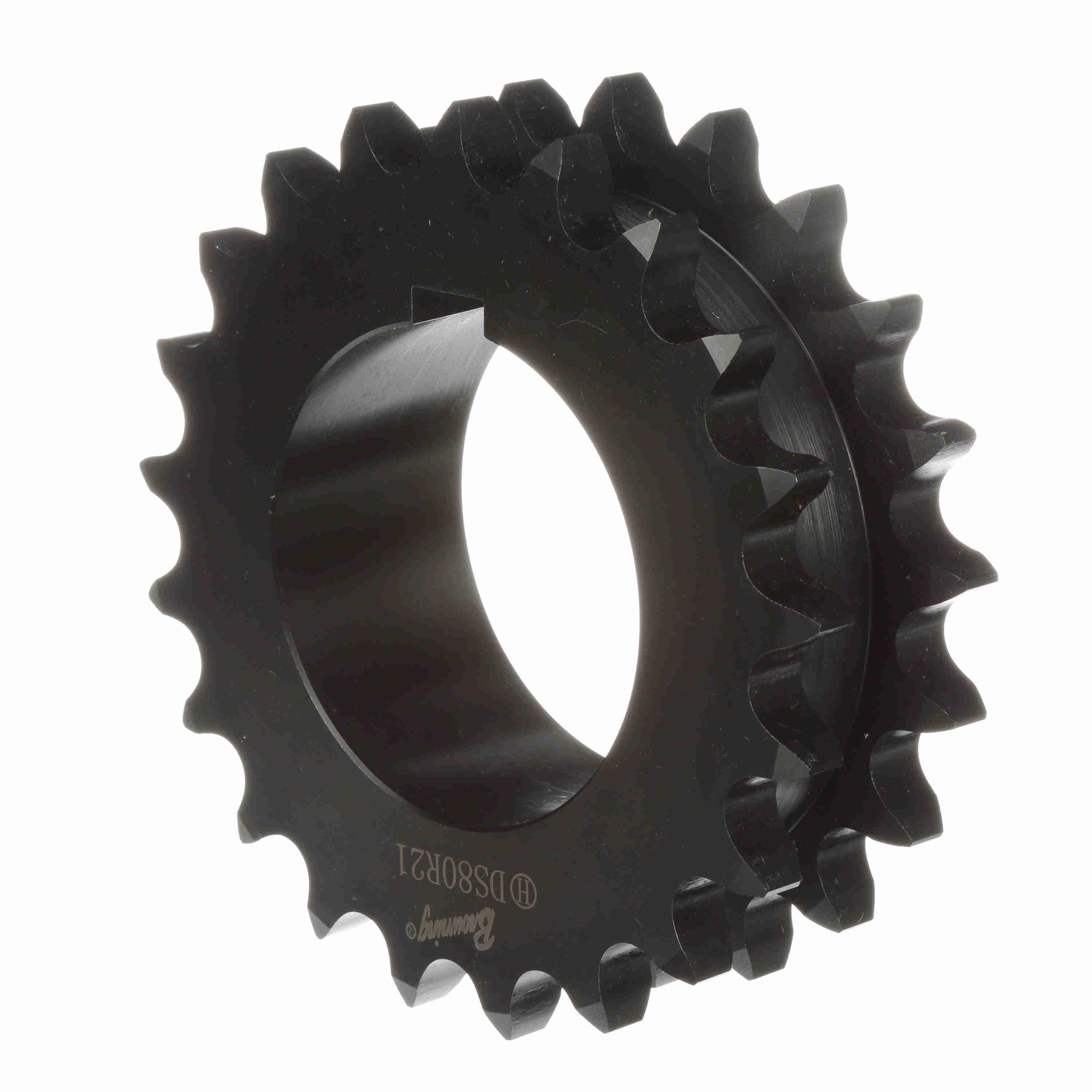

Browning® 1176841 Double Single Strand Type DS-2 Roller Chain Sprocket With Hardened Teeth, 1-1/8 to 3-3/4 in Dia Bore, 7.235 in OD, 80 Chain, 21 Teeth, 1 in Pitch, Steel
Browning® stock double single sprockets with Split-Taper® bushings are for use with two single strand chains, normally one drive chain and one driven chain as on roll case drives or live roller conveyor drives. They are made of steel, have hardened teeth and are ready to use right off the shelf. No reworking is necessary since they use Browning® Split-Taper® bushings.
-
BrandBrowning®
-
UPC662289288502
-
Manufacturer Part Number1176841
-
CountryUSA
-
Pitch Diameter6.71 in
-
MaterialSteel
-
Chain Size80
-
TypeDouble Single Strand Type DS-2
-
Number of Teeth21
-
Outside Diameter7.235 in
-
Length Through Bore3.3438 in
-
Bore Diameter1-1/8 to 3-3/4 in
- This product has the Browning® exclusive twice the life guarantee
- External key, higher torque capacity, aligns bolt holes
- Provides key to key drive
- Double split barrel, improved clamping
- Solid flange, true concentricity, easy installation
- Longer barrel, better support on the shaft
- For use with 1 in pitch ANSI chain
- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost - Drive Sizes up to 30 teeth on 35 through 160 Chain
-
Alternative Part NumberDS80R21
-
UNSPSC31171901
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Warranty Information
