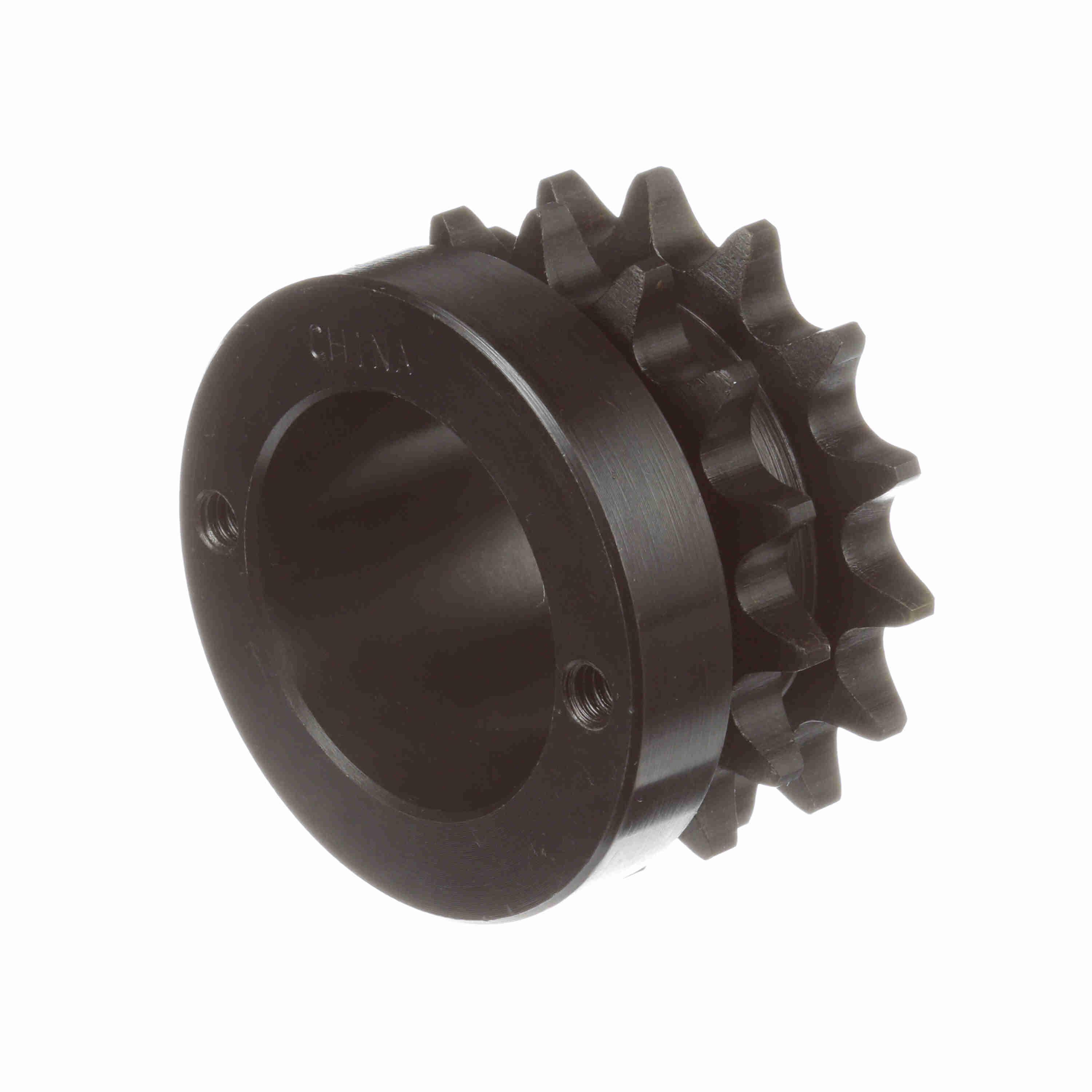

Browning® 1174093 Double Strand Type 11 Roller Chain Sprocket With Hardened Teeth, 3/8 to 1-1/2 in Dia Bore, 2.652 in OD, 40 Chain, 15 Teeth, 1/2 in Pitch, Steel
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289308767
-
Manufacturer Part Number1174093
-
CountryUSA
-
Pitch Diameter2.405 in
-
MaterialSteel
-
Chain Size40
-
TypeDouble Strand Type 11
-
Hub Diameter2.494 in
-
Number of Teeth15
-
Outside Diameter2.652 in
-
Length Through Bore2.1173 in
-
Bore Diameter3/8 to 1-1/2 in
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
-
Alternative Part NumberD40H15
-
UNSPSC31171901
-
Package DescriptionEACH
-
Warranty1 Year
-
