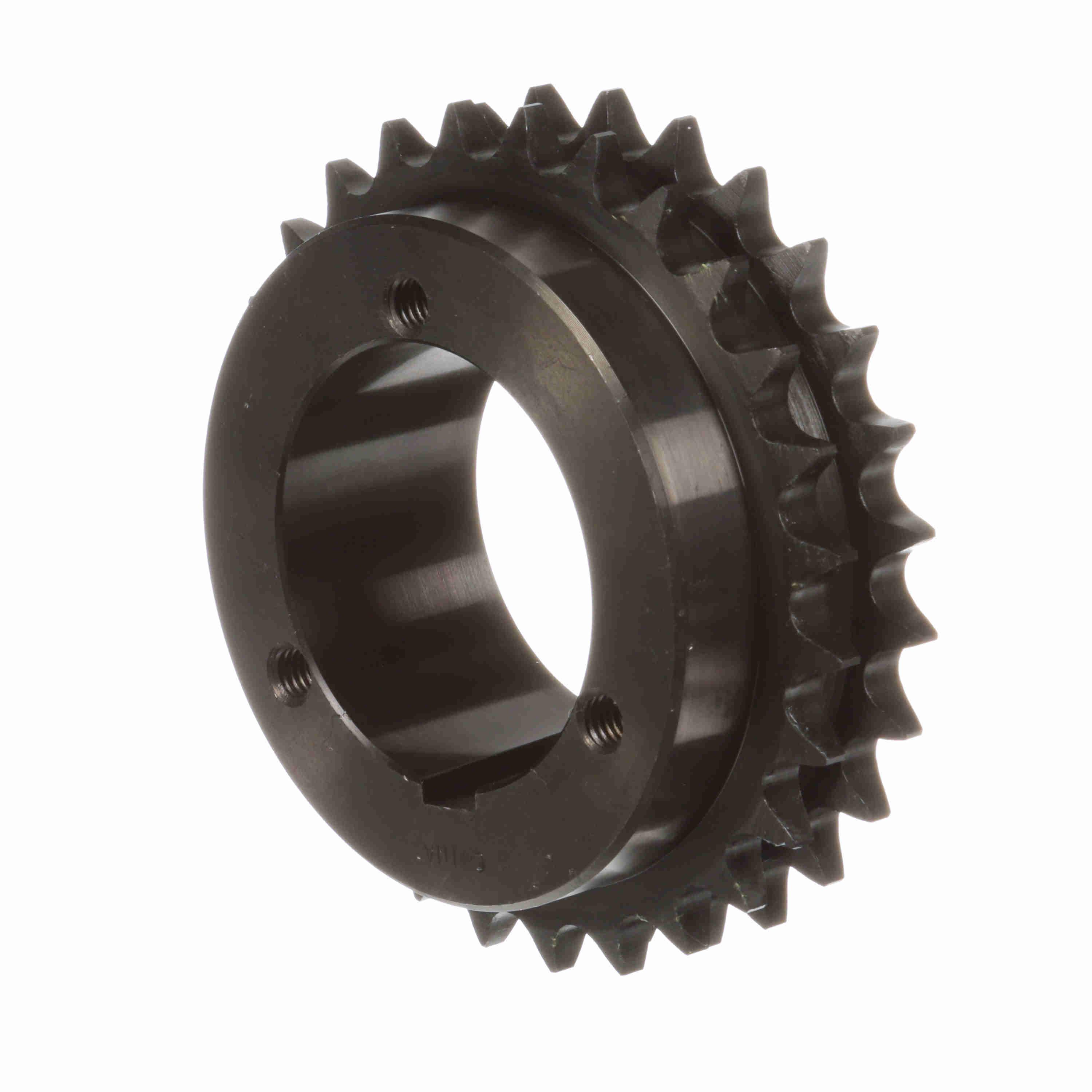

Browning® 1174440 Double Strand Type 12 Roller Chain Sprocket With Hardened Teeth, 3/4 to 2-11/16 in Dia Bore, 5.722 in OD, 50 Chain, 27 Teeth, 5/8 in Pitch, Steel
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289289189
-
Manufacturer Part Number1174440
-
CountryUSA
-
Pitch Diameter5.384 in
-
MaterialSteel
-
Chain Size50
-
TypeDouble Strand Type 12
-
Hub Diameter4-1/8 in
-
Number of Teeth27
-
Outside Diameter5.722 in
-
Length Through Bore2.8281 in
-
Bore Diameter3/4 to 2-11/16 in
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
-
Alternative Part NumberD50Q27
-
UNSPSC31171901
-
Package DescriptionEACH
-
Warranty1 Year
-
