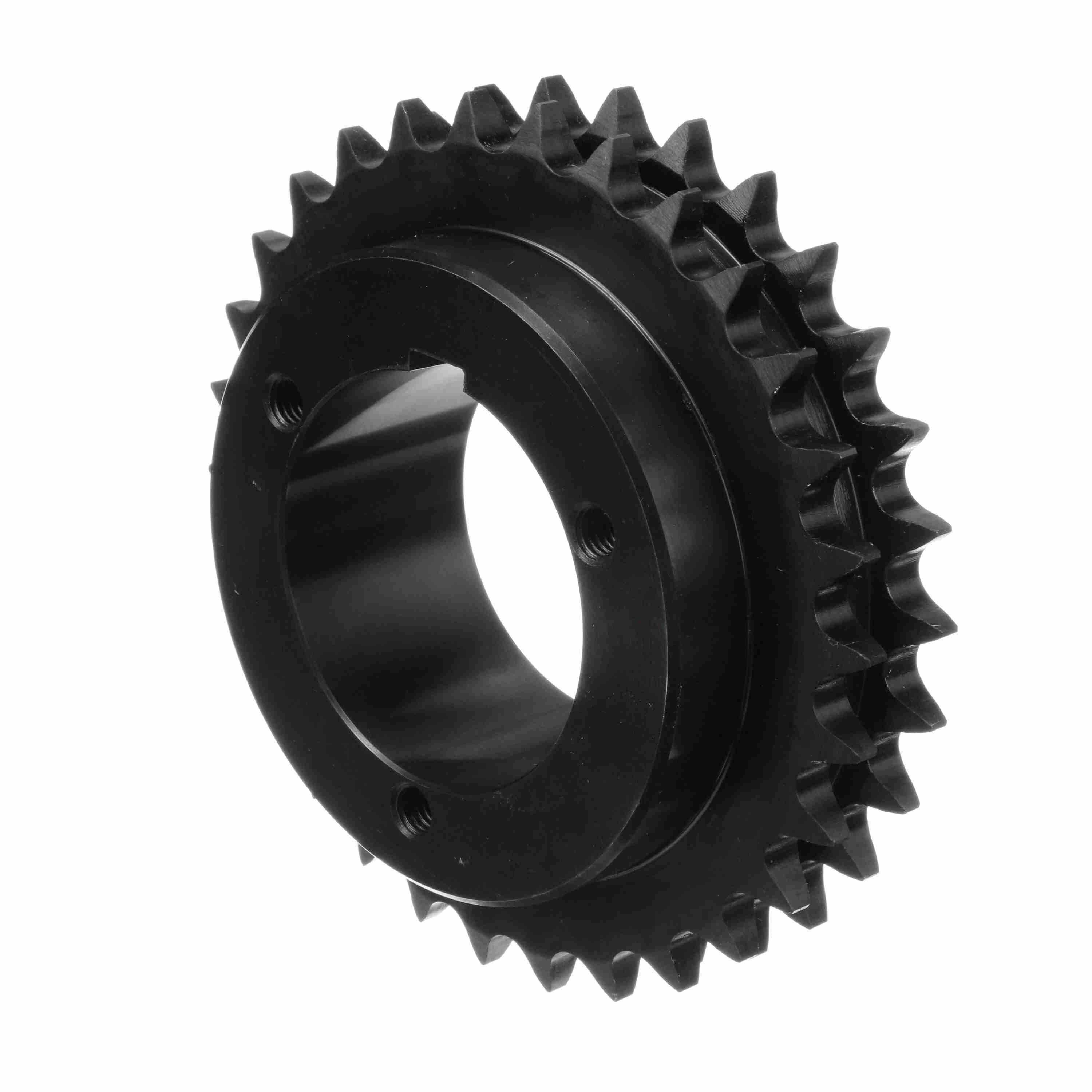

Browning® 1174465 Double Strand Type 12 Roller Chain Sprocket With Hardened Teeth, 3/4 to 2-11/16 in Dia Bore, 6.321 in OD, 50 Chain, 30 Teeth, 5/8 in Pitch, Steel
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289269167
-
Manufacturer Part Number1174465
-
CountryUSA
-
Pitch Diameter5.979 in
-
MaterialSteel
-
Chain Size50
-
TypeDouble Strand Type 12
-
Hub Diameter4-1/8 in
-
Number of Teeth30
-
Outside Diameter6.321 in
-
Length Through Bore2.8281 in
-
Bore Diameter3/4 to 2-11/16 in
- This product has the Browning® exclusive twice the life guarantee
- Hardened teeth at no extra cost, drives sizes up to 30 teeth on 35 through 160 chain
- External key, higher torque capacity, aligns bolt holes
- Provides key to key drive
- Double split barrel, improved clamping
- Solid flange, true concentricity, easy installation
- Longer barrel, better support on the shaft
- For use with 5/8 in pitch ANSI chain
- Easy installation and removal
- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
-
Alternative Part NumberD50Q30
-
UNSPSC31171901
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Warranty Information
