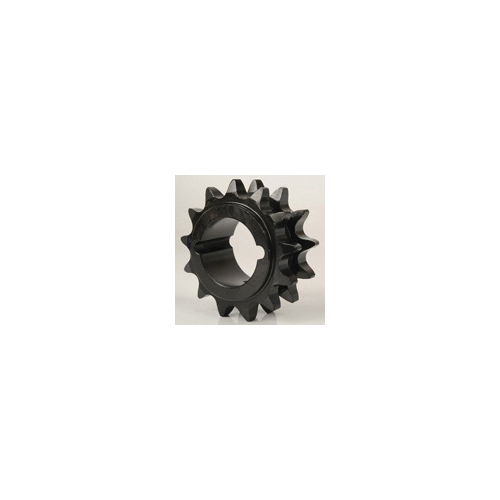

Browning® 3789591 Double Strand Type 2 Roller Chain Sprocket With Hardened Teeth, 1/2 to 1-5/8 in Dia Bore, 4.462 in OD, 60 Chain, 17 Teeth, 3/4 in Pitch, Steel
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289184347
-
Manufacturer Part Number3789591
-
CountryUSA
-
Pitch Diameter4.082 in
-
MaterialSteel
-
Chain Size60
-
TypeDouble Strand Type 2
-
Hub Diameter3-1/4 in
-
Number of Teeth17
-
Outside Diameter4.462 in
-
Length Through Bore1-1/2 in
-
Bore Diameter1/2 to 1-5/8 in
- This product has the Browning® exclusive twice the life guarantee
- Compact design
- Hardened teeth at no extra cost, drives sizes up to 30 teeth on 40 through 160 chain
- Flush fit, less space on shaft and no protruding flange
- Setscrew or cap screw acts as external key
- For use with 3/4 in pitch ANSI chain
-
Alternative Part NumberD60TB17
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
Specification Sheet
-
Warranty Information
