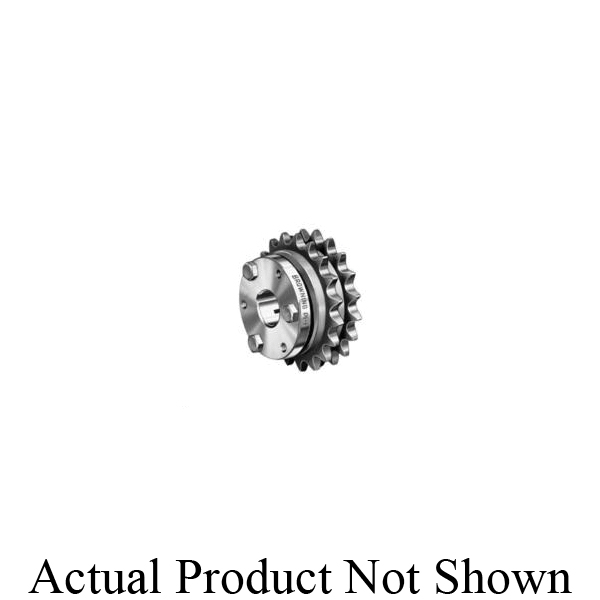

Browning® 1174630 Double Strand Roller Chain Sprocket With Hardened Teeth, 1/2 to 1-3/4 in Dia Bore, 4.703 in OD, 60 Chain, 18 Teeth, 3/4 in Pitch, Steel
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289229352
-
Manufacturer Part Number1174630
-
CountryUSA
-
Bushing TypeType P1 Split Taper
-
Pitch3/4 in
-
Pitch Diameter4.319 in
-
MaterialSteel
-
Chain Size60
-
TypeDouble Strand
-
Hub Diameter3 in
-
Number of Teeth18
-
Outside Diameter4.703 in
-
Length Through Bore1.938 in
-
Bore Diameter1/2 to 1-3/4 in
- External key have higher torque capacity, aligns bolt holes
- Provides key to key drive
- Double split barrel to improved clamping
- Solid flange true concentricity, easy installation
- Longer barrel have better support on the shaft
- For use with 3/4 in pitch ANSI roller chain
-
Alternative Part NumberD60P18
-
UNSPSC31151603
-
Warranty1 Year
-
