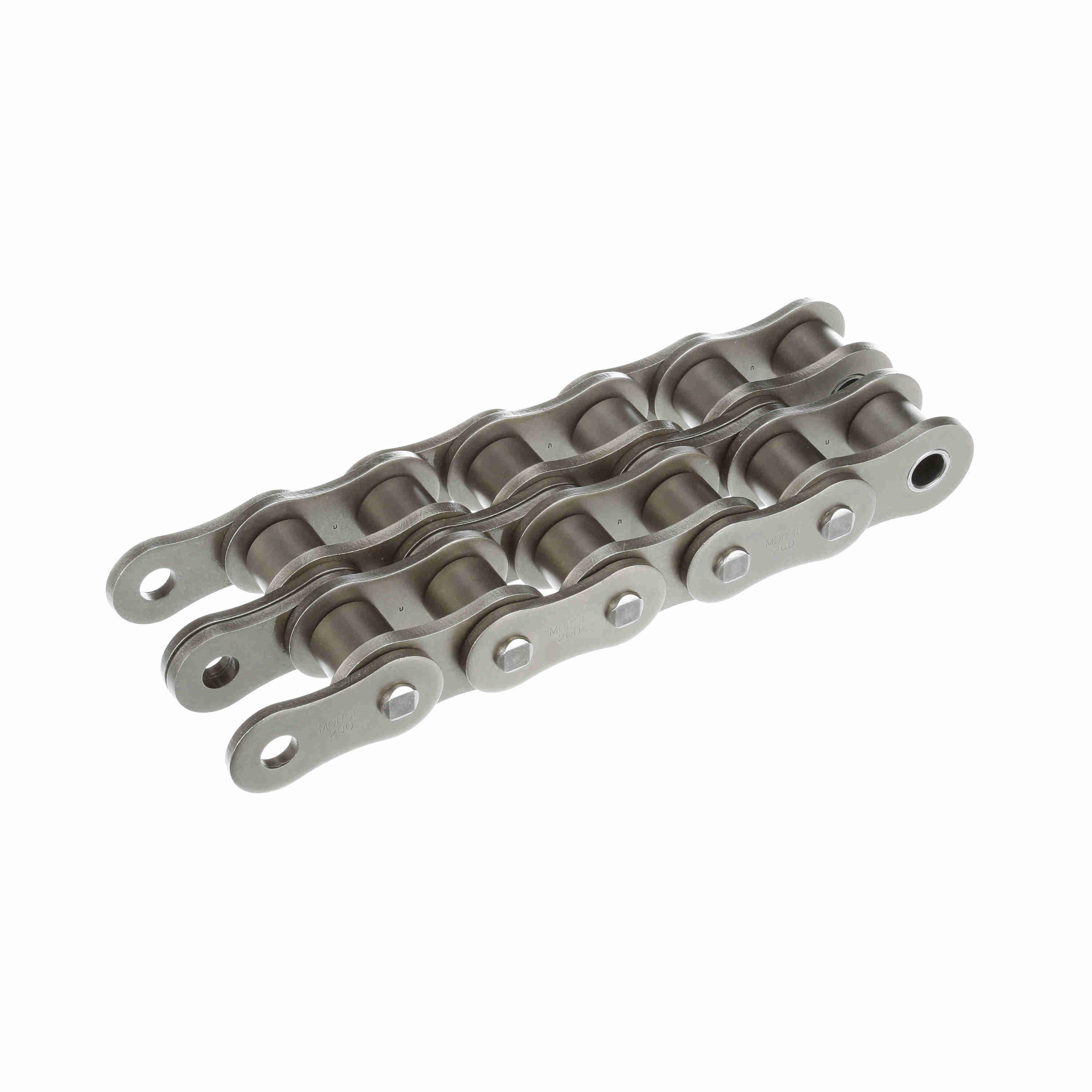

Morse® 322088 Riveted Standard Duty Roller Chain, 10 ft OAL, 2-1/2 in Pitch, 1.562 in Dia x 1-1/2 in W Roller, Steel
Morse® markets roller chain featuring greater resistance and increased endurance limit. Morse® shot-peens its rollers to create a favorable state of compression residual stress on the surface. This process eliminates surface cracks and blemishes. The chain offered meets the standards required in the marketplace for many applications.
-
BrandMorse®
-
UPC662288455622
-
Manufacturer Part Number322088
-
CountryUSA
-
Pitch2-1/2 in
-
Plate Height2-1/4 in
-
Plate Thickness0.312 in
-
Tensile Strength190000 lb
-
MaterialSteel
-
TypeRiveted Standard Duty
-
Roller Diameter1.562 in
-
Roller Width1-1/2 in
-
Number of Links1
-
Number of Strands2
-
Overall Length10 ft
-
Pin Diameter0.781 in
-
Pin Length5.937 in
- Available in package quantities or via quick-turnaround cut-to-length
-
Alternative Part Number200-2R 10FT
-
UNSPSC26111500
-
Package DescriptionEACH
-
Standards/ApprovalsANSI B29.1
-
Warranty1 Year
-
