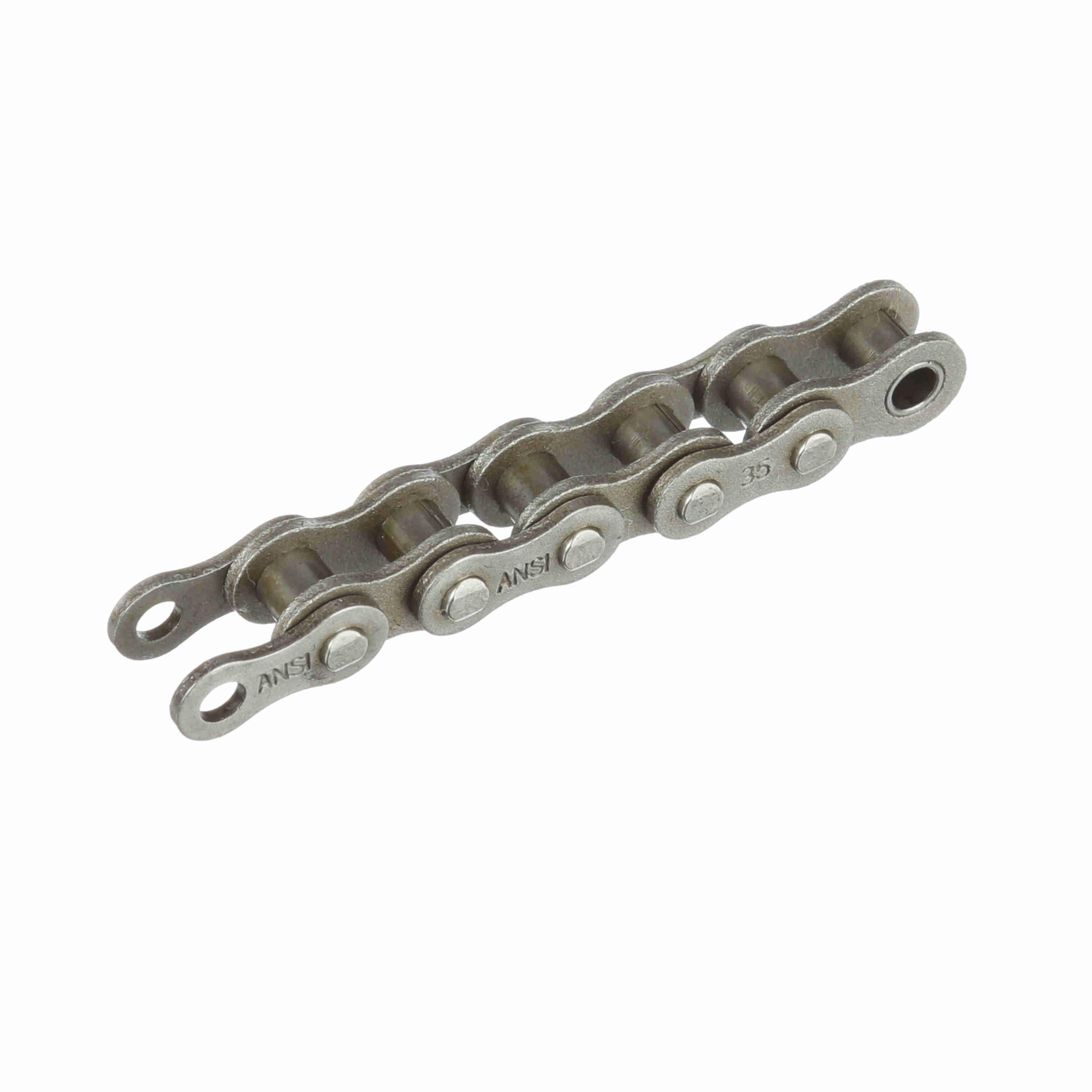

Browning® 1293455 Riveted Standard Duty Roller Chain, 10 ft OAL, 3/8 in Pitch, 0.2 in Dia x 3/16 in W Roller, Steel
All Browning® ANSI B29.1 roller chain is prestressed, a production operation that permanently seats the various chain components. Prestressing minimizes the chain stretch which often occurs with ordinary chain during the initial running period, thus avoids excessive early wear and reduces the need for take-up adjustment. Prestressing minimizes tolerance variations too, ensuring balanced loading among all parts and avoiding premature fatigue failure.
-
BrandBrowning®
-
UPC662289243495
-
Manufacturer Part Number1293455
-
CountryUSA
-
Pitch3/8 in
-
Plate Height0.35 in
-
Plate Thickness0.05 in
-
Tensile Strength2100 lb
-
MaterialSteel
-
TypeRiveted Standard Duty
-
Roller Diameter0.2 in
-
Roller Width3/16 in
-
Number of Strands1
-
Overall Length10 ft
-
Pin Diameter0.141 in
-
Pin Length0.466 in
- Exceptional Quality and Performance in Browning Chain
- Rigid manufacturing processes result in a fully-featured chain
-
Alternative Part NumberJ35 RIV 10 FT CH
-
UNSPSC26111500
-
Standards/ApprovalsANSI B29.1
-
Warranty1 Year
-
Package DescriptionEACH
-
