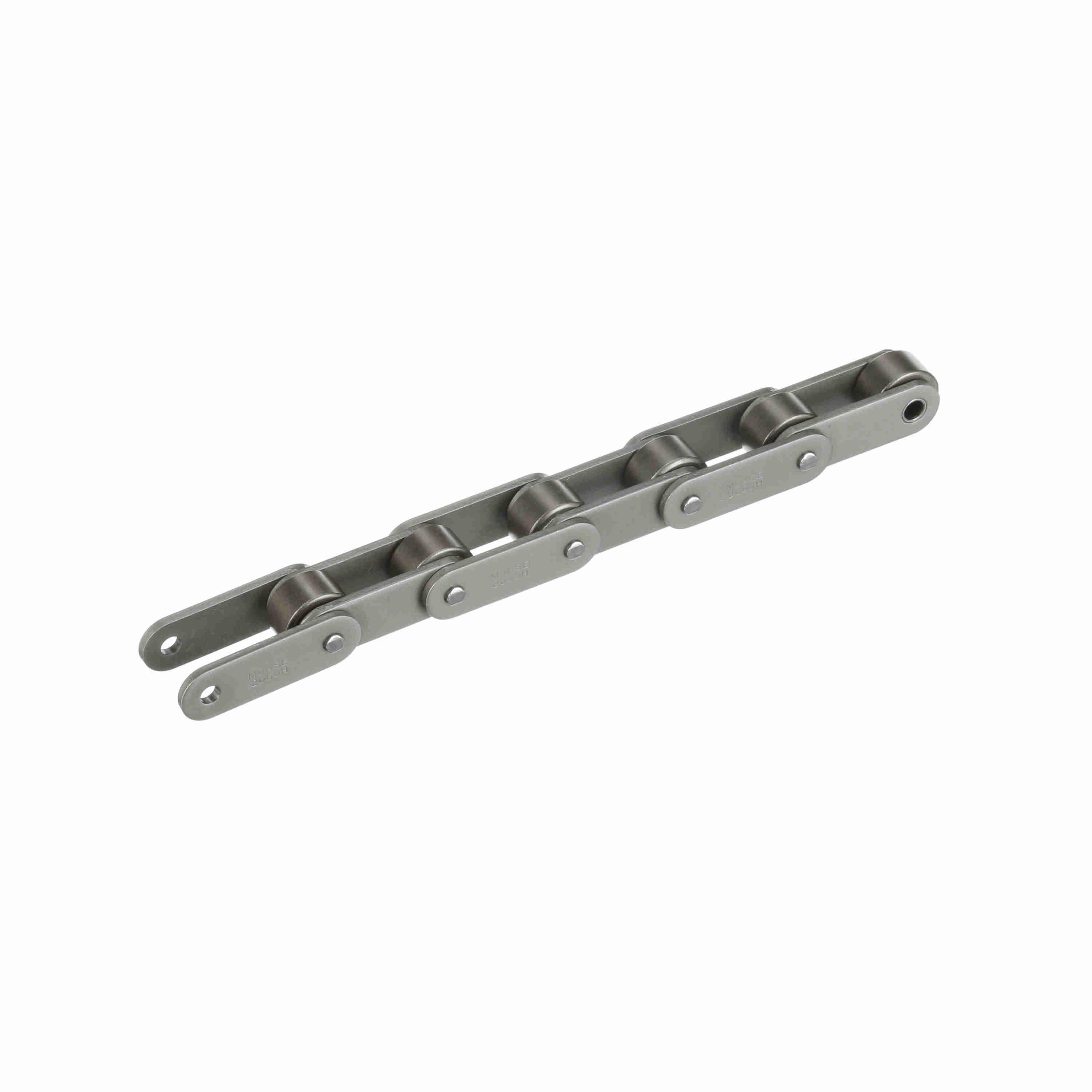

Browning C-2062 LG/ROLLER ROLLER CHAIN BRW C-2062-HR-10-FT
Morse® markets roller chain featuring greater resistance and increased endurance limit. Morse® shot peens its rollers to create a favorable state of compression residual stress on the surface. This process eliminates surface cracks and blemishes. The chain offered meets the standards required in the marketplace for many applications. Roller chain is available from 1/4 in pitch to 2-1/2 in pitch. Morse® offers standard roller chain in multiple widths to 8 strands up to 2 in pitch. Roller chain accessories such as connecting links are available in slip fit on the pins. This allows for easy assembly . They are also furnished with spring clip or cotter keys, depending on pitch. For heavy applications, we offer an optional connecting link. It has a removable plate with a light press fit on the pins. Regular offset links are used when a chain contains an odd number of links.
-
BrandMorse®
-
UPC662288455660
-
Manufacturer Part Number322214
-
CountryUSA
-
Pitch1-1/2 in
-
Plate Height0.7 in
-
Plate Thickness1/8 in
-
Tensile Strength8500 lb
-
MaterialSteel
-
TypeLarge Riveted Double Pitch
-
Roller Diameter7/8 in
-
Roller Width1/2 in
-
Number of Link1
-
Number of Strands1
-
Overall Length10 ft
-
Pin Diameter0.234 in
-
Pin Length1.115 in
- Far exceeds ANSI performance standards
- Available in package quantities or via quick-turnaround cut-to-length
-
Alternative Part NumberC2062HR 10FT
-
UNSPSC24101700
-
Package DescriptionEACH
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
Catalog
-
Instruction/Installation Manual
