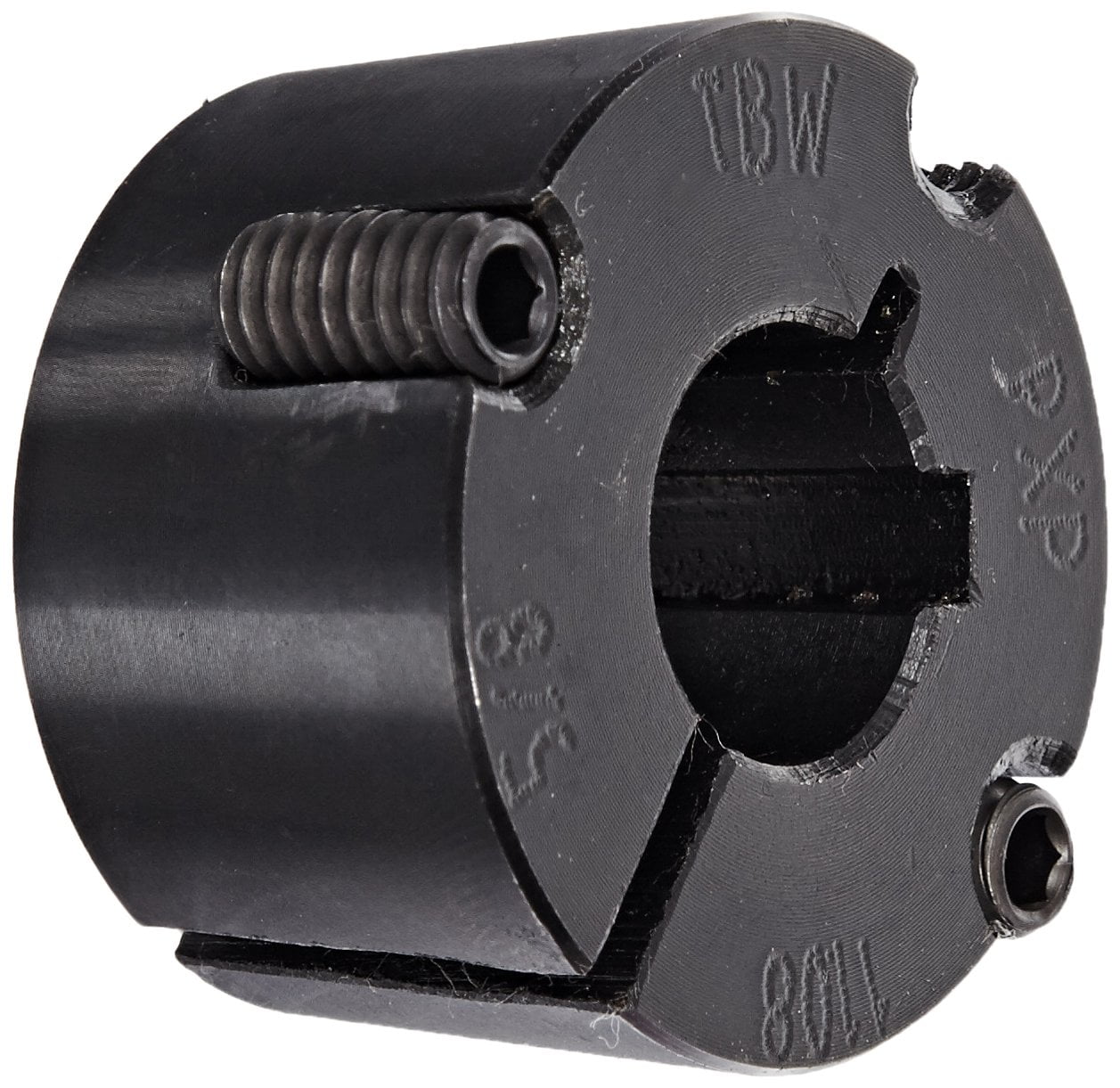

Browning® 3748522 Taper Lock Bushing, 7/8 in Dia Bore, 1.511 in Dia Barrel, 7/8 in OAL, Steel
Browning® 3748522 Taper Lock Bushing, 7/8 in Dia Bore, 1.511 in Dia Barrel, 7/8 in OAL, Steel
-
BrandBrowning®
-
UPC662289610921
-
Manufacturer Part Number3748522
-
CountryUSA
-
Taper1-1/2 in/ft
-
MaterialSteel
-
Torque Rating1300 in-lb
-
Screw Size1/4 x 1/2 in
-
Number of Bolt Holes2
-
Barrel Diameter1.511 in
-
Keyway Size3/16 x 3/32 in
-
Bolt Circle Diameter1-29/64 in
-
Bore Diameter7/8 in
-
Overall Length7/8 in
-
Suitable For Use WithBrowning® Sprockets and HPT Chain Synchronous Belt Drives
- Size 1108 bushing
- Mounts flush in products no protruding flanges to interfere with the drive
- Key to key drive cap screws act as an external key
- 1-1/2 in/ft taper on barrel since this is a non-self locking taper it provides ease of installation and removal of products from the shaft
-
Alternative Part Number1108X7/8
-
UNSPSC31163205
-
Package DescriptionEACH
-
Warranty1 Year
-
