Browning 5/8"-ID 1215-STYLE TL BUSHINGS BRW 1215 X 5/8

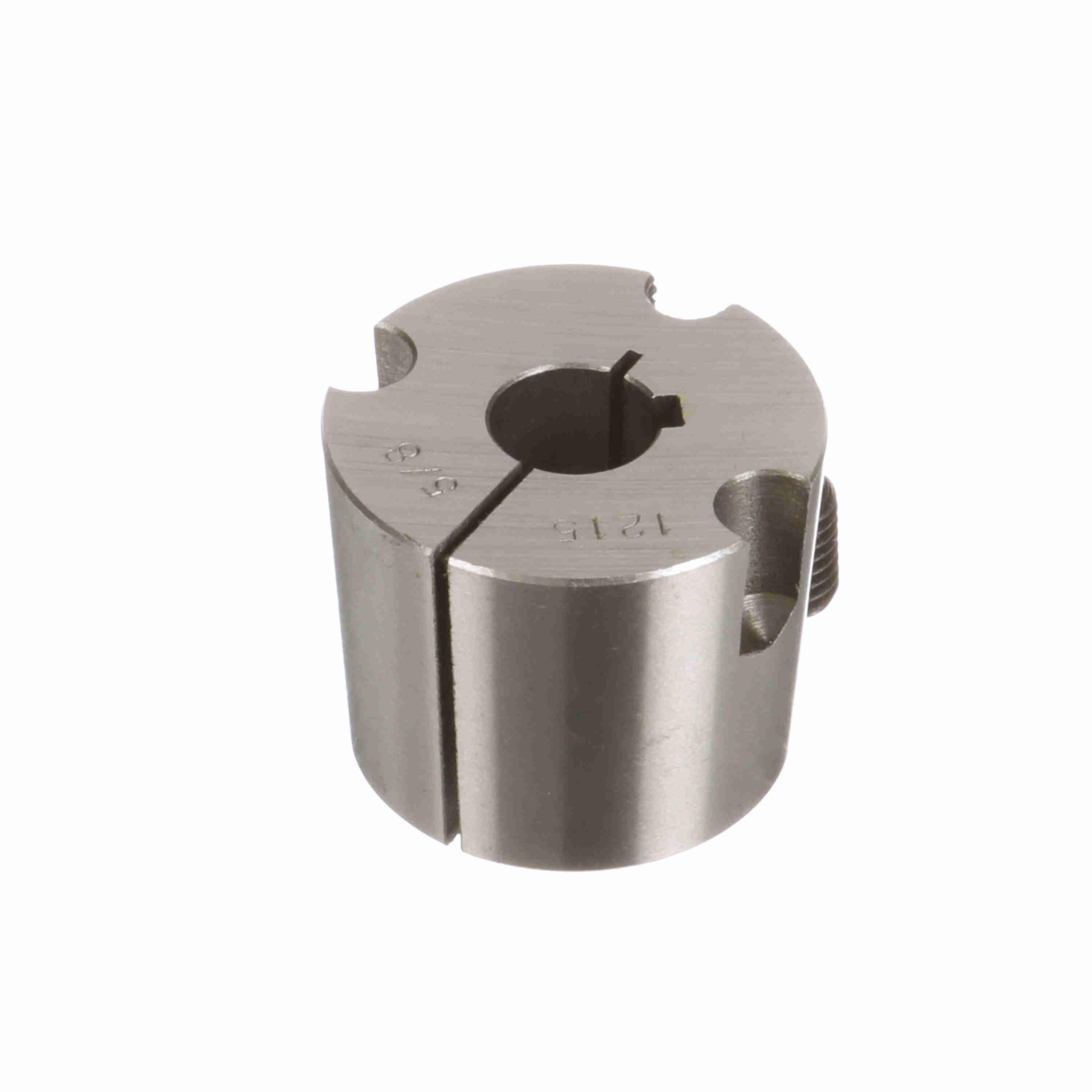

Browning® 3748720 Taper Lock Bushing, 5/8 in Dia Bore, 1-7/8 in Dia Barrel, 1-1/2 in OAL, Steel
-
BrandBrowning®
-
UPC662289621644
-
Manufacturer Part Number3748720
-
CountryUSA
-
Taper1-1/2 in/ft
-
MaterialSteel
-
Torque Rating3550 in-lb
-
Screw Size3/8 x 5/8 in
-
Number of Bolt Holes2
-
Barrel Diameter1-7/8 in
-
Keyway Size3/16 x 3/32 in
-
Bolt Circle Diameter1-3/4 in
-
Bore Diameter5/8 in
-
Overall Length1-1/2 in
-
Suitable For Use WithBrowning® Sprockets and HPT Chain Synchronous Belt Drives
-
Alternative Part Number1215X5/8
-
UNSPSC31163205
-
Package Description1/PK
-
Warranty1 Year
-
Catalog
-
Instruction/Installation Manual
Recently Viewed
Browning® 3748720 Taper Lock Bushing, 5/8 in Dia Bore, 1-7/8 in Dia Barrel, 1-1/2 in OAL, Steel
Sure-Grip® quick detachable bushings are easy to install and remove. Split-through flange and taper provide a true clamp on the shaft that is equivalent to a shrink fit. All sizes except JA and QT have a set screw over the key to help maintain the bushing's position on the shaft until the cap screws are securely tightened. Versatile Sure-Grip® bushings permit the mounting of the same mating part on shafts of different diameters and the mounting of different sheaves on the same shaft using the same bushing.
