Browning 3/4"-ID 2517-STYLE TL BUSHINGS BRW 2517 X 3/4

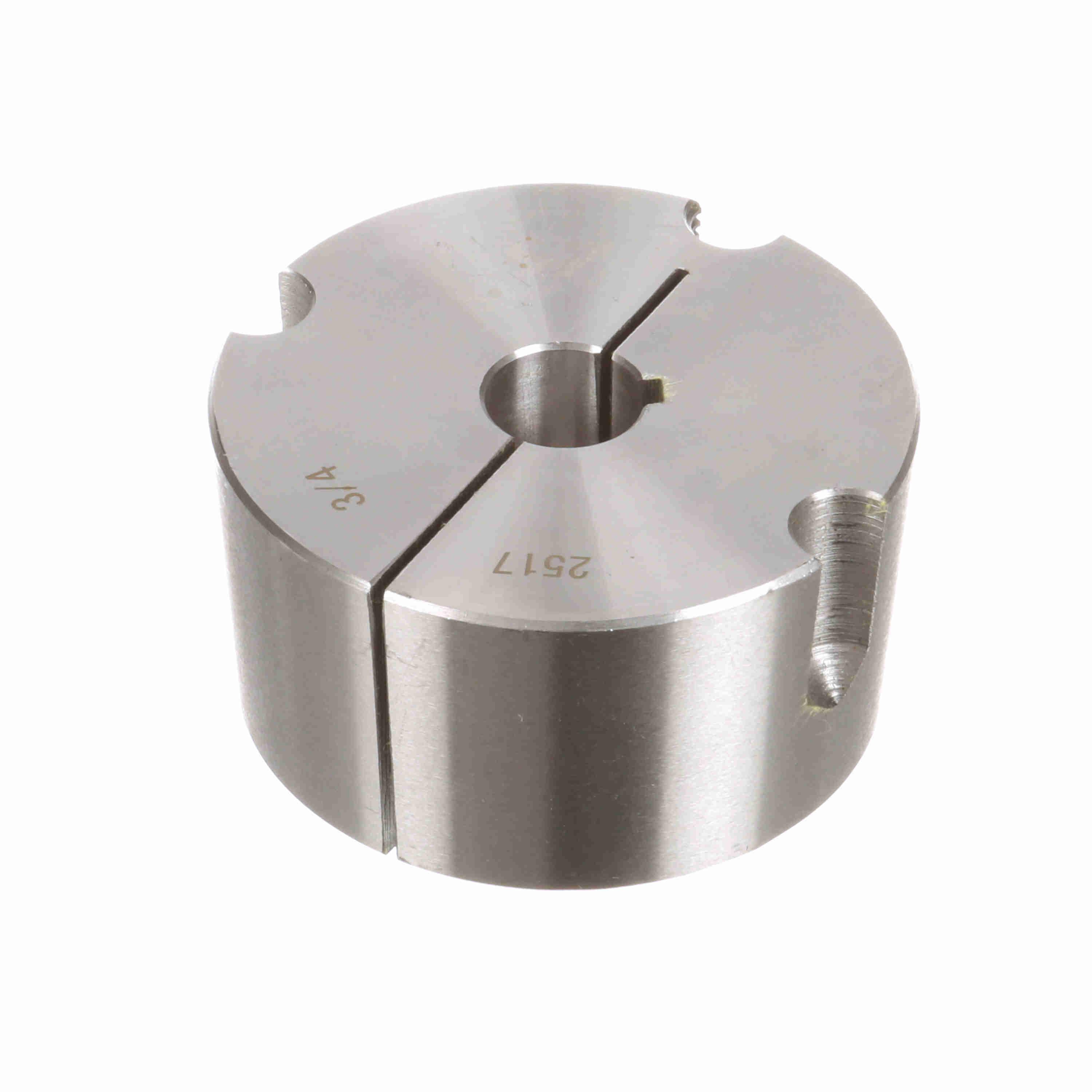

Browning® 3749504 Taper Lock Bushing, 3/4 in Dia Bore, 3-3/8 in Dia Barrel, 1-3/4 in OAL, Steel
-
BrandBrowning®
-
UPC662289616657
-
Manufacturer Part Number3749504
-
CountryUSA
-
Taper1-1/2 in/ft
-
MaterialSteel
-
Torque Rating11600 in-lb
-
Screw Size1/2 x 1 in
-
Number of Bolt Holes2
-
Barrel Diameter3-3/8 in
-
Keyway Size3/16 x 3/32 in
-
Bolt Circle Diameter3-1/4 in
-
Bore Diameter3/4 in
-
Overall Length1-3/4 in
-
Suitable For Use WithBrowning® Sprockets and HPT Chain Synchronous Belt Drives
- Size 2517 bushing
- Mounts flush in products no protruding flanges to interfere with the drive
- Key to key drive cap screws act as an external key
- 1-1/2 in/ft taper on barrel since this is a non-self locking taper it provides ease of installation and removal of products from the shaft
-
Alternative Part Number2517X3/4
-
UNSPSC31163205
-
Package Description1/PK
-
Warranty1 Year
-
Catalog
-
Instruction/Installation Manual
