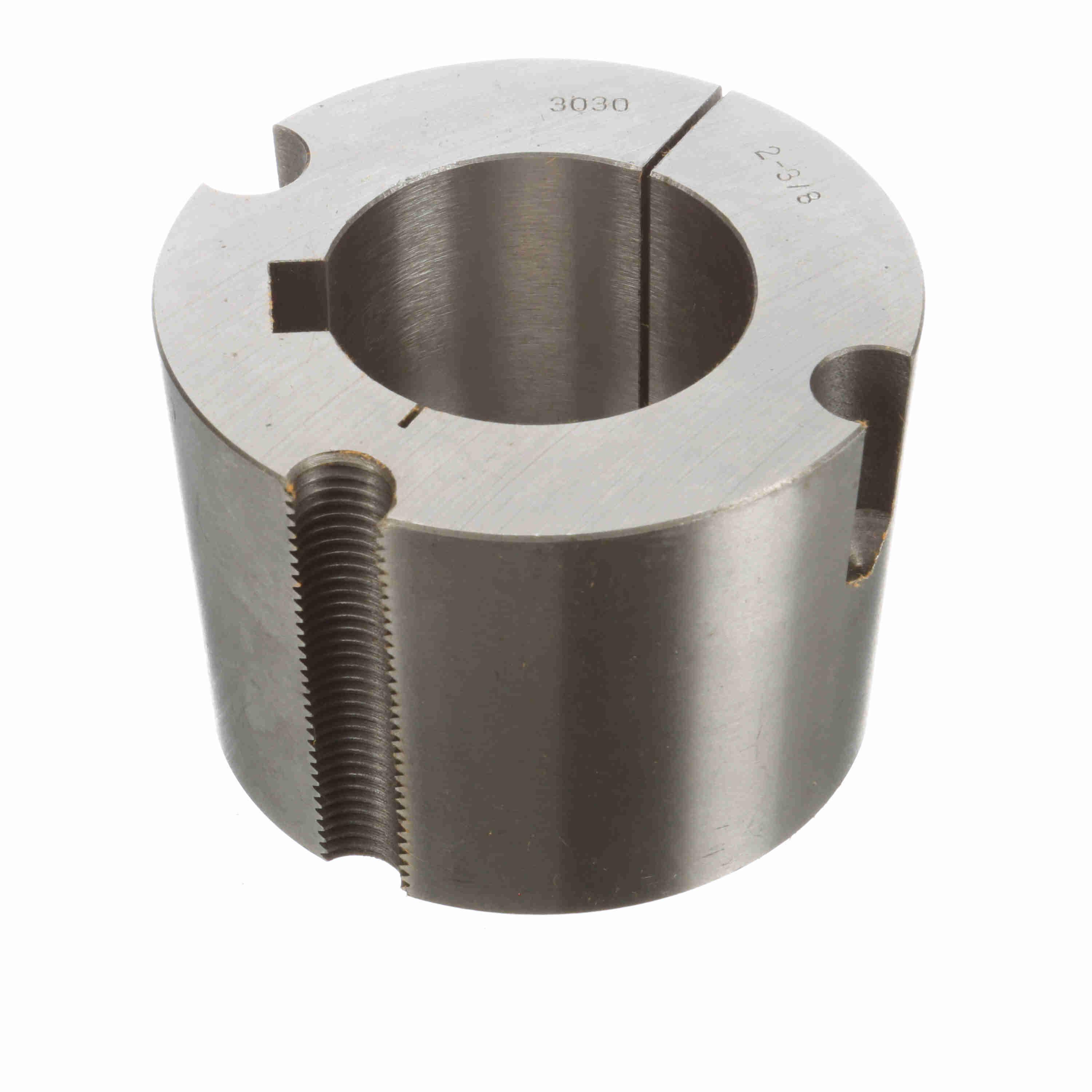

Browning® 3750601 Taper Lock Bushing, 2-3/8 in Dia Bore, 4-1/4 in Dia Barrel, 3 in OAL, Steel
Browning® 3750601 Taper Lock Bushing, 2-3/8 in Dia Bore, 4-1/4 in Dia Barrel, 3 in OAL, Steel
-
BrandBrowning®
-
UPC662289618170
-
Manufacturer Part Number3750601
-
CountryUSA
-
Taper1-1/2 in/ft
-
MaterialSteel
-
Torque Rating24000 in-lb
-
Screw Size5/8 x 1-1/4 in
-
Number of Bolt Holes2
-
Barrel Diameter4-1/4 in
-
Keyway Size5/8 x 5/16 in
-
Bolt Circle Diameter4 in
-
Bore Diameter2-3/8 in
-
Overall Length3 in
-
Suitable For Use WithBrowning® Sprockets and HPT Chain Synchronous Belt Drives
- Mounts flush in products - No protruding flanges to interfere with the drive
-
Alternative Part Number3030X 2 3/8
-
UNSPSC31163205
-
Package DescriptionEACH
-
Warranty1 Year
-
Catalog
-
Instruction/Installation Manual
