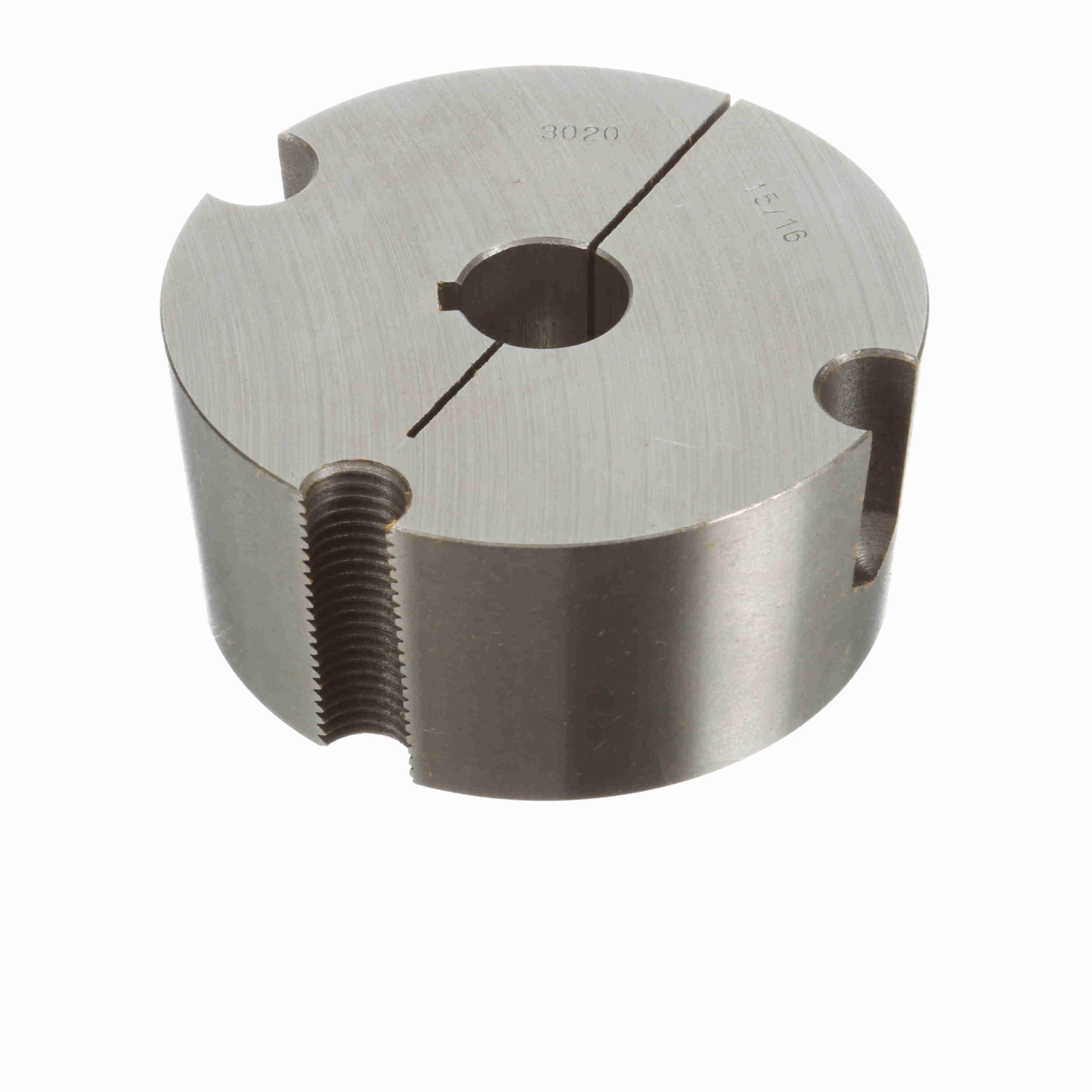

Browning® 3750056 Taper Lock Bushing, 15/16 in Dia Bore, 4-1/4 in Dia Barrel, 2 in OAL, Steel

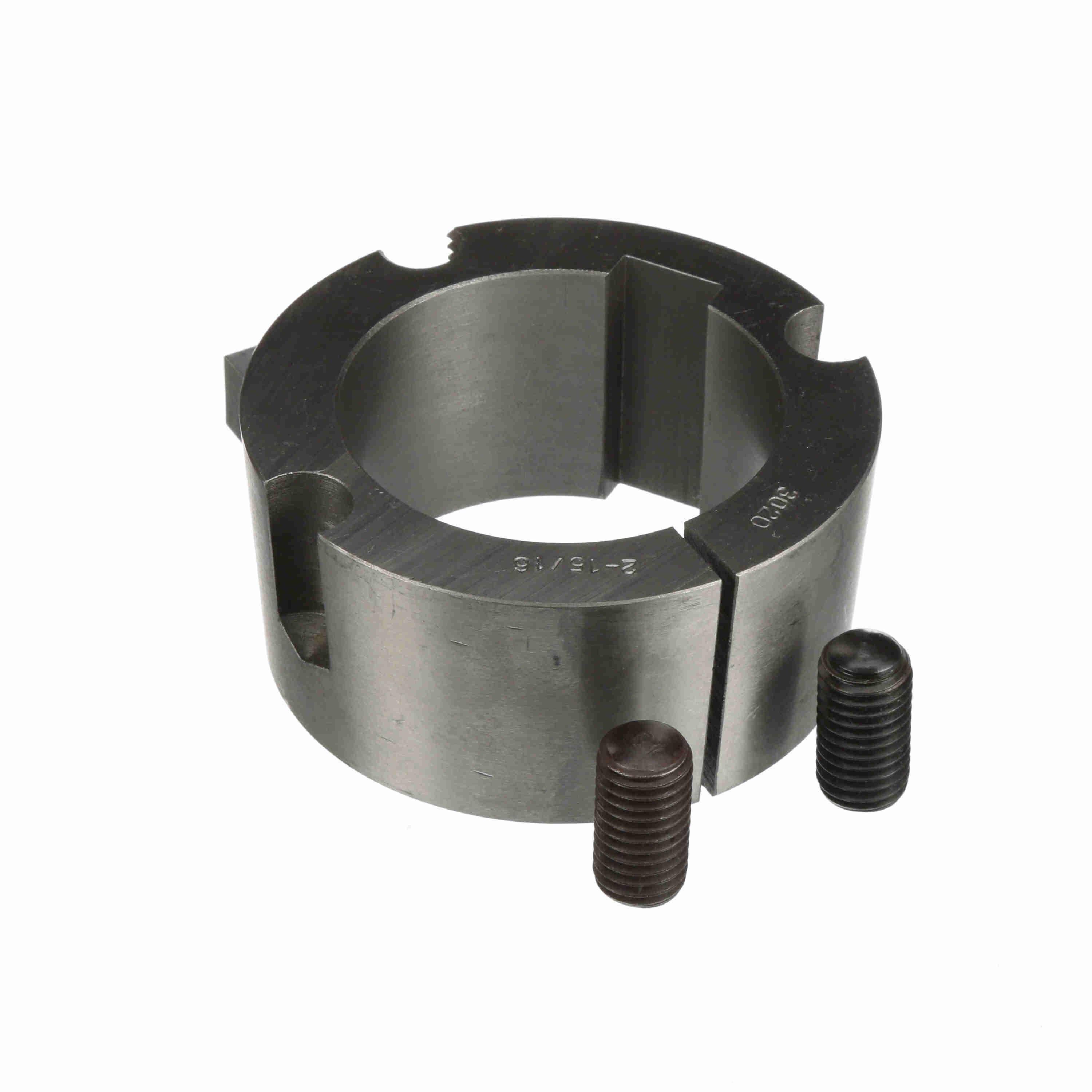

Browning® 3750379 Taper Bore Bushing, 2-15/16 in Dia Bore, 4-1/4 in Dia Barrel, 2 in OAL
-
BrandBrowning®
-
UPC662289617722
-
Manufacturer Part Number3750056
-
CountryUSA
-
Taper1-1/2 in/ft
-
MaterialSteel
-
Torque Rating24000 in-lb
-
Screw Size5/8 x 1-1/4 in
-
Number of Bolt Holes2
-
Barrel Diameter4-1/4 in
-
Keyway Size1/4 x 1/8 in
-
Bolt Circle Diameter4 in
-
Bore Diameter15/16 in
-
Overall Length2 in
-
Suitable For Use WithBrowning® Sprockets and HPT Chain Synchronous Belt Drives
- Mounts flush in products - No protruding flanges to interfere with the drive
-
Alternative Part Number3020X15/16
-
UNSPSC31163205
-
Package Description1/PK
-
Warranty1 Year
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Instruction/Installation Manual
-
Catalog
-
Catalog
