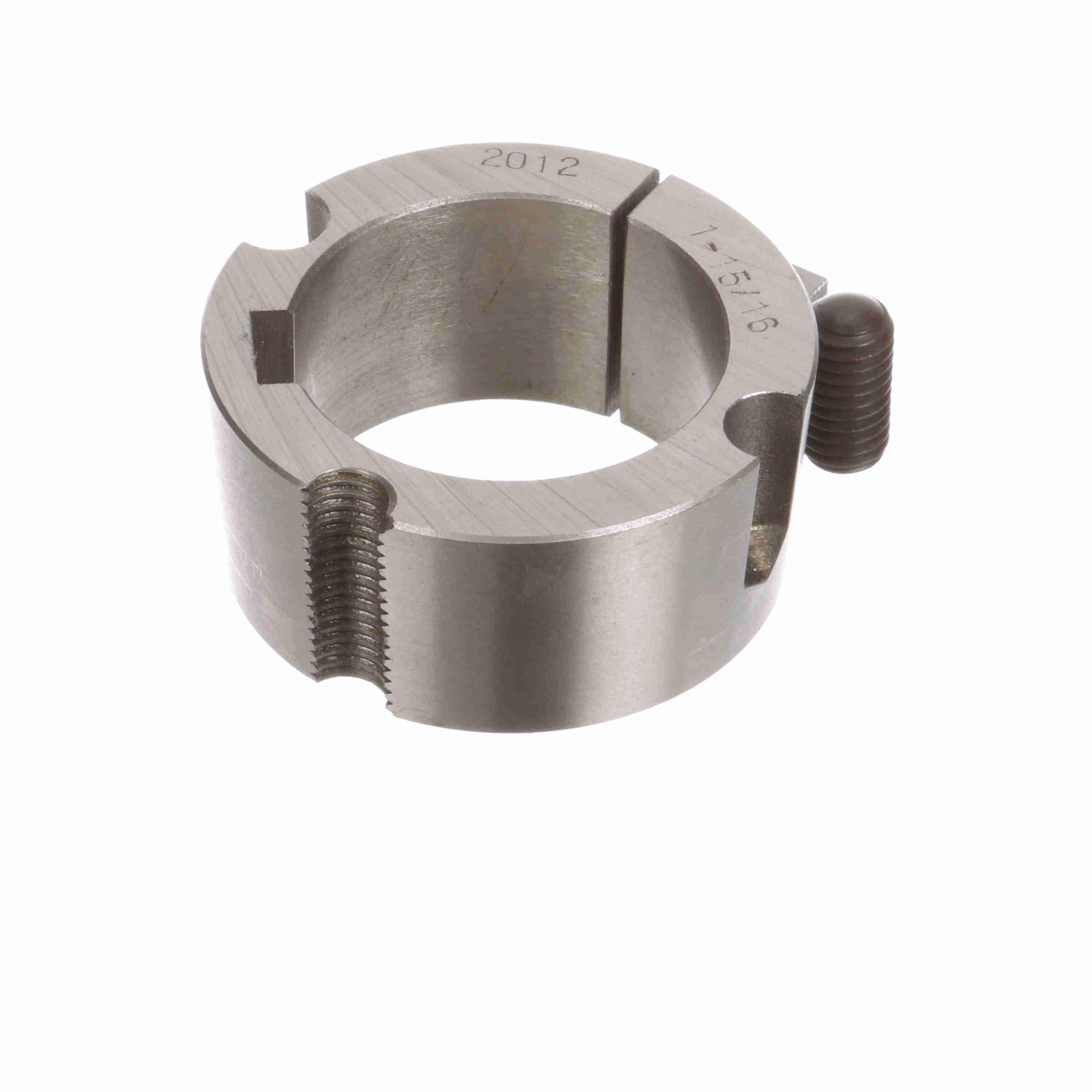

Browning® 3749447 Taper Lock Bushing, 1-15/16 in Dia Bore, 2-3/4 in Dia Barrel, 1-1/4 in OAL, Steel
Browning® 3749447 Taper Lock Bushing, 1-15/16 in Dia Bore, 2-3/4 in Dia Barrel, 1-1/4 in OAL, Steel
-
BrandBrowning®
-
UPC662289621736
-
Manufacturer Part Number3749447
-
CountryUSA
-
Taper1-1/2 in/ft
-
MaterialSteel
-
Torque Rating7150 in-lb
-
Screw Size7/16 x 7/8 in
-
Number of Bolt Holes2
-
Barrel Diameter2-3/4 in
-
Keyway Size1/2 x 1/4 in
-
Bolt Circle Diameter2-5/8 in
-
Bore Diameter1-15/16 in
-
Overall Length1-1/4 in
-
Suitable For Use WithBrowning® Sprockets and HPT Chain Synchronous Belt Drives
- Size 2012 bushing
- Mounts flush in products no protruding flanges to interfere with the drive
- Key to key drive cap screws act as an external key
- 1-1/2 in/ft taper on barrel since this is a non-self locking taper it provides ease of installation and removal of products from the shaft
-
Alternative Part Number2012X 1 15/16
-
UNSPSC31163205
-
Package DescriptionEACH
-
Warranty1 Year
-
