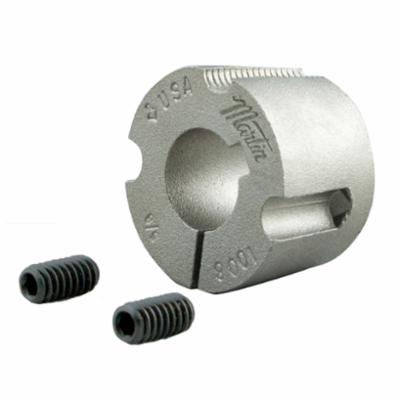

Martin 2012 1 7/8 Standard Taper Lock Bushing, 1-7/8 in Dia Bore, 2-3/4 in Dia Barrel, 1-1/4 in OAL, Steel
Martin 2012 1 7/8 Standard Taper Lock Bushing, 1-7/8 in Dia Bore, 2-3/4 in Dia Barrel, 1-1/4 in OAL, Steel
-
BrandMartin
-
UPC697950034447
-
Manufacturer Part Number2012 1 7/8
-
CountryUSA|Canada
-
Taper8 deg
-
MaterialSteel
-
Torque Rating7150 in-lb
-
TypeStandard
-
Screw Size7/16 x 7/8 in
-
Number of Bolt Holes2
-
Hub Diameter3-7/8 in
-
Barrel Diameter2-3/4 in
-
Keyway Size1/2 x 1/4 in
-
Bolt Circle Diameter2-5/8 in
-
Bore Diameter1-7/8 in
-
Overall Length1-1/4 in
- Size 2012 bushing
- TB Bushings are designed for flush mounting and do not have a flange
- Tolerances meet or exceed industry standards
- Precise machining and processes ensure consistent finish and high quality
- Interchangeable with other manufacturersā taper bushings
-
UNSPSC31171605
-
Package Description1/PK
-
Standards/ApprovalsANSI B15.1
-
