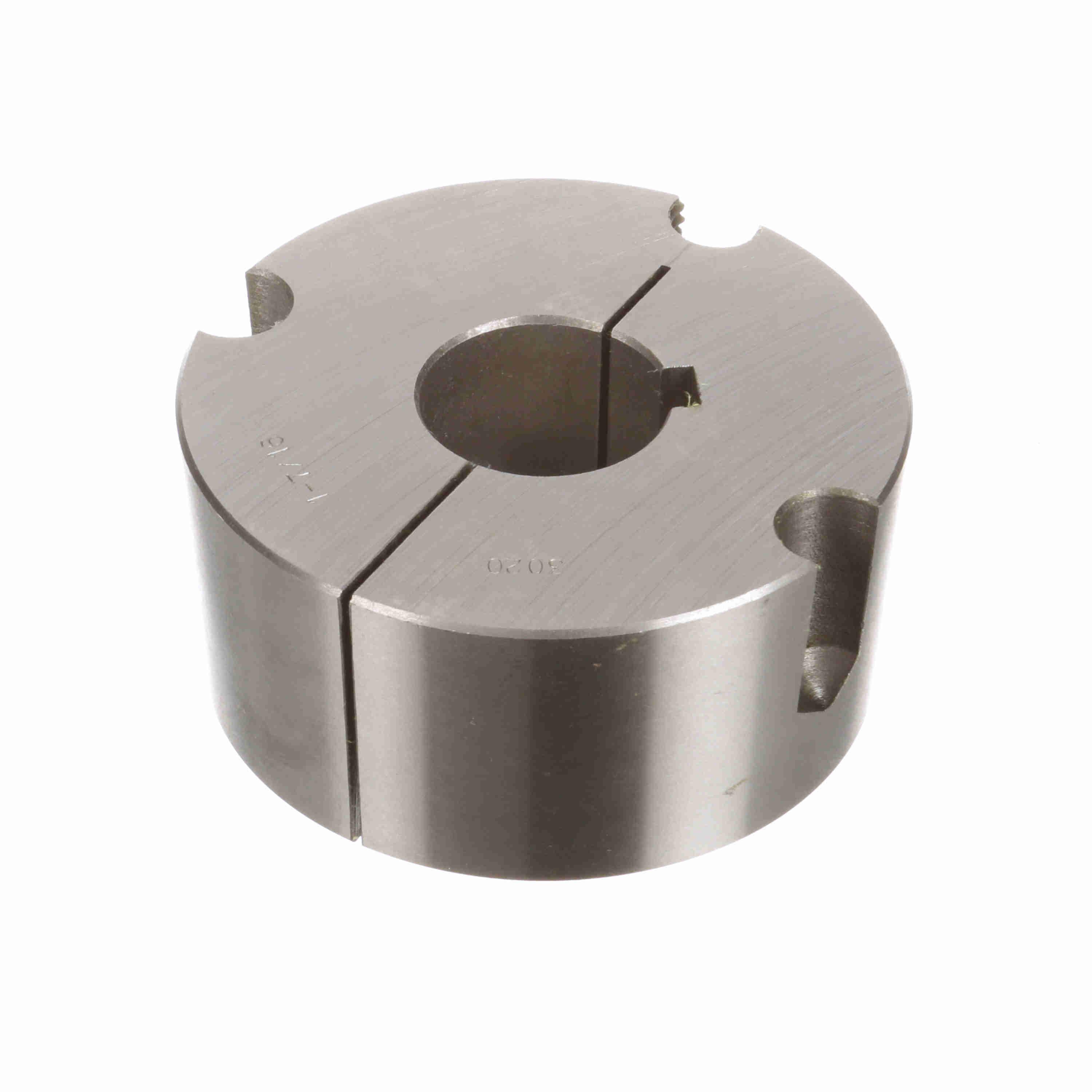

Browning® 3750130 Taper Lock Bushing, 1-7/16 in Dia Bore, 4-1/4 in Dia Barrel, 2 in OAL, Steel
Browning® 3750130 Taper Lock Bushing, 1-7/16 in Dia Bore, 4-1/4 in Dia Barrel, 2 in OAL, Steel
-
BrandBrowning®
-
UPC662289617425
-
Manufacturer Part Number3750130
-
CountryUSA
-
Taper1-1/2 in/ft
-
MaterialSteel
-
Torque Rating24000 in-lb
-
Screw Size5/8 x 1-1/4 in
-
Number of Bolt Holes2
-
Barrel Diameter4-1/4 in
-
Keyway Size3/8 x 3/16 in
-
Bolt Circle Diameter4 in
-
Bore Diameter1-7/16 in
-
Overall Length2 in
-
Suitable For Use WithBrowning® Sprockets and HPT Chain Synchronous Belt Drives
- Size 3020 bushing
- Key to key drive cap screws act as an external key
- 1-1/2 in/ft taper on barrel since this is a non-self locking taper it provides ease of installation and removal of products from the shaft
-
Alternative Part Number3020X 1 7/16
-
UNSPSC31163205
-
Package Description1/PK
-
Warranty1 Year
-
Instruction/Installation Manual
-
Catalog
