Browning 1-3/8"-ID 2012-STYLE TL BUSHINGS BRW 2012 X 1-3/8

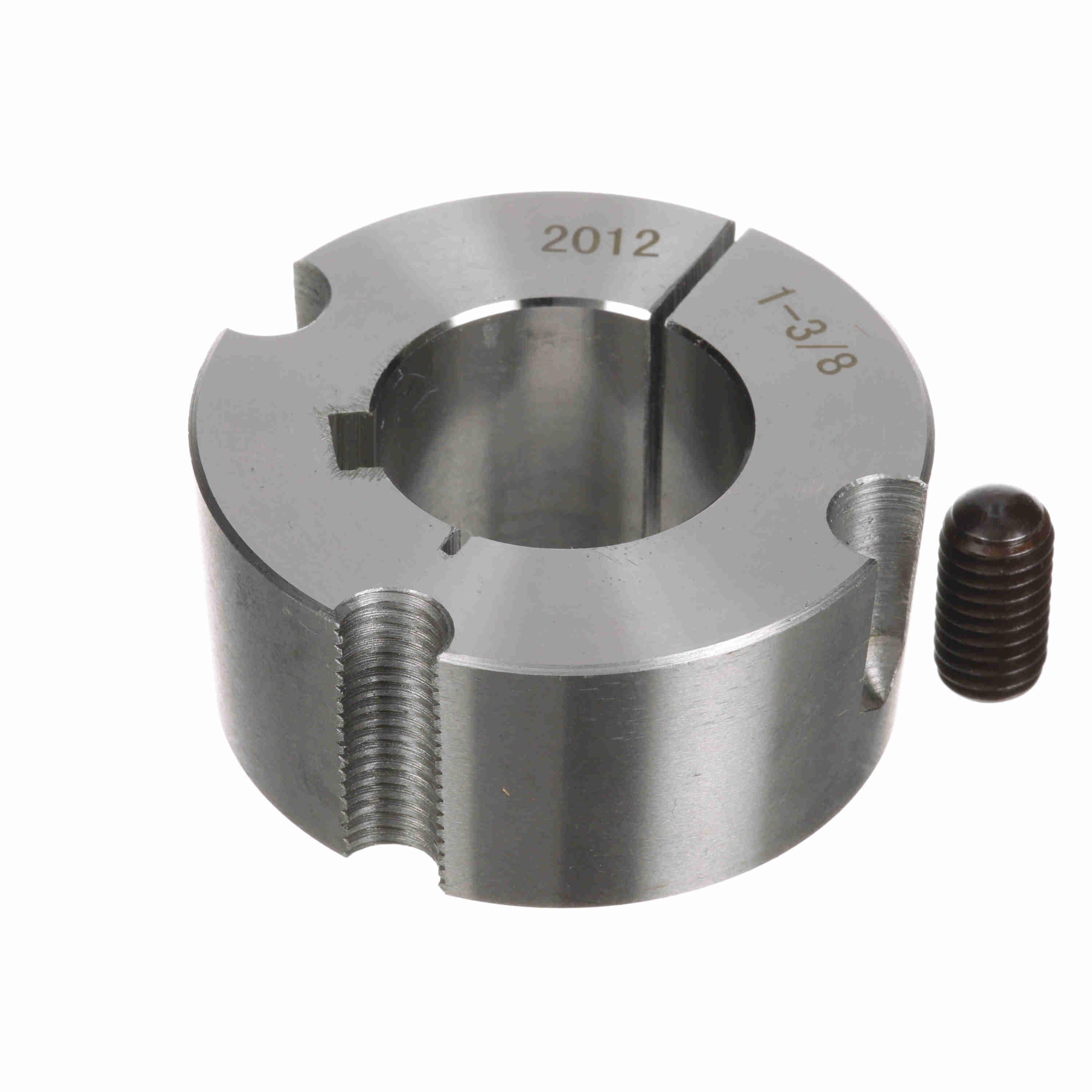

Browning® 3749355 Taper Lock Bushing, 1-3/8 in Dia Bore, 2-3/4 in Dia Barrel, 1-1/4 in OAL, Steel
-
BrandBrowning®
-
UPC662289614080
-
Manufacturer Part Number3749355
-
CountryUSA
-
Taper1-1/2 in/ft
-
MaterialSteel
-
Torque Rating7150 in-lb
-
Screw Size7/16 x 7/8 in
-
Number of Bolt Holes2
-
Barrel Diameter2-3/4 in
-
Keyway Size5/16 x 5/32 in
-
Bolt Circle Diameter2-5/8 in
-
Bore Diameter1-3/8 in
-
Overall Length1-1/4 in
-
Suitable For Use WithBrowning® Sprockets and HPT Chain Synchronous Belt Drives
-
Alternative Part Number2012X 1 3/8
-
UNSPSC31163205
-
Package Description1/PK
-
Warranty1 Year
-
Catalog
-
Instruction/Installation Manual
