Dodge® 117094 Stock Bore Taper Lock Bushing, 1-3/4 in Dia Bore, 2-3/4 in Dia Barrel, 1-1/4 in OAL, Sintered Steel

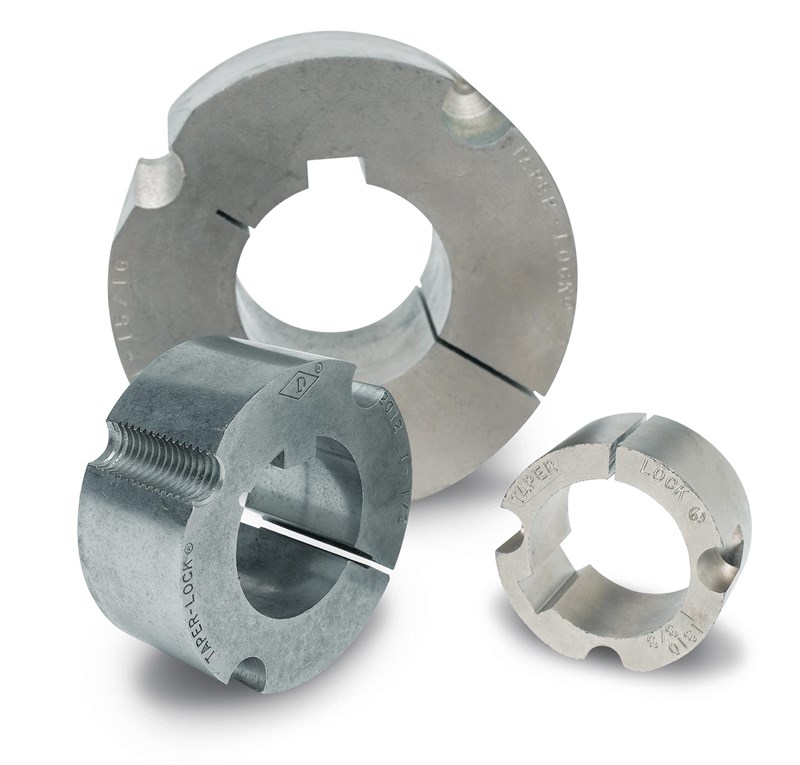

Dodge® Taper-Lock® bushings are flangeless for clean, compact application. They are engineered with an 8 deg taper and a flush-mounted design with no protruding parts providing secure locking and elimination of wobble.
-
BrandDodge®
-
UPC782475508747
-
Manufacturer Part Number117094
-
CountryUSA
-
Taper8 deg
-
MaterialSintered Steel
-
Torque Rating7150 in-lb
-
TypeStock Bore
-
Screw Size7/16 x 7/8 in
-
Number of Bolt Holes2
-
Hub Diameter3.88 in
-
Barrel Diameter2-3/4 in
-
Keyway Size3/8 x 3/16 in
-
Bolt Circle Diameter2.63 in
-
Bore Diameter1-3/4 in
-
Overall Length1-1/4 in
- Size 2012 bushing
- Clean and compact design
- Easy On/Off operation
- 8 deg taper grips tight, holds tight, runs true and no wobble
- Flush mounting and no protruding parts
-
Alternative Part Number2012 X 1 3/4-KW
-
UNSPSC31171605
-
Package DescriptionEACH
-
Standards/ApprovalsABMA|AGMA|BSA|CEMA|MPTA|PTDA Standards
-
WarrantyLimited
-
