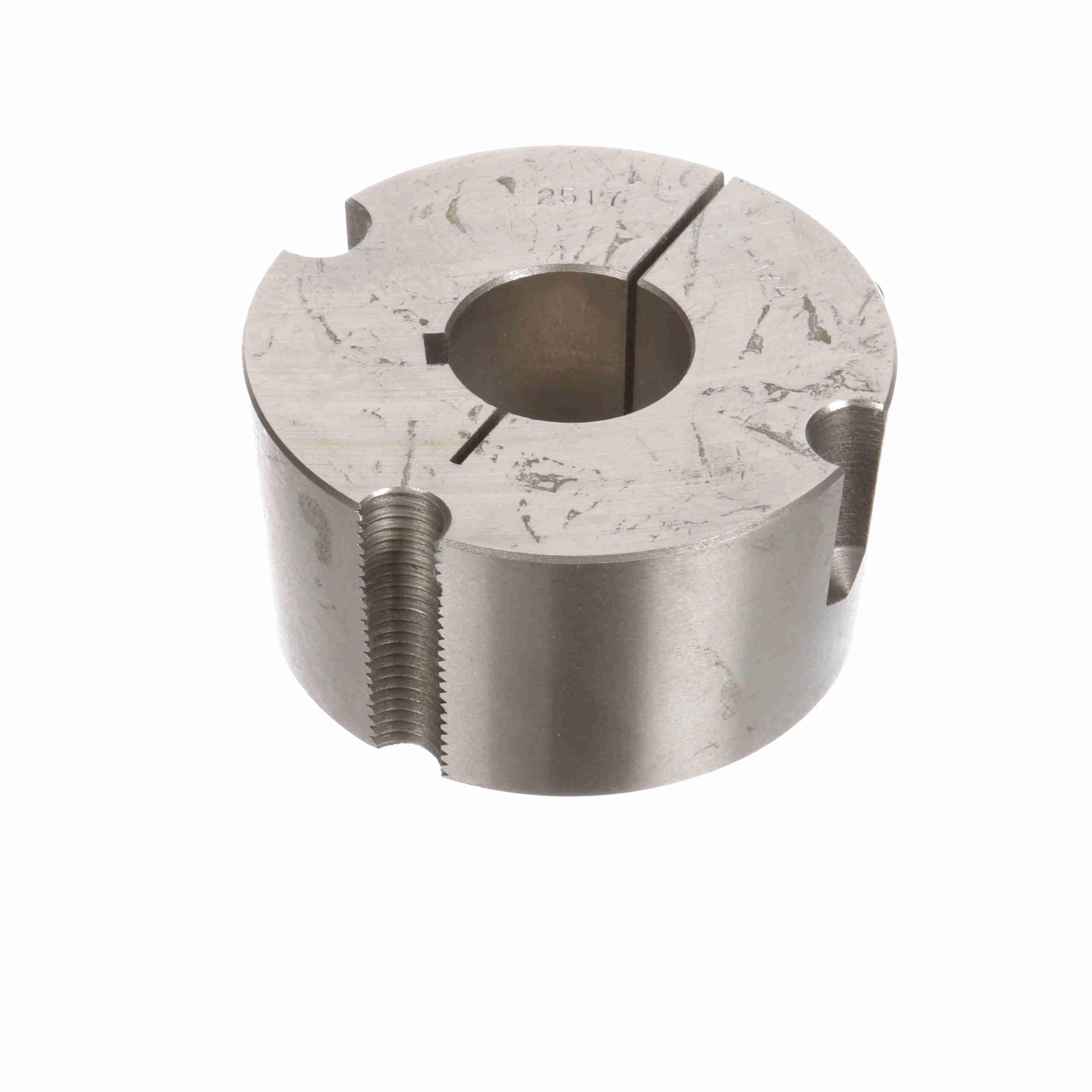

Browning® 3749587 Taper Lock Bushing, 1-1/4 in Dia Bore, 3-3/8 in Dia Barrel, 1-3/4 in OAL, Steel
Browning® 3749587 Taper Lock Bushing, 1-1/4 in Dia Bore, 3-3/8 in Dia Barrel, 1-3/4 in OAL, Steel
-
BrandBrowning®
-
UPC662289615209
-
Manufacturer Part Number3749587
-
CountryUSA
-
Taper1-1/2 in/ft
-
MaterialSteel
-
Torque Rating11600 in-lb
-
Screw Size1/2 x 1 in
-
Number of Bolt Holes2
-
Barrel Diameter3-3/8 in
-
Keyway Size1/4 x 1/8 in
-
Bolt Circle Diameter3-1/4 in
-
Bore Diameter1-1/4 in
-
Overall Length1-3/4 in
-
Suitable For Use WithBrowning® Sprockets and HPT Chain Synchronous Belt Drives
- Size 2517 bushing
- Mounts flush in products no protruding flanges to interfere with the drive
- Key to key drive cap screws act as an external key
- 1-1/2 in/ft taper on barrel since this is a non-self locking taper it provides ease of installation and removal of products from the shaft
-
Alternative Part Number2517X 1 1/4
-
UNSPSC31163205
-
Package DescriptionEACH
-
Warranty1 Year
-
