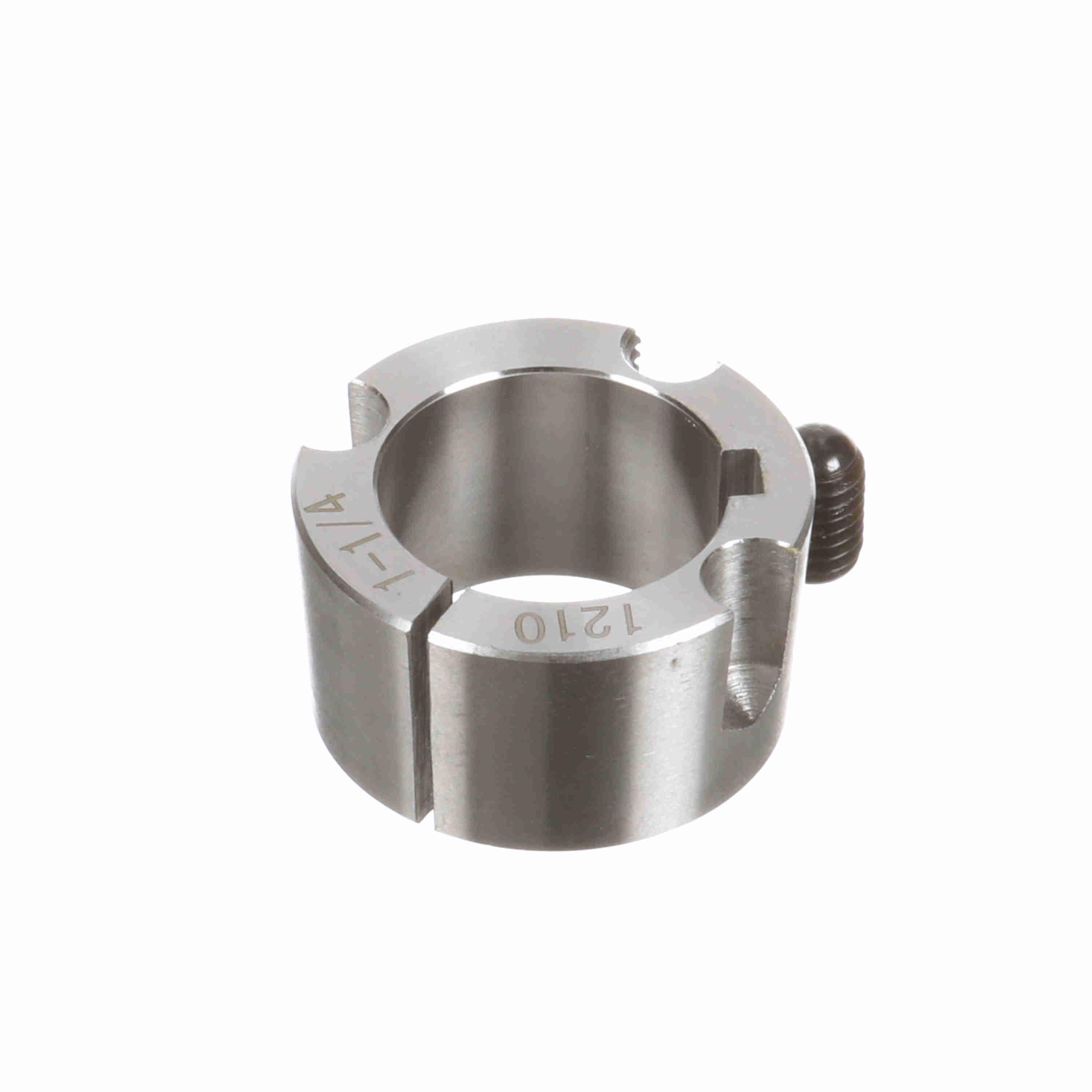

Browning® 3748696 Taper Lock Bushing, 1-1/4 in Dia Bore, 1-7/8 in Dia Barrel, 1 in OAL, Steel
Browning® 3748696 Taper Lock Bushing, 1-1/4 in Dia Bore, 1-7/8 in Dia Barrel, 1 in OAL, Steel
-
BrandBrowning®
-
UPC662289610983
-
Manufacturer Part Number3748696
-
CountryUSA
-
Taper1-1/2 in/ft
-
MaterialSteel
-
Torque Rating3600 in-lb
-
Screw Size3/8 x 5/8 in
-
Number of Bolt Holes2
-
Barrel Diameter1-7/8 in
-
Keyway Size1/4 x 1/8 in
-
Bolt Circle Diameter1-3/4 in
-
Bore Diameter1-1/4 in
-
Overall Length1 in
-
Suitable For Use WithBrowning® Sprockets and HPT Chain Synchronous Belt Drives
-
Alternative Part Number1210X 1 1/4
-
UNSPSC31163205
-
Package DescriptionEACH
-
Warranty1 Year
-
Catalog
-
Instruction/Installation Manual
