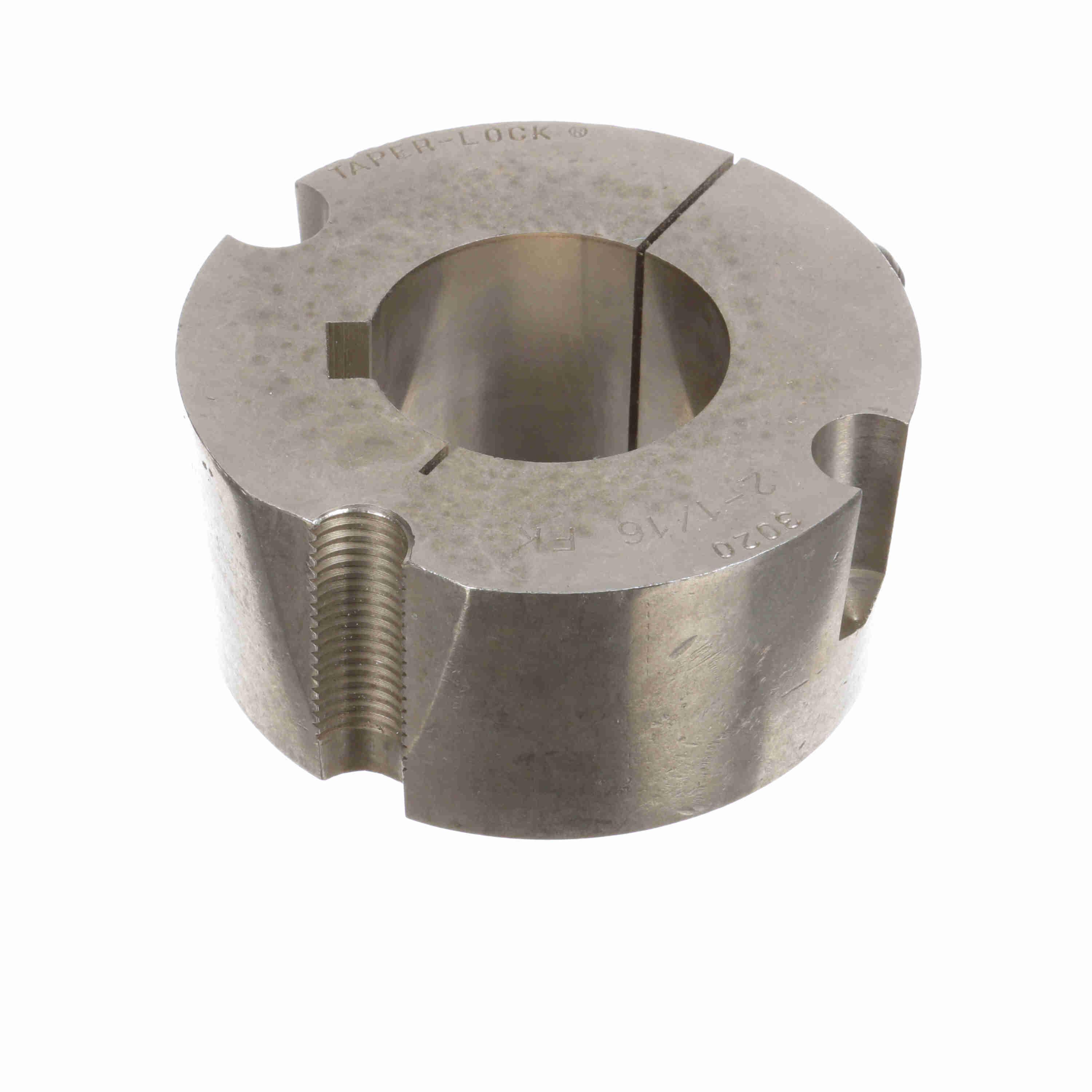

Browning® 3750239 Taper Bore Bushing, 2-1/16 in Dia Bore, 4-1/4 in Dia Barrel, 2 in OAL
Browning® 3750239 Taper Bore Bushing, 2-1/16 in Dia Bore, 4-1/4 in Dia Barrel, 2 in OAL
-
BrandBrowning®
-
UPC662289617487
-
Manufacturer Part Number3750239
-
CountryUSA
-
Taper1-1/2 in/ft
-
Torque Rating24000 in-lb
-
Screw Size5/8 in Dia x 1-1/4 in L
-
Number of Bolt Holes2
-
Barrel Diameter4-1/4 in
-
Keyway Size1/2 x 1/4 in
-
Bolt Circle Diameter4 in
-
Bore Diameter2-1/16 in
-
Overall Length2 in
-
Suitable For Use WithGearbelt® Sprockets, HPT® and HPT Chain™ Synchronous Belt Drives
- Mounts flush in products - No protruding flanges to interfere with the drive
-
Alternative Part Number3020X 2 1/16
-
UNSPSC31163205
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
Instruction/Installation Manual
-
Catalog
-
Warranty Information
