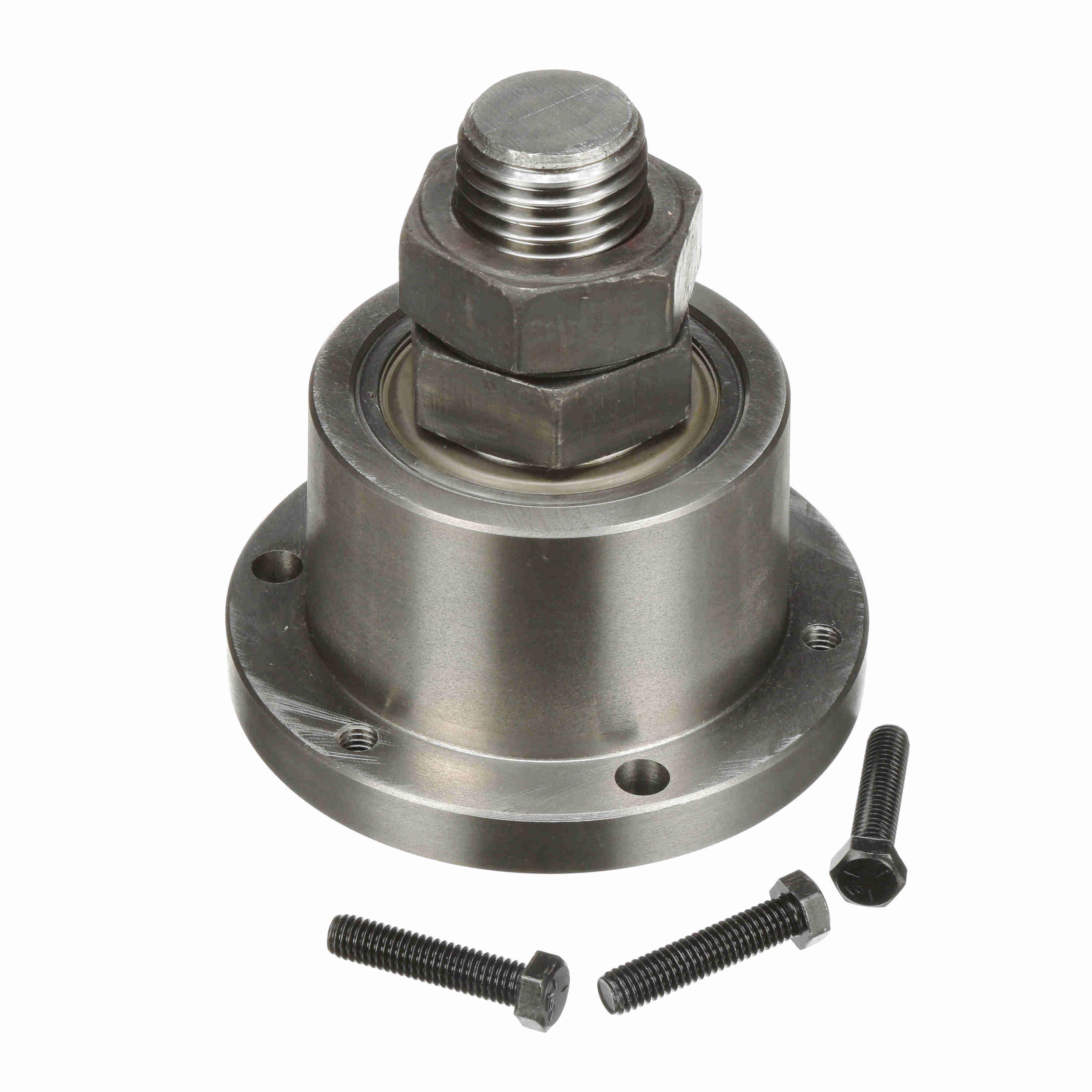

Browning® 1070473 Type R1 Split-Taper Idler Shaft Bushing, 1-1/2 in Dia Bore, 5-3/8 in Dia Flange, 6-1/2 in OAL
Browning® 1070473 Type R1 Split-Taper Idler Shaft Bushing, 1-1/2 in Dia Bore, 5-3/8 in Dia Flange, 6-1/2 in OAL
-
BrandBrowning®
-
UPC662289250875
-
Manufacturer Part Number1070473
-
CountryUSA
-
Flange Diameter5-3/8 in
-
Flange Thickness5/8 in
-
TypeType R1
-
Number of Bolt Holes2
-
Bolt Circle Diameter4-5/8 in
-
Bore Diameter1-1/2 in
-
Overall Length6-1/2 in
-
Suitable For Use WithGearbelt® Pulleys Gears Hardened and Standard Sprockets
- Idler bushings provide "Idler" componentry in the following parts - FHP, Multiple and 358 Sheaves, Gearbelt Pulleys, Spur Gears and Sprockets
- 3/4 in/ft Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part NumberIDR1 1 1/2
-
UNSPSC31171600
-
Package DescriptionEACH
-
Warranty1 Year
-
Warranty Information
-
Catalog
-
Instruction/Installation Manual
