Browning B-2-STYLE WELD-ON BUSHING HUBS BRW H-B-2-HUB

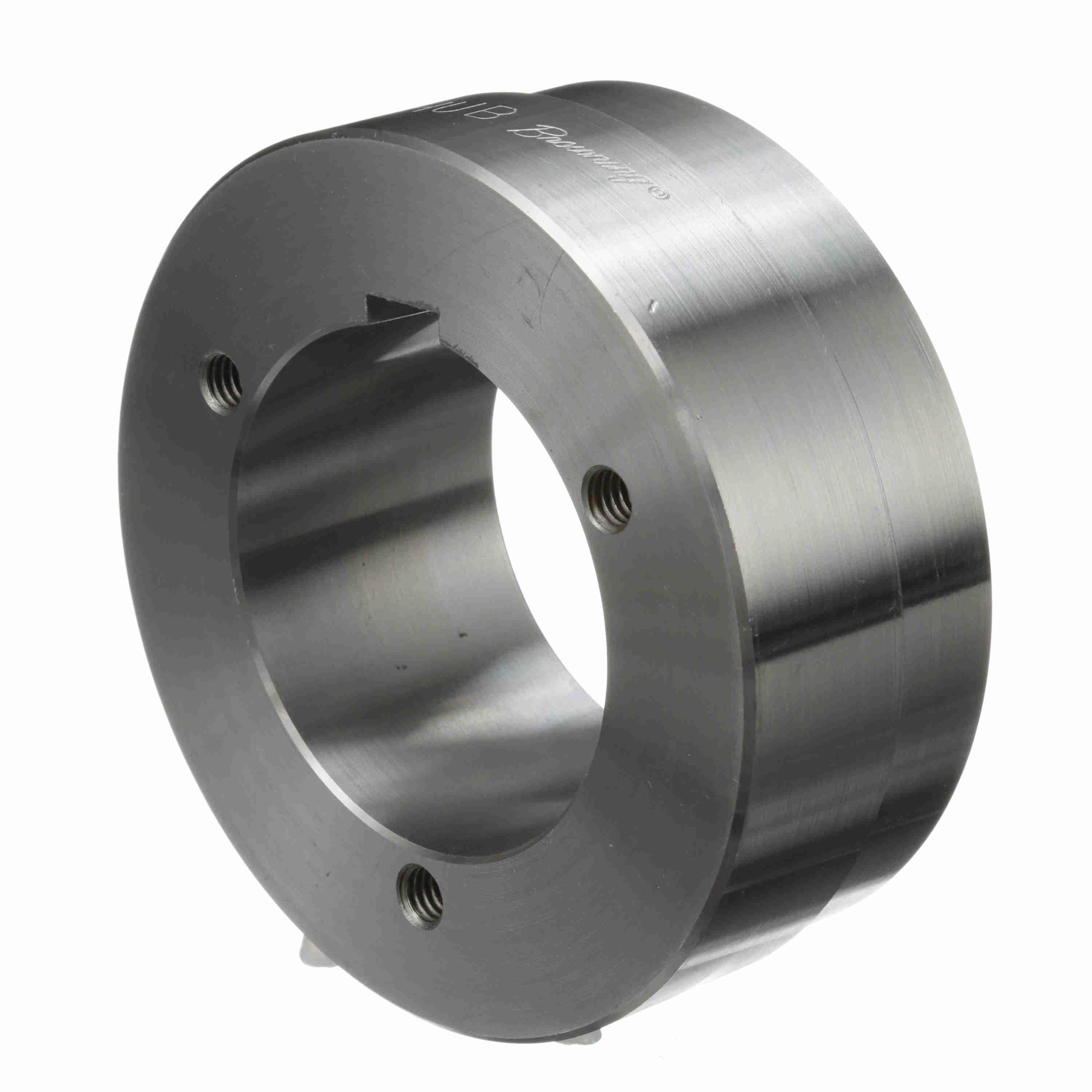

Browning® 3851581 B2 Series Weld-On Hub, 2.623 in Dia Bore, 4-1/2 in OD, 3-1/8 in Dia Bolt Circle, 1-3/4 in OAL, Steel
-
BrandBrowning®
-
UPC662289700288
-
Manufacturer Part Number3851581
-
CountryUSA
-
MaterialSteel
-
Number of Bolt Holes3
-
SeriesB2 Series
-
Bolt Circle Diameter3-1/8 in
-
Outside Diameter4-1/2 in
-
Bore Diameter2.623 in
-
Overall Length1-3/4 in
-
Pilot Diameter4-3/8 in
- Browning steel hubs available for split taper bushing and available in minimum bore
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part NumberHB2 HUB
-
UNSPSC31171901
-
Package DescriptionEACH
-
Warranty1 Year
-
