Browning 1-GRV C-BELT SHEAVES/PULLEYS BRW 1-TC-70

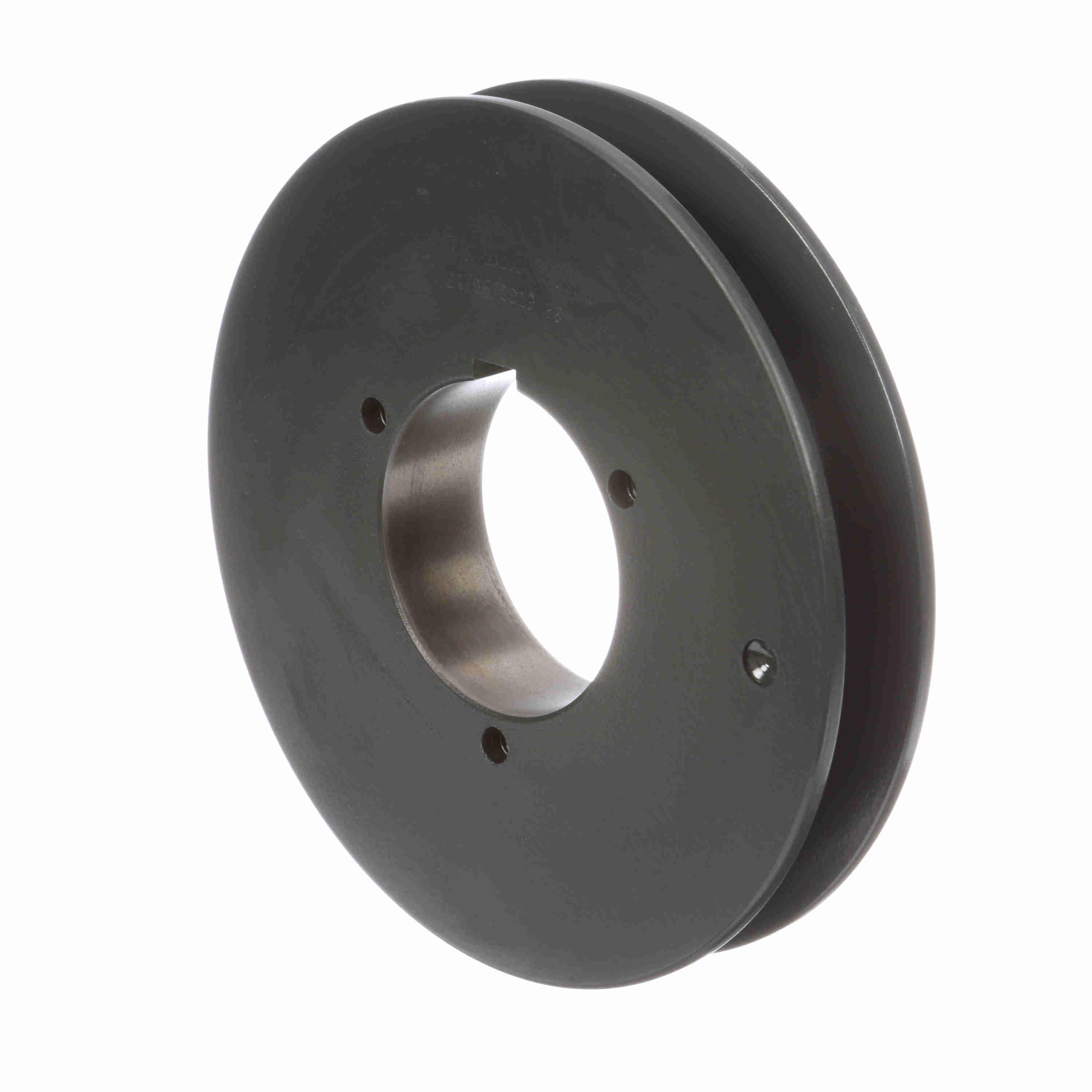

Browning® Classical Gripbelt® 1008986 TC Series Solid Type 10 Single Groove Sheave, Split Taper Bore, 3/4 to 2-11/16 in Dia Bore, 7.4 in OD, 7.4 in Dia Pitch, 1-1/4 in W Face
-
BrandBrowning®
-
UPC662289172757
-
Manufacturer Part Number1008986
-
CountryUSA
-
Face Width1-1/4 in
-
Bushing TypeQ1
-
Pitch Diameter7.4 in
-
MaterialCast Iron
-
TypeSolid Type 10
-
SeriesTC Series
-
Hub Diameter4-1/8 in
-
Hub Projection27/32 in
-
Outside Diameter7.4 in
-
Bore Diameter3/4 to 2-11/16 in
-
Bore TypeSplit Taper
-
Overall Length2-47/64 in
-
Suitable For Use WithC-Cross Section V-Belts
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Wrapped construction - Provides smooth quiet operation
- Single fabric design allows greater flexibility
- Wrapped Belts are more tolerant to slipping and misalignment than Raw Edge Belts
- Close Belt tolerance - Browning Belts offer the Code 1 in Match belt system on all classical and 358 in Belts, allowing easy selection of just one match number for each belt size
- High Tensile Cord - Specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number1TC70
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
