Browning 1-GRV A OR B-BELT H-BUSH SHEAVES BRW BK-150-H

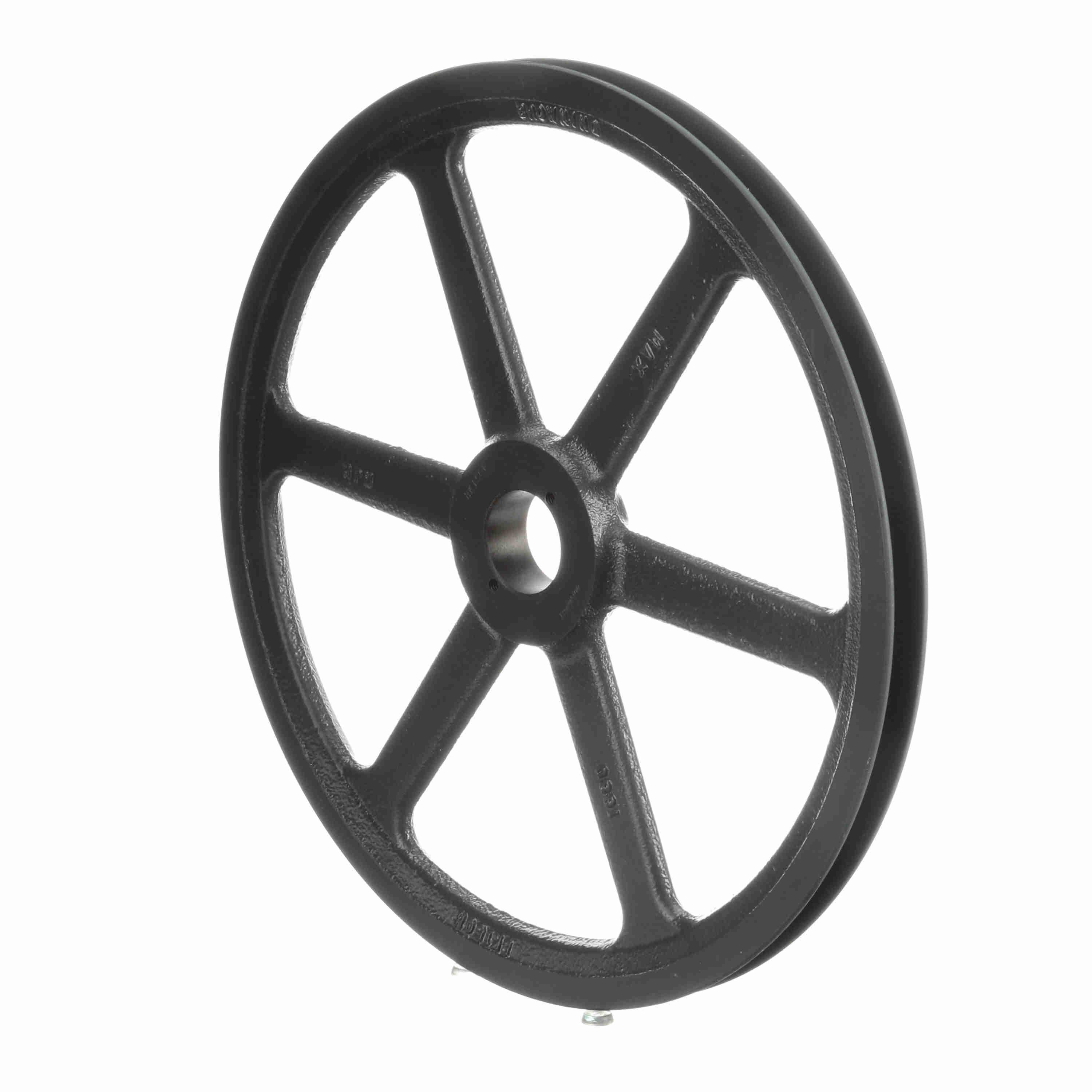

Browning® Classical Gripbelt® 1042688 BK Series Type 3 Single Groove Sheave, Split Taper Bore, 3/8 to 1-1/2 in Dia Bore, 14-3/4 in OD, 14.2 in (A)/14.7 in (B) Dia Pitch, 7/8 in W Face
-
BrandBrowning®
-
UPC662289316175
-
Manufacturer Part Number1042688
-
CountryUSA
-
Face Width7/8 in
-
Bushing TypeH
-
Pitch Diameter14.2 in (A)/14.7 in (B)
-
FinishGray Painted
-
MaterialCast Iron
-
TypeType 3
-
SeriesBK Series
-
Hub Projection17/32 in
-
Outside Diameter14-3/4 in
-
Bore Diameter3/8 to 1-1/2 in
-
Bore TypeSplit Taper
-
Overall Length1-9/16 in
-
Suitable For Use With4L/A and 5L/B Cross Section Belt
- Largest Selection of H Bushed sheaves of any other manufacturer - Browning offers bushed sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Combination Groove - All Browning BK H Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Tightened micro-finish on groove walls for increased belt life
- Split Taper® bushings are highest torque carrying capacity in the Browning® bushing product line
- Double split barrel assures true concentricity
- Largest Selection of H Bushed sheaves of any other manufacturer - Browning offers bushed sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Combination Groove - All Browning BK H Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part NumberBK150H
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
