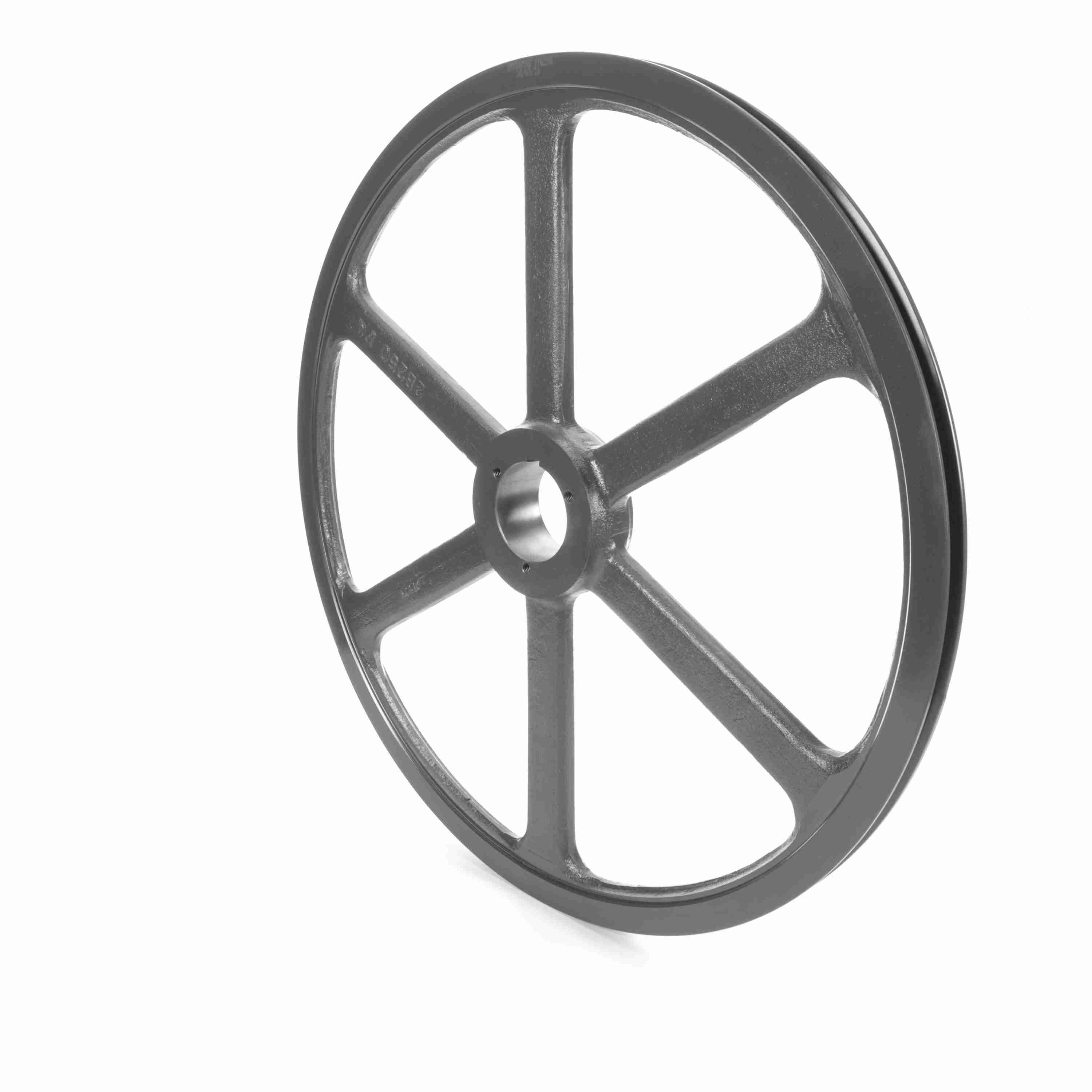

Browning® Classical Gripbelt® 1003045 TB Series Arm Type 16 Single Groove Sheave, Split Taper Bore, 3/4 to 2-11/16 in Dia Bore, 25.35 in OD, 24.8 in (A)/25.3 in (B) Dia Pitch, 1 in W Face
Browning® Classical Gripbelt® 1003045 TB Series Arm Type 16 Single Groove Sheave, Split Taper Bore, 3/4 to 2-11/16 in Dia Bore, 25.35 in OD, 24.8 in (A)/25.3 in (B) Dia Pitch, 1 in W Face
-
BrandBrowning®
-
UPC662289232598
-
Manufacturer Part Number1003045
-
CountryUSA
-
Face Width1 in
-
Bushing TypeQ1
-
Pitch Diameter24.8 in (A)/25.3 in (B)
-
MaterialCast Iron
-
TypeArm Type 16
-
SeriesTB Series
-
Hub Diameter4-1/8 in
-
Hub Projection1-7/32 in
-
Outside Diameter25.35 in
-
Bore Diameter3/4 to 2-11/16 in
-
Bore TypeSplit Taper
-
Overall Length2-53/64 in
-
Suitable For Use WithAB Cross Section V-Belts
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Combination Groove - All Browning B Sheaves permit the running of A and B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Highest torque carrying capacity in the Browning® bushing product line
- Double split barrel assures true concentricity
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Combination Groove - All Browning B Sheaves permit the running of A and B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number1TB250
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
