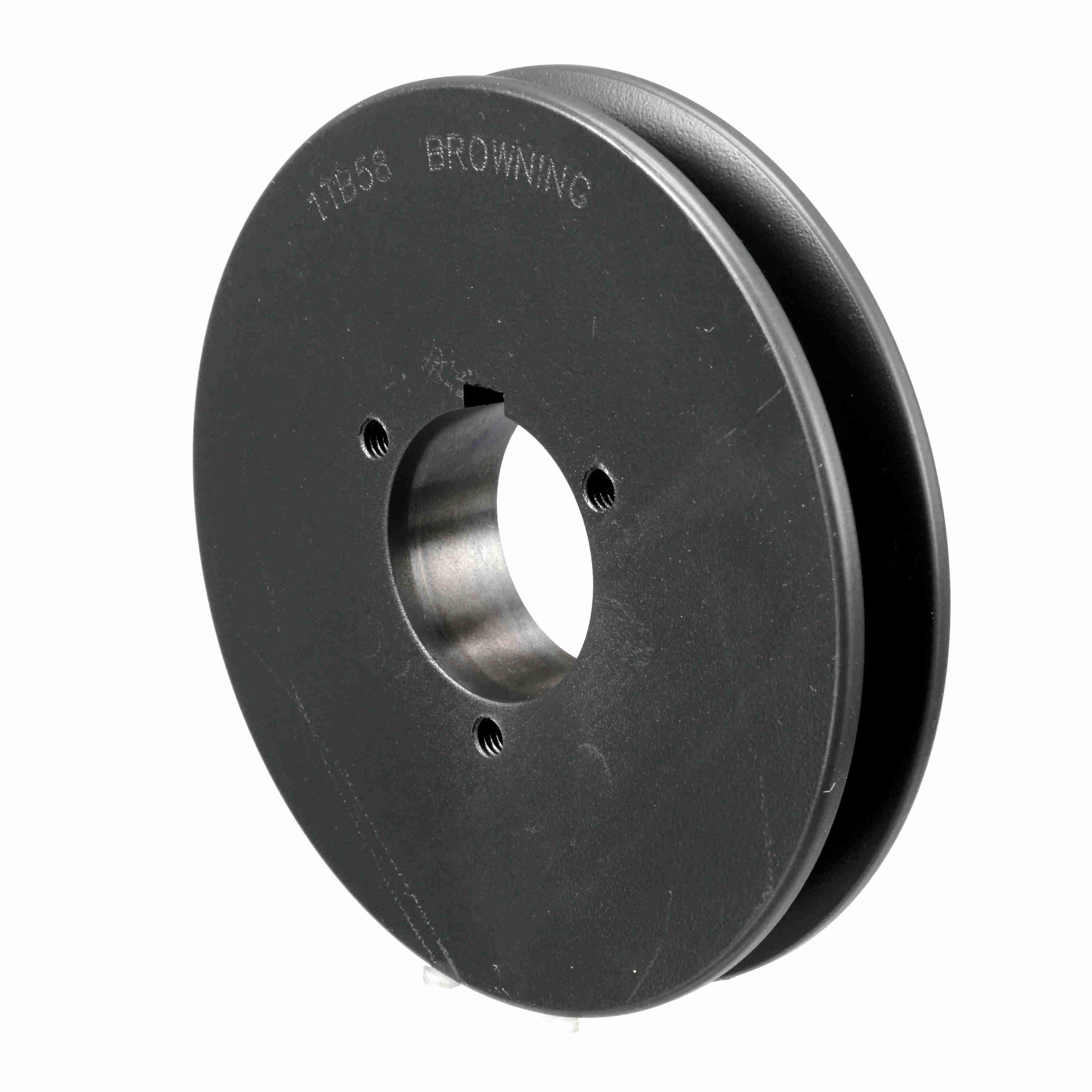

Browning® Classical Gripbelt® 1001908 TB Series Solid Type 10 Single Groove Sheave, Split Taper Bore, 1/2 to 1-3/4 in Dia Bore, 6.15 in OD, 5.6 in (A)/6.1 in (B) Dia Pitch, 1 in W Face
Browning® Classical Gripbelt® 1001908 TB Series Solid Type 10 Single Groove Sheave, Split Taper Bore, 1/2 to 1-3/4 in Dia Bore, 6.15 in OD, 5.6 in (A)/6.1 in (B) Dia Pitch, 1 in W Face
-
BrandBrowning®
-
UPC662289221615
-
Manufacturer Part Number1001908
-
CountryUSA
-
Face Width1 in
-
Bushing TypeP1
-
Pitch Diameter5.6 in (A)/6.1 in (B)
-
MaterialCast Iron
-
TypeSolid Type 10
-
SeriesTB Series
-
Hub Diameter3 in
-
Hub Projection5/8 in
-
Outside Diameter6.15 in
-
Bore Diameter1/2 to 1-3/4 in
-
Bore TypeSplit Taper
-
Overall Length2-9/64 in
-
Suitable For Use WithAB Cross Section V-Belts
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Combination Groove - All Browning B Sheaves permit the running of A and B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Highest torque carrying capacity in the Browning® bushing product line
- Double split barrel assures true concentricity
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Combination Groove - All Browning B Sheaves permit the running of A and B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number1TB58
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
