Browning 1-GRV A OR B OR 5-V-BELT SHEAVES BRW 1-B-5-V-80

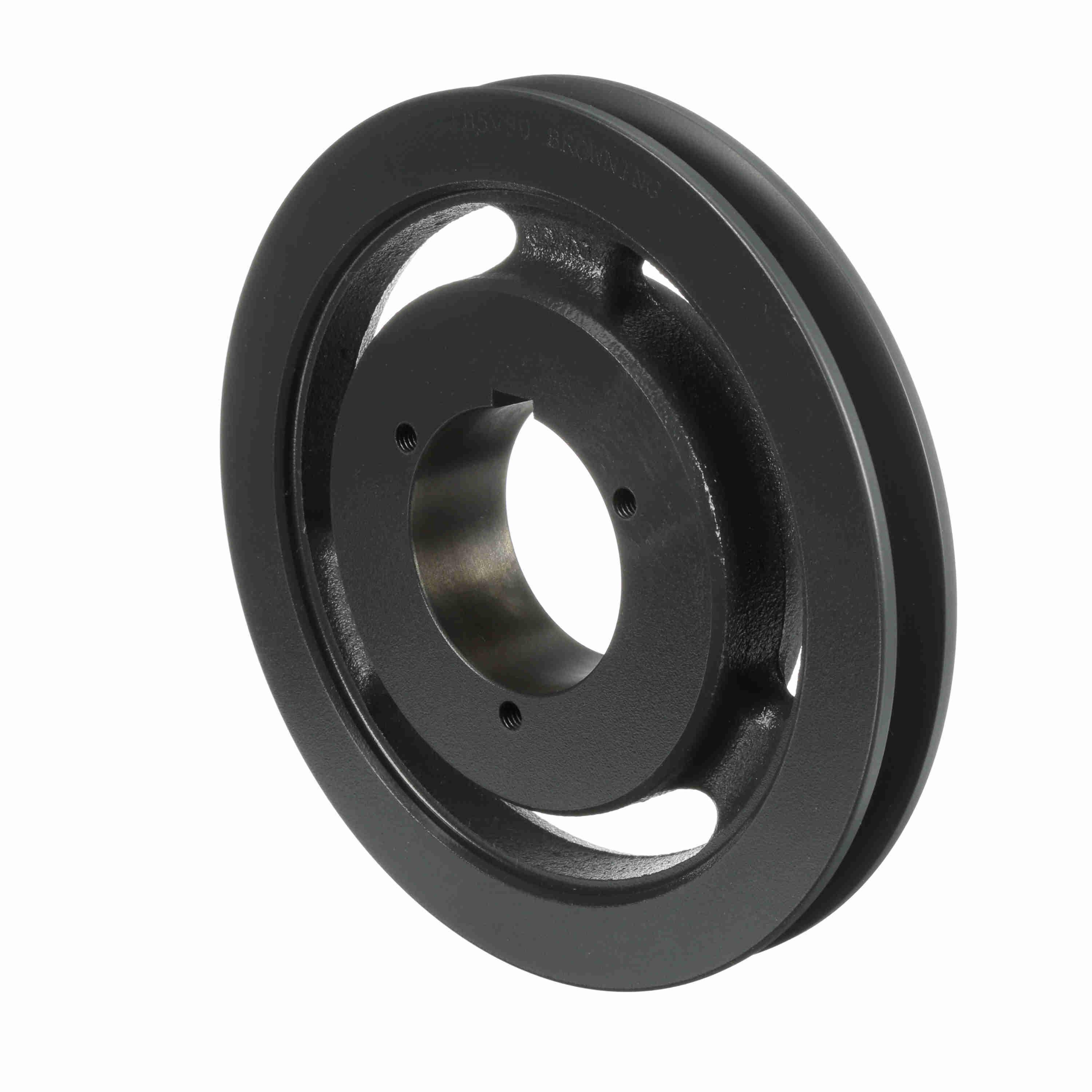

Browning® Classical Gripbelt® 3693744 B5V® Arm Type 2 Single Groove Sheave, Split Taper Bore, 1/2 to 2-7/16 in Dia Bore, 8.28 in OD, 7.8 in (A)/8.3 in (B)/8.1 in (BV) Dia Pitch, 1 in W Face
-
BrandBrowning®
-
UPC662289034192
-
Manufacturer Part Number3693744
-
CountryUSA
-
Face Width1 in
-
Bushing TypeB
-
Pitch Diameter7.8 in (A)/8.3 in (B)/8.1 in (BV)
-
MaterialCast Iron
-
TypeArm Type 2
-
SeriesB5V®
-
Hub Diameter3-11/16 in
-
Hub Projection63/64 in
-
Outside Diameter8.28 in
-
Bore Diameter1/2 to 2-7/16 in
-
Bore TypeSplit Taper
-
Overall Length2-5/16 in
-
Suitable For Use With4L/A, 5L/B and 5V Cross Section Belt
- Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material
- Highest torque carrying capacity in the Browning® bushing product line
- Double split barrel assures true concentricity
- Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
-
Alternative Part Number1B5V80
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
