Browning 1-GRV A OR B OR 5-V-BELT SHEAVES BRW 1-B-5-V-66

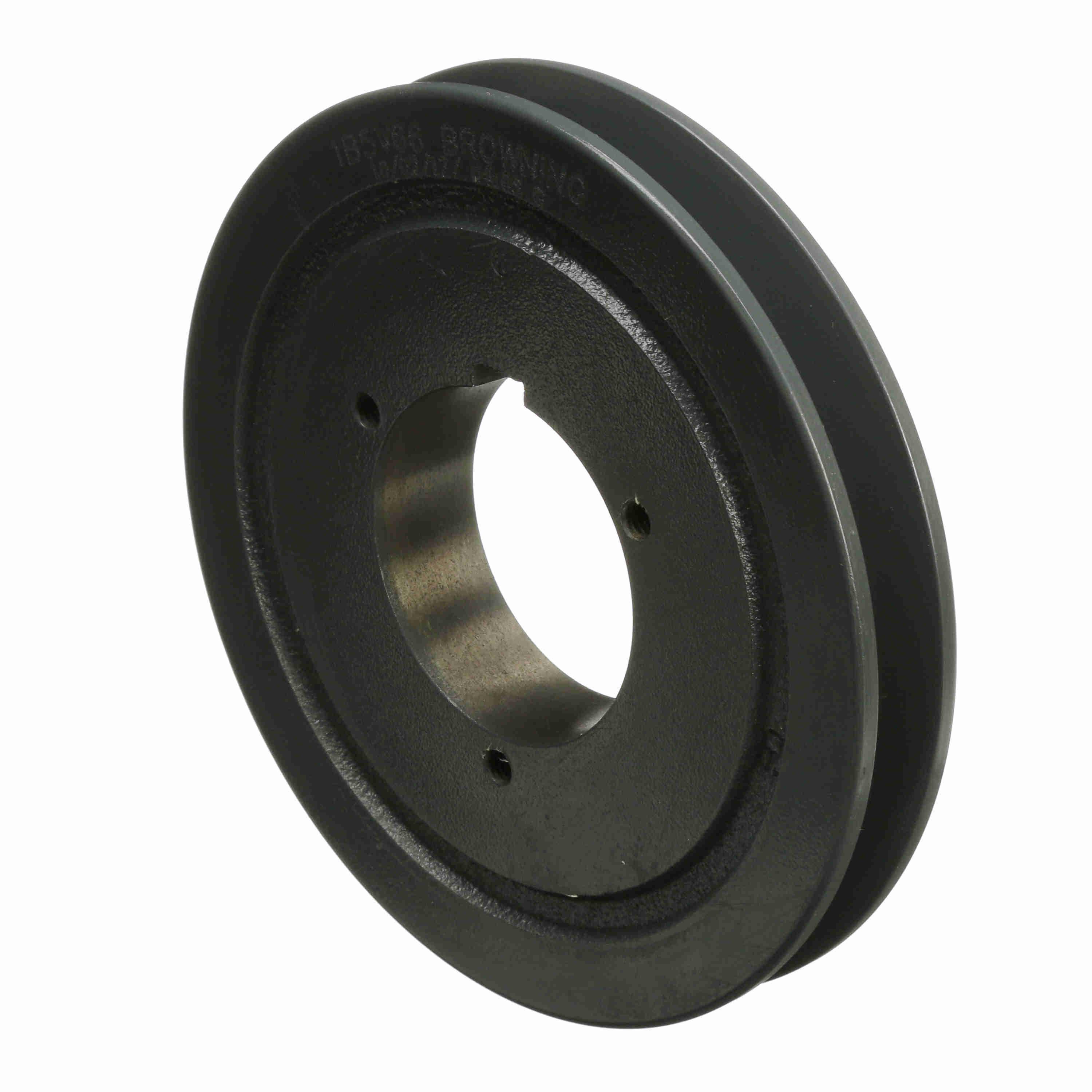

Browning® Classical Gripbelt® 3693702 B5V® Type 1 Web Single Groove Sheave, Split Taper Bore, 1/2 to 2-7/16 in Dia Bore, 6.88 in OD, 6.4 in (A)/6.9 in (B)/6.7 in (BV) Dia Pitch, 1 in W Face
-
BrandBrowning®
-
UPC662289034048
-
Manufacturer Part Number3693702
-
CountryUSA
-
Face Width1 in
-
Bushing TypeB
-
Pitch Diameter6.4 in (A)/6.9 in (B)/6.7 in (BV)
-
MaterialCast Iron
-
TypeType 1 Web
-
SeriesB5V®
-
Hub Diameter3-11/16 in
-
Hub Projection55/64 in
-
Outside Diameter6.88 in
-
Bore Diameter1/2 to 2-7/16 in
-
Bore TypeSplit Taper
-
Overall Length2-9/64 in
-
Suitable For Use With4L/A, 5L/B and 5V Cross Section Belt
- Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material
- Highest torque carrying capacity in the Browning® bushing product line
- Double split barrel assures true concentricity
- Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
-
Alternative Part Number1B5V66
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
