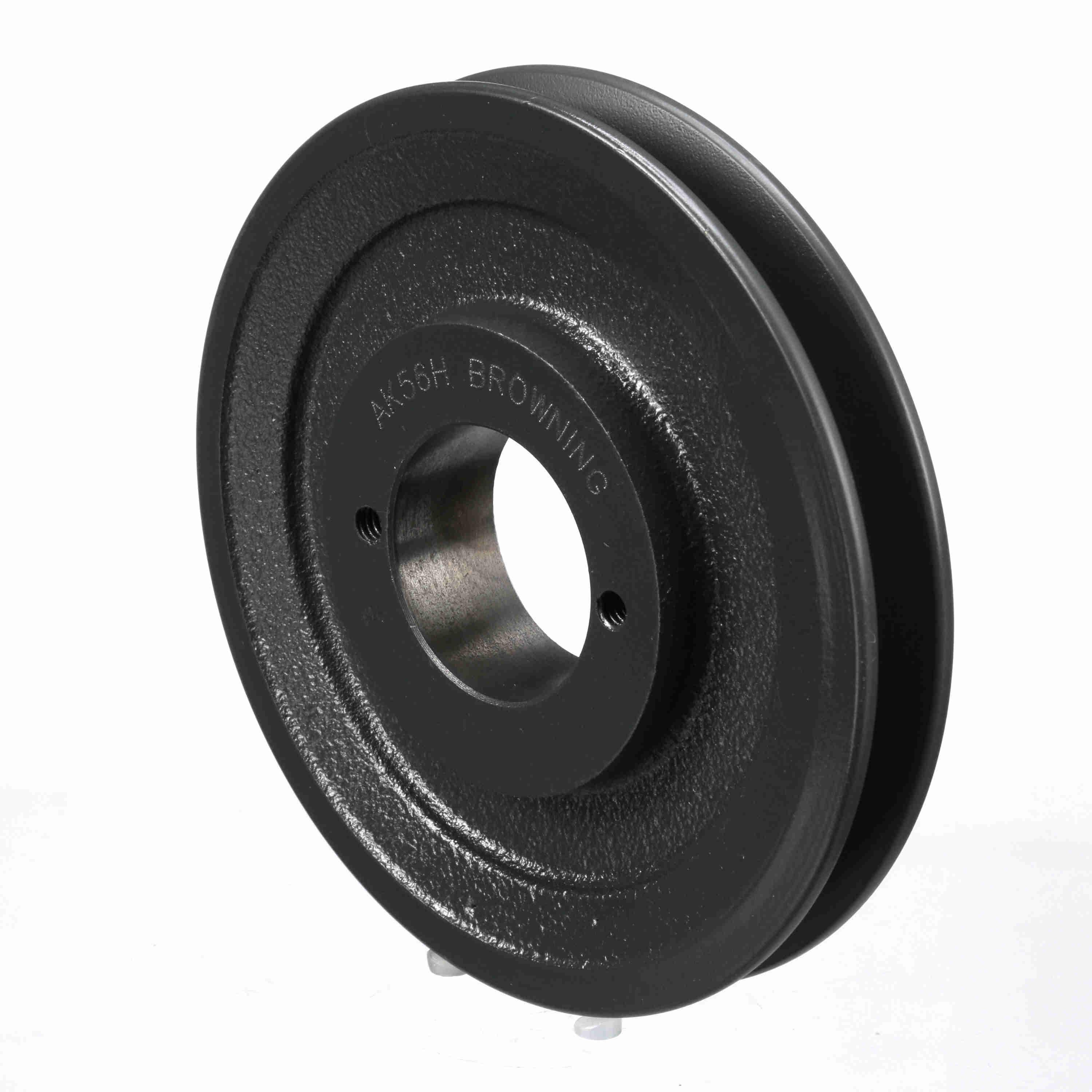

Browning® Classical Gripbelt® 1042175 AK Series Type 2 Single Groove Sheave, Split Taper Bore, 3/8 to 1-1/2 in Dia Bore, 5.45 in OD, 5.4 in (A)/4.86 in (3L) Dia Pitch, 3/4 in W Face
Browning® Classical Gripbelt® 1042175 AK Series Type 2 Single Groove Sheave, Split Taper Bore, 3/8 to 1-1/2 in Dia Bore, 5.45 in OD, 5.4 in (A)/4.86 in (3L) Dia Pitch, 3/4 in W Face
-
BrandBrowning®
-
UPC662289102020
-
Manufacturer Part Number1042175
-
CountryUSA
-
Face Width3/4 in
-
Bushing TypeH
-
Pitch Diameter5.4 in (A)/4.86 in (3L)
-
FinishGray Painted
-
MaterialCast Iron
-
TypeType 2
-
SeriesAK Series
-
Hub Projection19/32 in
-
Outside Diameter5.45 in
-
Bore Diameter3/8 to 1-1/2 in
-
Bore TypeSplit Taper
-
Overall Length1-1/2 in
-
Suitable For Use With4L/A and 3L Cross Section Belt
- Largest Selection of H Bushed sheaves of any other manufacturer - Browning offers bushed sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Twice balanced after assembly
- Tightened micro-finish on groove walls for increased belt life
- Split Taper® bushings are highest torque carrying capacity in the Browning® bushing product line
- Double split barrel assures true concentricity
- Largest Selection of H Bushed sheaves of any other manufacturer - Browning offers bushed sheaves in both A and B Combination (A/B) configuration
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part NumberAK56H
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
