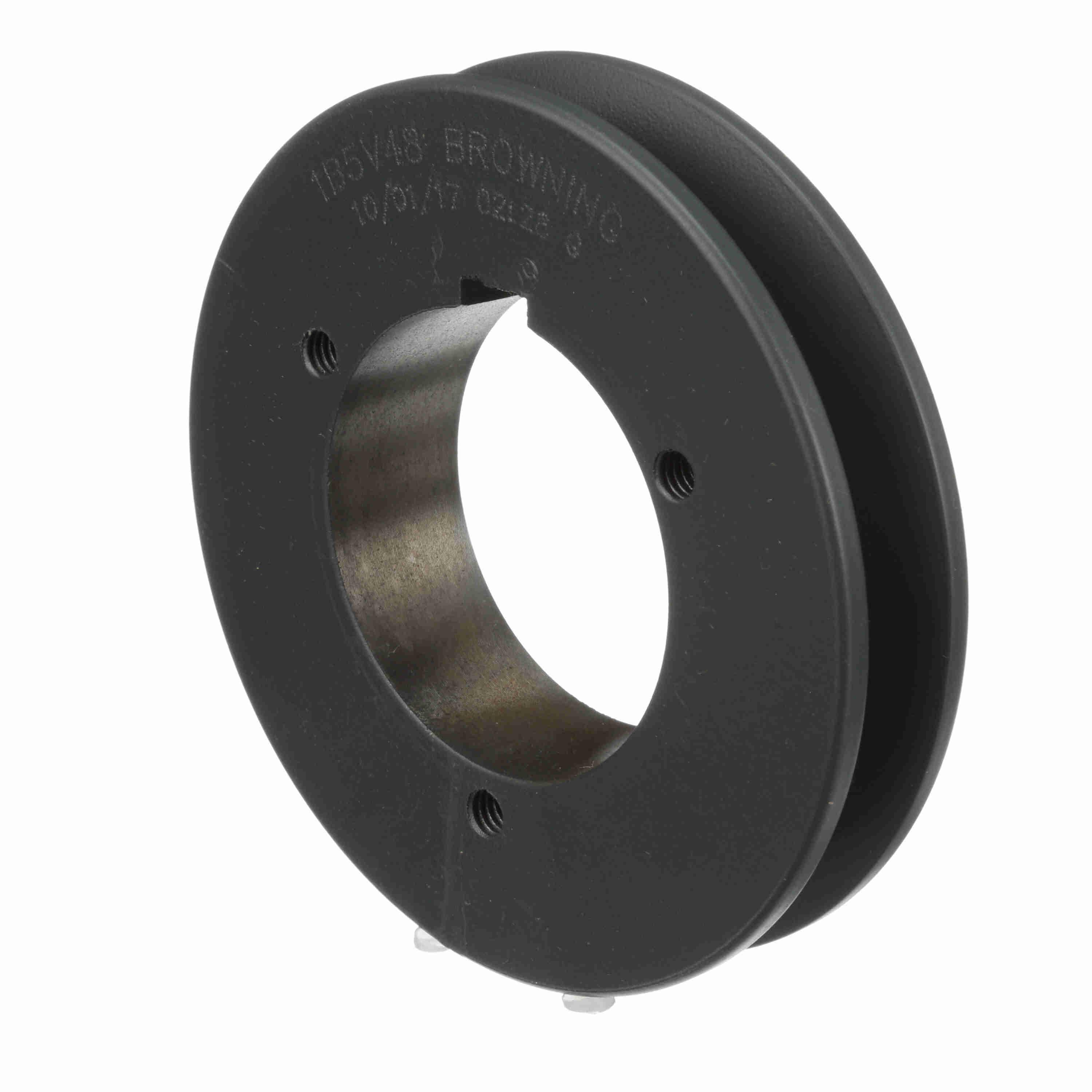

Browning® Classical Gripbelt® 3693611 B5V® Solid Type 1 Single Groove Sheave, Split Taper Bore, 1/2 to 2-7/16 in Dia Bore, 5.08 in OD, 4.6 in (A)/5.1 in (B)/4.9 in (BV) Dia Pitch, 1 in W Face

0 Ratings
$77.50
In Stock
SKU: BRW1B5V48
noimage_new

Browning® Classical Gripbelt® 3693611 B5V® Solid Type 1 Single Groove Sheave, Split Taper Bore, 1/2 to 2-7/16 in Dia Bore, 5.08 in OD, 4.6 in (A)/5.1 in (B)/4.9 in (BV) Dia Pitch, 1 in W Face

In Stock
HCI of Jackson: 4
HCI of Dyersburg: 0
HCI of Humboldt: 0
HCI of Union City: 0
HCI of Gallatin: 0
My Wishlist
Compare
Back to: Single Groove Sheaves
Main specs
  • Brand
    Browning®
  • UPC
    662289033751
  • Manufacturer Part Number
    3693611
  • Country
    USA
Specification
  • Face Width
    1 in
  • Bushing Type
    B
  • Pitch Diameter
    4.6 in (A)/5.1 in (B)/4.9 in (BV)
  • Material
    Cast Iron
  • Type
    Solid Type 1
  • Series
    B5V®
  • Hub Diameter
    3-11/16 in
  • Hub Projection
    55/64 in
  • Outside Diameter
    5.08 in
  • Bore Diameter
    1/2 to 2-7/16 in
  • Bore Type
    Split Taper
  • Overall Length
    2-9/64 in
  • Suitable For Use With
    4L/A, 5L/B and 5V Cross Section Belt
Features
  • Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
  • Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
  • Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
  • New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material
  • Highest torque carrying capacity in the Browning® bushing product line
  • Double split barrel assures true concentricity
  • Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
  • Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
  • Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
  • New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material
  • Large Selection - MVP companion sheaves are offered in A/B, C, 5Vand 8V belt sections and from 3-10 grooves giving Browning the largest selection of MVP Companion Sheaves in the industry
  • Statically Balanced - All MVP companion sheaves are statically balanced to assure smooth, vibration free performance
  • VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore
  • The male section with threaded barrel has flat surfaces at 180 deg increments that allow a flat surface for the setscrew to mate with
  • When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed
Additional Information
  • Alternative Part Number
    1B5V48
  • UNSPSC
    24101610
  • Package Description
    EACH
  • Warranty
    1 Year
