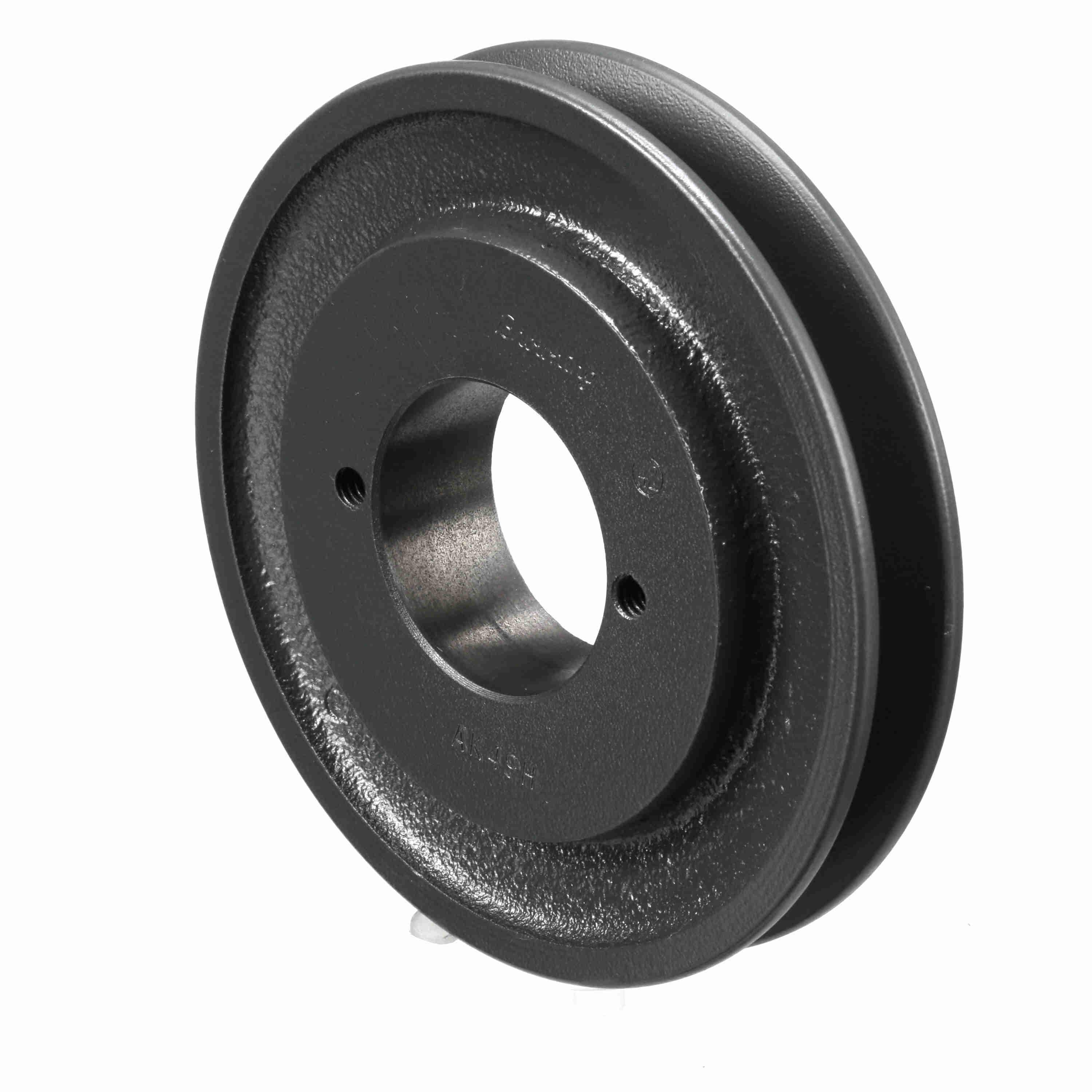

Browning® Classical Gripbelt® 1042142 AK Series Type 2 Single Groove Sheave, Split Taper Bore, 3/8 to 1-1/2 in Dia Bore, 4-3/4 in OD, 4.7 in (A)/4.16 in (3L) Dia Pitch, 3/4 in W Face

0 Ratings
$40.50
In Stock
SKU: BRWAK49H
noimage_new

Browning® Classical Gripbelt® 1042142 AK Series Type 2 Single Groove Sheave, Split Taper Bore, 3/8 to 1-1/2 in Dia Bore, 4-3/4 in OD, 4.7 in (A)/4.16 in (3L) Dia Pitch, 3/4 in W Face

In Stock
HCI of Jackson: 1
HCI of Dyersburg: 0
HCI of Humboldt: 0
HCI of Union City: 0
HCI of Gallatin: 0
My Wishlist
Compare
Back to: Single Groove Sheaves
Main specs
  • Brand
    Browning®
  • UPC
    662289142071
  • Manufacturer Part Number
    1042142
  • Country
    USA
Specification
  • Face Width
    3/4 in
  • Bushing Type
    H
  • Pitch Diameter
    4.7 in (A)/4.16 in (3L)
  • Finish
    Gray Painted
  • Material
    Cast Iron
  • Type
    Type 2
  • Series
    AK Series
  • Hub Projection
    19/32 in
  • Outside Diameter
    4-3/4 in
  • Bore Diameter
    3/8 to 1-1/2 in
  • Bore Type
    Split Taper
  • Overall Length
    1-1/2 in
  • Suitable For Use With
    4L/A and 3L Cross Section Belt
Features
  • Largest Selection of H Bushed sheaves of any other manufacturer - Browning offers bushed sheaves in both A and B Combination (A/B) configuration
  • 1 and 2 Grooves are available to meet any fractional horsepower requirement
  • Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
  • Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
  • Twice balanced after assembly
  • Tightened micro-finish on groove walls for increased belt life
  • Split Taper® bushings are highest torque carrying capacity in the Browning® bushing product line
  • Double split barrel assures true concentricity
  • 1 and 2 Grooves are available to meet any fractional horsepower requirement
  • Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
  • Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
  • Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
  • Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
Additional Information
  • Alternative Part Number
    AK49H
  • UNSPSC
    24101610
  • Package Description
    EACH
  • Warranty
    1 Year
