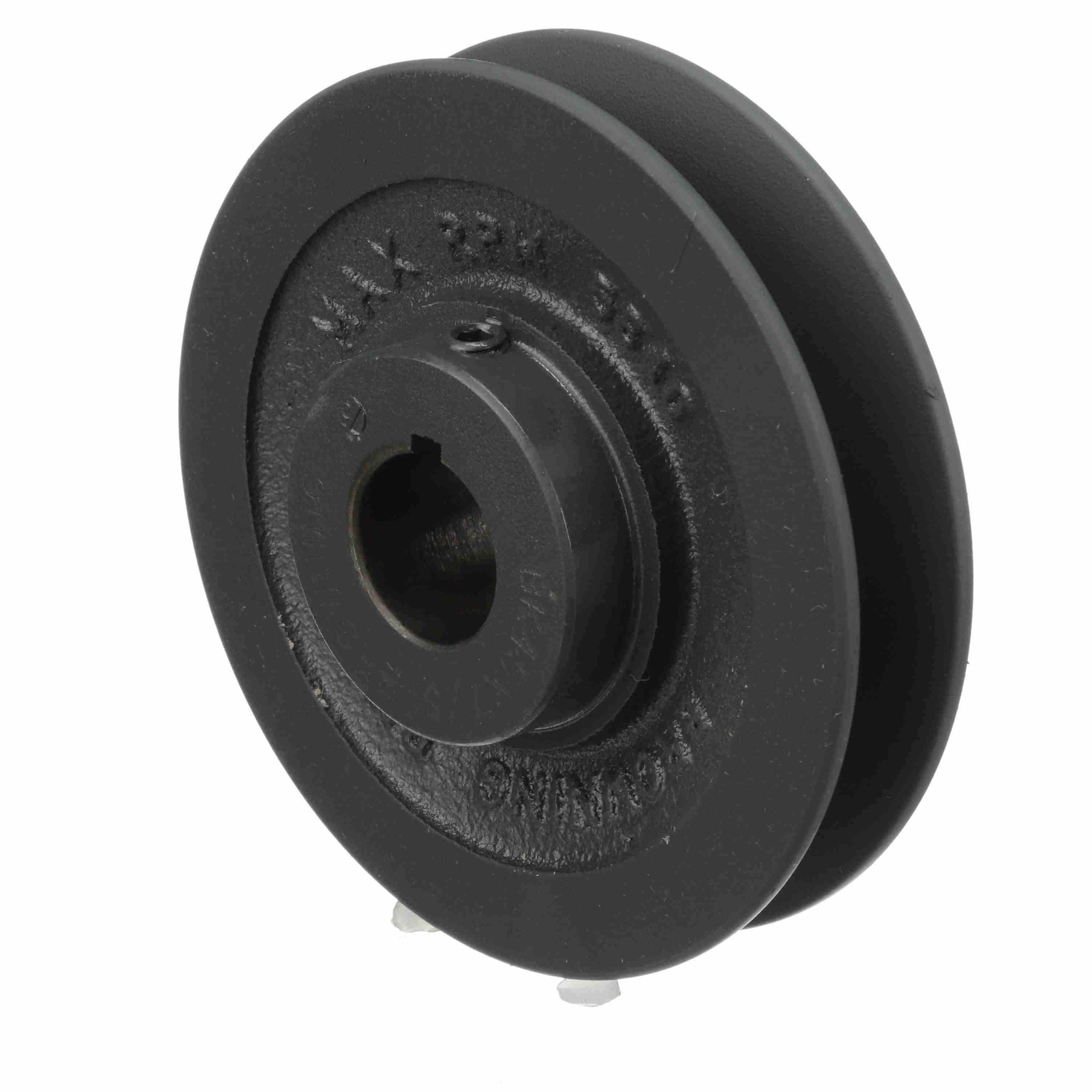

Browning® Classical Gripbelt® 1028281 BK Series Type 2 Single Groove Sheave, Finished Bore, 7/8 in Dia Bore, 4-1/4 in OD, 3.7 in (A)/4.2 in (B) Dia Pitch, 7/8 in W Face
Browning® Classical Gripbelt® 1028281 BK Series Type 2 Single Groove Sheave, Finished Bore, 7/8 in Dia Bore, 4-1/4 in OD, 3.7 in (A)/4.2 in (B) Dia Pitch, 7/8 in W Face
-
BrandBrowning®
-
UPC662289177950
-
Manufacturer Part Number1028281
-
CountryUSA
-
Face Width7/8 in
-
Pitch Diameter3.7 in (A)/4.2 in (B)
-
MaterialCast Iron
-
TypeType 2
-
SeriesBK Series
-
Hub Projection13/32 in
-
Outside Diameter4-1/4 in
-
Bore Diameter7/8 in
-
Bore TypeFinished
-
Overall Length1-9/32 in
-
Suitable For Use With4L/A and 5L/B Cross Section Belt
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Tighter tolerances by 25%
- Twice balanced after assembly
- Tightened micro-finish on groove walls for increased belt life
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part NumberBK45X7/8
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
