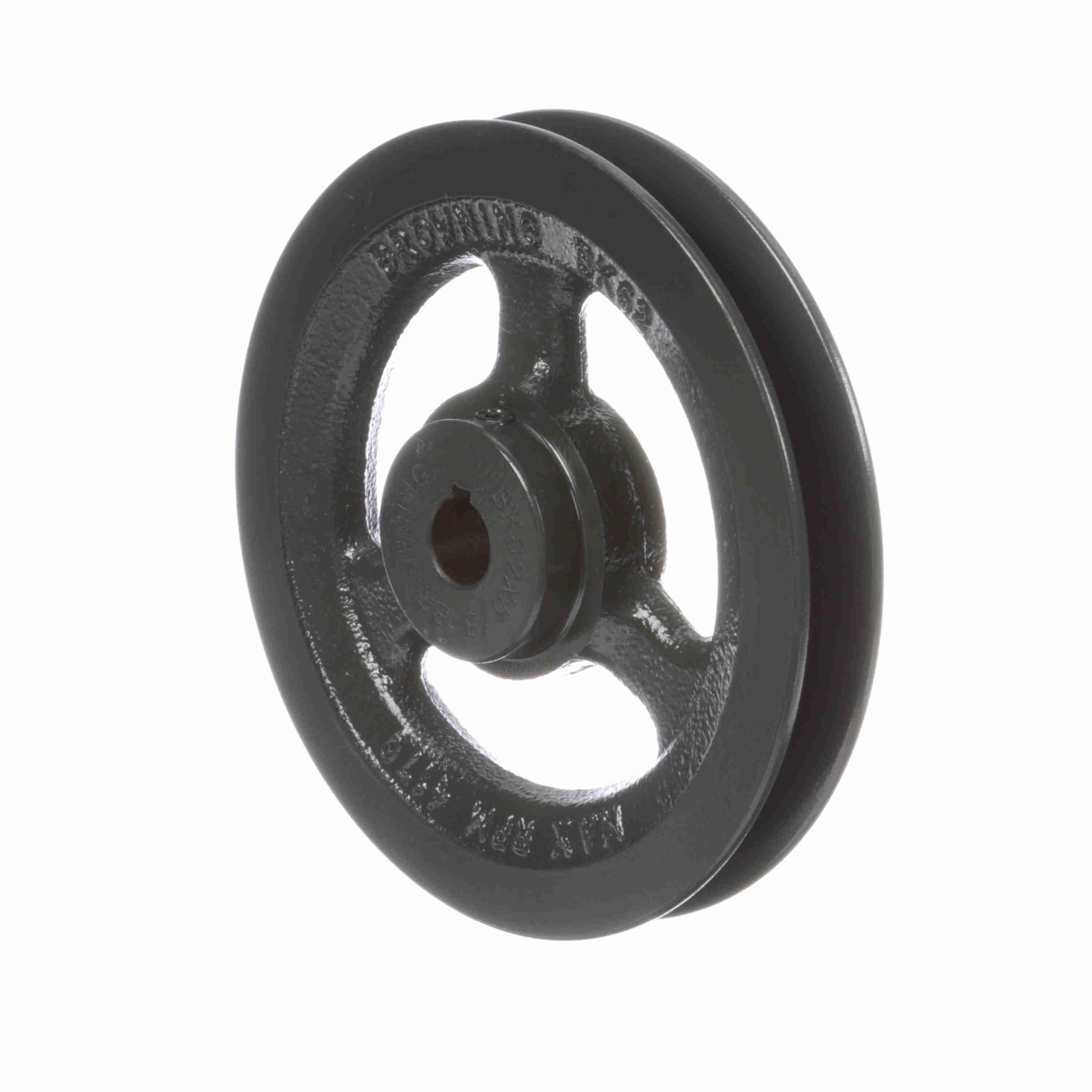

Browning® Classical Gripbelt® 1028737 BK Series Type 3 Single Groove Sheave, Finished Bore, 5/8 in Dia Bore, 5.95 in OD, 5.4 in (A)/5.9 in (B) Dia Pitch, 7/8 in W Face
Browning® Classical Gripbelt® 1028737 BK Series Type 3 Single Groove Sheave, Finished Bore, 5/8 in Dia Bore, 5.95 in OD, 5.4 in (A)/5.9 in (B) Dia Pitch, 7/8 in W Face
-
BrandBrowning®
-
UPC662289268344
-
Manufacturer Part Number1028737
-
CountryUSA
-
Face Width7/8 in
-
Pitch Diameter5.4 in (A)/5.9 in (B)
-
MaterialCast Iron
-
TypeType 3
-
SeriesBK Series
-
Hub Projection13/32 in
-
Outside Diameter5.95 in
-
Bore Diameter5/8 in
-
Bore TypeFinished
-
Overall Length1-9/32 in
-
Suitable For Use With4L/A and 5L/B Cross Section Belt
- External rib design provides cooling for longer belt life
- Increases wall thickness by 30%
- Increased hub diameter by 20%
- Tighter tolerances by 25%
- Twice balanced after assembly
- Tightened micro-finish on groove walls for increased belt life
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part NumberBK62X5/8
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
